Material: A356T6 Aluminum
Bolts: 2024 AL alloy
for galvanized GR5 bolts/hardware add suffix "GH"
For Stainless steel bolts/hardware add suffix "SSH"
Other options available
Notes
1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. Other sizes available on request
3. Pad Configurations
2N = 2-HOLE NEMA PAD
4N = 3X3 4-HOLE NEMA PAD
4N4 = 4X4 4-HOLE NEMA PAD
4. FOR ANGLED PAD ADD SUFFIX "LXX" (XX = ANGLE OF PAD )

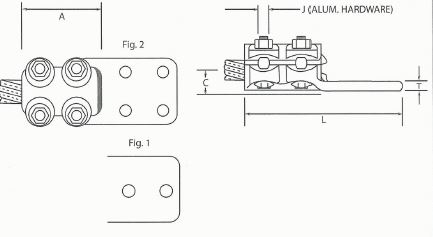

| PART # | Cable Range AAC | Cable Range | L | A | C | T | PAD WIDTH | J |
| IN | IN | IN | IN | IN | IN | IN | ||
| ABC0000P2N | #4-4/0 | 0.232 - 0.522 | 6 | 3 | 5/8 | 3/8 | 2 | 1/2 |
| ABC0000P3N4 | #4-4/0 | 0.232 - 0.522 | 6 | 3 | 5/8 | 3/8 | 3 | 1/2 |
| ABC0000P4N4 | #4-4/0 | 0.232 - 0.522 | 6 | 3 | 5/8 | 3/8 | 4 | 1/2 |
| ABC350P2N | 4/0-350 | 0.522 - 0.681 | 6 | 3 | 3/4 | 3/8 | 2 | 1/2 |
| ABC350P3N4 | 4/0-350 | 0.522 - 0.681 | 6 | 3 | 3/4 | 3/8 | 3 | 1/2 |
| ABC350P4N4 | 4/0-350 | 0.522 - 0.681 | 6 | 3 | 3/4 | 3/8 | 4 | 1/2 |
| ABC600P2N | 350-600 | 0.681 - 0.891 | 6 1/4 | 3 1/2 | 1 | 7/16 | 2 | 1/2 |
| ABC600P3N4 | 350-600 | 0.681 - 0.891 | 6 1/4 | 3 1/2 | 1 | 7/16 | 3 | 1/2 |
| ABC600P4N4 | 350-600 | 0.681 - 0.891 | 6.25 | 3 1/2 | 1 | 7/16 | 4 | 1/2 |
| ABC1000P2N | 600-1000 | 0.891 - 1.152 | 6 1/2 | 3 3/4 | 1 | 1/2 | 2 | 1/2 |
| ABC1000P3N4 | 600-1000 | 0.891 - 1.152 | 6 1/2 | 3 3/4 | 1 | 1/2 | 3 | 1/2 |
| ABC1000P4N4 | 600-1000 | 0.891 - 1.152 | 6.5 | 3 3/4 | 1 | 1/2 | 4 | 1/2 |
| ABC1500P2N | 1000-1500 | 1.152 - 1.412 | 7 1/4 | 4 1/4 | 7/8 | 3/4 | 2 | 1/2 |
| ABC1500P3N4 | 1000-1500 | 1.152 - 1.412 | 7 1/4 | 4 1/4 | 7/8 | 3/4 | 3 | 1/2 |
| ABC1500P4N4 | 1000-1500 | 1.152 - 1.412 | 7.25 | 4 1/4 | 7/8 | 3/4 | 4 | 1/2 |
| ABC2000P2N | 1500-2000 | 1.412 - 1.631 | 8 1/4 | 4 1/2 | 1 | 1 | 2 | 5/8 |
| ABC2000P3N4 | 1500-2000 | 1.412 - 1.631 | 8 1/4 | 4 1/2 | 1 | 1 | 3 | 5/8 |
| ABC2000P4N4 | 1500-2000 | 1.412 - 1.631 | 8.25 | 4 1/2 | 1 | 1 | 4 | 5/8 |
| ABC3000P2N | 2000-3000 | 1.631 - 1.996 | 9 1/2 | 5 1/2 | 1 1/8 | 1 | 2 | 5/8 |
| ABC3000P3N4 | 2000-3000 | 1.631 - 1.996 | 9 1/2 | 5 1/2 | 1 1/8 | 1 | 3 | 5/8 |
| ABC3000P4N4 | 2000-3000 | 1.631 - 1.996 | 9.5 | 5 1/2 | 1 1/8 | 1 | 4 | 5/8 |
| ABC4000P2N | 3000-4000 | 2.31 - 1.996 | 9 1/2 | 5 1/2 | 1 1/8 | 1 | 2 | 5/8 |
| ABC4000P3N4 | 3000-4000 | 2.31 - 1.996 | 9 1/2 | 5 1/2 | 1 1/8 | 1 | 3 | 5/8 |
| ABC4000P4N4 | 3000-4000 | 2.31 - 1.996 | 9.5 | 5 1/2 | 1 1/8 | 1 | 4 | 5/8 |
