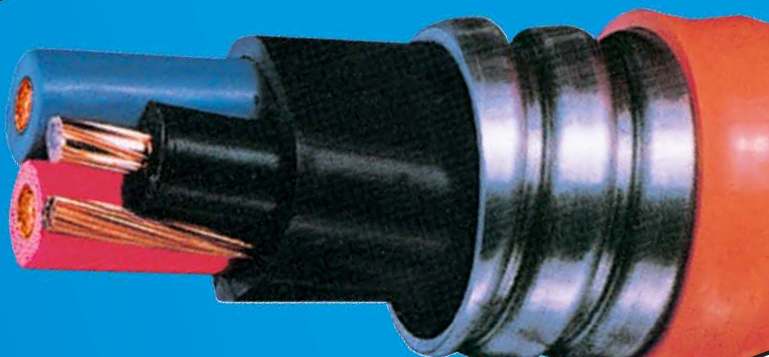

3C TECK90(XLPE) -40c 5KV UNshielded

Search





 TECK90 Cables are intended for use in various primary and secondary industries, including chemical processing plants, refineries and general factory environments.


STANDARDS


National : CSA C22.2 N° 131


DESCRIPTION


Even in the most demanding industrial and resource industry applications, TECK90 cables have proven to have a superior service and maintenance record.

TECK90 Cables utilize low acid gas, low flame spread PVC jacket compounds to ensure maximum safety to personnel and equipment in the event of fire.

Applications

⦾ TECK90 Cables, originally developed for use in Canadian mines, are flexible, resistant to mechanical abuse, corrosion resistant, compact and reliable. They are suitable for a wide range of applications, including ALL hazardous locations - Class I, Division 1 and 2; Class II, Division 1 and 2; and Class III.

⦾ Industries such as pulp and paper, chemical, petroleum and other primary and secondary manufacturing industries have used TECK90 Cables, particularly in areas where cables are subject to the risk of mechanical damage and chemical attack.

⦾ Commercial applications for TECK90 Cables include apartment buildings and commercial complexes.

⦾ TECK90 Cables can be relocated easily because they are rugged and flexible. They can be used in both dry and wet locations in open wiring, in ventilated, non-ventilated and ladder-type cable troughs, in ventilated flexible cableways, and for direct burial.

⦾ TECK90 Cables are also suitable for service entrance installations - above and below ground.

Highlights

TECK90 Cables are:

⦾ Available from stock
⦾ Versatile
⦾ Flexible
⦾ Resistant to Mechanical Abuse and Corrosion
⦾ Compact and Reliable
⦾ "HL" and "FT4" Rated per CSA
⦾ 90°C to -40°C
⦾ Low Acid Gas (AG14)
⦾ Inner and outer jackets are sunlight resistant
⦾ LEAD FREE
⦾ RoHS compliant

Marking and Identification

The inner jackets of TECK90 cables are printed: SUN RES.

The outer jackets of TECK90 cables are printed: (mon/year) TECK90 XLPE (-40°C) CSA LL19376 F HL FT4 AG14 SUN RES along with conductor size, number of conductors and sequential metre marking.

Conductor Identification


⦾ Red, Black, Blue
⦾ 14 AWG to 2 AWG: Coloured Insulation
⦾ 1 AWG to 500 kcmil: Coloured Stripes



3C TECK90 (XLPE) 5 KV UNSHIELDED
   Conductor    Size Insulation Thickness   Inner   Jacket Thickness Nominal Diameters   Approx.  Net Cable   Weight with   Aluminum Armour* Approx.    Copper  Content


  Inner     Jacket  Armour Outer   Covering

Power AWG or kcmil Bonding  AWG inches mm inches mm inches mm inches mm inches mm lb/kft kg/km kg/km


8 10 0.09 2.29 0.06 1.52 0.931 23.64 1.206 30.63 1.315 33.4 721 1073 281
6 8 0.09 2.29 0.08 2.03 1.051 26.69 1.326 33.68 1.435 36.45 872 1298 446
4 8 0.09 2.29 0.08 2.03 1.146 29.11 1.421 36.09 1.53 38.86 1155 1720 665

3 6 0.09 2.29 0.08 2.03 1.2 30.49 1.475 37.46 1.584 40.23 1322 1968 866
2 6 0.09 2.29 0.08 2.03 1.266 32.15 1.541 39.14 1.67 42.42 1503 2237 1057
1 6 0.09 2.29 0.08 2.03 1.335 33.91 1.61 40.89 1.739 44.17 1732 2578 1304

1/0 6 0.09 2.29 0.08 2.03 1.415 35.95 1.69 42.93 1.819 46.2 2013 2997 1609
2/0  6 0.09 2.29 0.08 2.03 1.5 38.1 1.775 45.09 1.904 48.36 2339 3481 1997
3/0  4 0.09 2.29 0.08 2.03 1.606 40.8 1.956 49.68 2.09 53.09 2929 4359 2558
4/0  4 0.09 2.29 0.08 2.03 1.724 43.79 2.074 52.68 2.208 56.08 3544 5274 3173

250 4 0.09 2.29 0.11 2.79 1.882 47.8 2.232 56.69 2.366 60.1 4032 6001 3716
300 4 0.09 2.29 0.11 2.79 1.99 50.55 2.34 59.44 2.474 62.84 4605 6852 4414
350 3 0.09 2.29 0.11 2.79 2.094 53.19 2.444 62.08 2.578 65.48 5242 7800 5171

400 3 0.09 2.29 0.11 2.79 2.188 55.56 2.538 64.47 2.672 67.87 5852 8709 5883
500 3 0.09 2.29 0.11 2.79 2.355 59.81 2.705 68.71 2.839 72.11 7053 10495 7278


3C TECK90 (XLPE) 5 KV FITTING SIZES AND AMPACITY
Conductor Size  Ampacity (A)   30°C Ambient   (Notes 2, 3) Fittings

Power AWG or kcmil Bonding AWG Appleton T & B CMP Products Cooper Crouse-Hinds
60ºC 75ºC 90ºC
8 10 40 50 55 TMC100138 10469/ST100-469 TMC125A TECK100-7
6 8 55 65 75 TMC125163 10470/ST125-470 TMC125A TECK125-8
4 8 70 85 95 TMC125163 10470/ST125-550 TMC150A TECK125-8

3 6 85 100 115 TMC125163 10550/ST125-550 TMC150A TECK125-8
2 6 95 115 130 TMC125188 10471/ST125-471 TMC150A TECK125-10
1 6 110 130 145 TMC125188 10471/ST150-472 TMC200SA TECK125-10

1/0  6 125 150 170 TMC125188 10472/ST150-472 TMC200SA TECK125-10
2/0  6 145 175 195 TMC150200 10472/ST150-472 TMC200SA TECK150-11
3/0  4 165 200 225 TMC150220 10551/ST200-551 TMC200A TECK150-12
4/0  4 195 230 260 TMC200238 10474/ST200-474 TMC250SA TECK150-12

250 4 215 255 290 TMC200275 10475/ST200-475  TMC250SA TECK200-15
300 4 240 285 320 TMC200275 10552/ST200-475 TMC250A TECK200-15
350 3 260 310 350 TMC200275 10553/ST250-477 TMC250A TECK200-16

400 3 280 335 380 TMC200275 10553/ST250-478 TMC300A TECK200-16
500 3 320 380 430 TMC300A 10477/ST300-479 TMC300A TECK300-19




Notes:
1) Where stated, “nominal” and “approximate” values are provided for information purposes only and
are subject to standard manufacturing tolerances.
2) Based on CEC Table 2, for not more than 3 current carrying conductors in a cable or raceway.
3) The maximum conductor temperature (used to determine the maximum conductor ampacity) shall
be based on the lowest temperature rating of the electrical equipment, any wire connector, or
cable (CEC Rule 4-006).
