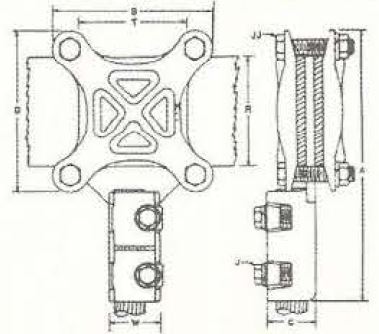

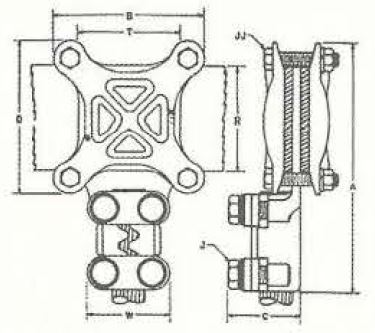

| BBTBC | BB2TBC |
| TAP ADAPTER, BAR TO CABLE/TUBE | TAP ADAPTER, BAR TO CABLE |
Notes
1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. Other sizes available on request
3. Standard spacing between clamps 3/4", specify if greater spacing is required
| Cat. No. | CABLE SIZE1 | BUS BARS WIDTH | A | B | C | D | J | JJ | W | ||
| Min. | Max. | I.P.S | R/T | In | In | In | In | In | In | In | |
| BB2TB33C0000 | 2/0 | 4/0 | 3 | 8 1/6 | 4 3/8 | 1 | 4 3/8 | 5/16 | 3/8 | 1 1/16 | |
| BB2TB44C0000 | 2/0 | 4/0 | 4 | 7 13/16 | 5 5/8 | 1 | 5 5/8 | 5/16 | 1/2 | 1 1/16 | |
| BB2TB33C350 | 4/0 | 350 | 3 | 7 1/8 | 4 3/8 | 1 1/4 | 4 3/8 | 3/8 | 3/8 | 1 1/4 | |
| BB2TB44C350 | 4/0 | 350 | 4 | 8 1/8 | 5 5/8 | 1 1/4 | 5 5/8 | 3/8 | 1/2 | 1 1/4 | |
| BB2TB33C500 | 350 | 500 | 3 | 7 5/8 | 4 3/8 | 1 7/16 | 4 3/8 | 3/8 | 3/8 | 1 7/16 | |
| BB2TB44C500 | 350 | 500 | 4 | 8 5/8 | 5 5/8 | 1 7/16 | 5 5/8 | 3/8 | 1/2 | 1 7/16 | |
| BB2TB33C750 | 500 | 750 | 3 | 8 1/8 | 4 3/8 | 1 3/4 | 4 3/8 | 7/16 | 3/8 | 1 11/16 | |
| BB2TB44C750 | 500 | 750 | 4 | 9 1/8 | 5 5/8 | 1 3/4 | 5 5/8 | 7/16 | 1/2 | 1 11/16 | |
| BB2TB33C1000 | 750 | 1000 | 3 | 8 13/16 | 4 3/8 | 1 15/16 | 4 3/8 | 1/2 | 3/8 | 1 15/16 | |
| BB2TB44C1000 | 750 | 1000 | 4 | 9 1/16 | 5 5/8 | 1 15/16 | 5 5/8 | 1/2 | 1/2 | 1 15/16 | |
| BBTB33C350 | 2/0 | 350 | 3/8 | 3 | 7 3/16 | 4 3/8 | 1 | 4 3/8 | 1/2 | 3/8 | 2 3/8 |
| BBTB44C350 | 2/0 | 350 | 3/8 | 4 | 8 3/16 | 5 5/8 | 1 | 5 5/8 | 1/2 | 1/2 | 2 3/8 |
| BBTB33C600 | 350 | 600 | 1/2 | 3 | 7 3/16 | 4 3/8 | 1 1/4 | 4 3/8 | 1/2 | 3/8 | 2 7/16 |
| BBTB44C600 | 350 | 600 | 1/2 | 4 | 8 3/16 | 5 5/8 | 1 1/4 | 5 5/8 | 1/2 | 1/2 | 2 7/16 |
| BBTB33C1000 | 600 | 1000 | 3/4 | 3 | 7 3/8 | 4 3/8 | 1 7/16 | 4 3/8 | 1/2 | 3/8 | 2 9/16 |
| BBTB44C1000 | 600 | 1000 | 3/4 | 4 | 8 3/8 | 5 5/8 | 1 7/16 | 5 5/8 | 1/2 | 1/2 | 2 9/16 |
| BBTB33C1500 | 1000 | 1500 | 1 | 3 | 7 9/16 | 4 3/8 | 1 3/4 | 4 3/8 | 1/2 | 3/8 | 2 13/16 |
| BBTB44C1500 | 1000 | 1500 | 1 | 4 | 8 13/15 | 5 5/8 | 1 3/4 | 5 5/8 | 1/2 | 1/2 | 2 13/16 |
| BBTB33C2000 | 1500 | 2000 | 1 1/4 | 3 | 7 3/4 | 4 3/8 | 1 15/16 | 4 3/8 | 1/2 | 3/8 | 3 1/16 |
| BBTB44C2000 | 1500 | 2000 | 1 1/4 | 4 | 9 | 5 5/8 | 1 15/16 | 5 5/8 | 1/2 | 1/2 | 3 1/16 |
