AAC,ACSR,and AAAC service Drop Triplex
Product Description

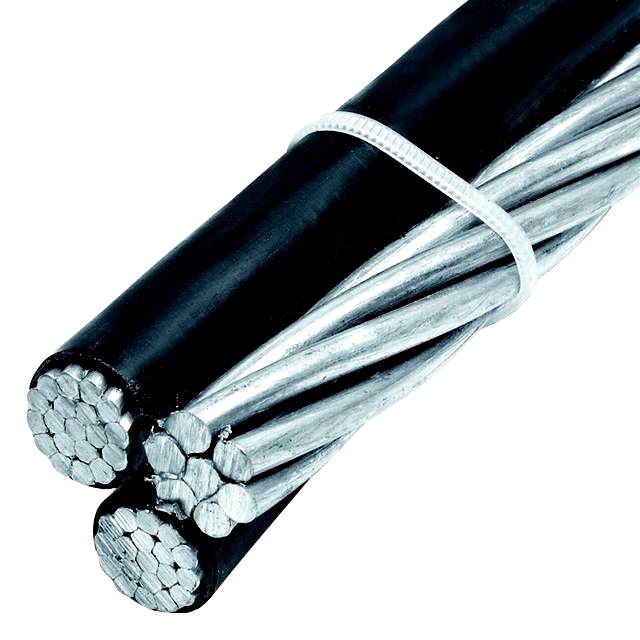

Two stranded all aluminum conductors covered with HMW polyethylene or XLP twisted around a bare stranded aluminum conductor.
Application
Used in the overhead transmission of power from pole to building weatherhead.
Specification Data
ASTM B-230 Aluminum, 1350-H19 wire for electrical purposes
ASTM B-231 Concentric-lay-stranded aluminum 1350 conductors
ASTM B-232 Concentric-lay-stranded, aluminum conductors,coated-steel reinforced (ACSR)
ASTM D-1248 Polyethelene plastics molding and extrusion materials
ANSI C-8.35 Specifications for weather-resistant polyethylene-covered wire and cable
ICEA S-61-10-2
NEMA Standards publication thermoplastic insulated wire and
PUB NO. Cable for the transmission and distribution of electrical
WC 5 energy
Product Data
AAC Neutral-Messenger
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight | Allowable Ampacities+ | |||||||||
| Size (AWG) | Stranding | Covering Thickness (mils.) | Size (AWG) | Stranding | Rated Strength | POLY | XLP | POLY | XLP | ||||
| lbs. | Kn | lbs./ 1000ft. | Kg /Km | lbs./ 1000ft. | Kg /Km | ||||||||
| Patella | 6 | 7 | 45 | 6 | 7 | 563 | 2.51 | 103 | 153 | 103 | 153 | 70 | 85 |
| Oyster | 4 | 7 | 45 | 4 | 7 | 881 | 3.92 | 156 | 232 | 160 | 238 | 90 | 115 |
| Clam | 2 | 7 | 45 | 2 | 7 | 1350 | 6.01 | 232 | 345 | 238 | 354 | 120 | 150 |
| Murex | 1/0 | 7 | 60 | 1/0 | 7 | 1990 | 8.86 | 373 | 555 | 383 | 570 | 160 | 205 |
| Purpura | 1/0 | 19 | 60 | 1/0 | 7 | 1990 | 8.86 | 370 | 551 | 380 | 565 | 160 | 205 |
| Nassa | 2/0 | 7 | 60 | 2/0 | 7 | 2510 | 11.17 | 461 | 686 | 472 | 702 | 185 | 235 |
| Trophon | 2/0 | 19 | 60 | 2/0 | 7 | 2510 | 11.17 | 456 | 679 | 467 | 695 | 185 | 235 |
| Melita | 3/0 | 19 | 60 | 3/0 | 19 | 3310 | 14.73 | 562 | 836 | 562 | 836 | 215 | 275 |
| Portunus | 4/0 | 19 | 60 | 4/0 | 19 | 4020 | 17.89 | 696 | 1036 | 696 | 1036 | 245 | 315 |
| Nannynose | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 27.35 | 1118 | 1664 | 1118 | 1664 | 325 | 420 |
ACSR Neutral-Messenger
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight | Allowable Ampacities+ | |||||||||
| Size (AWG) | Stranding | Covering Thickness (mils.) | Size (AWG) | Stranding | Rated Strength | POLY | XLP | POLY | XLP | ||||
| lbs. | Kn | lbs./ 1000ft. | Kg /Km | lbs./ 1000ft. | Kg /Km | ||||||||
| Paludina | 6 | 1 | 45 | 6 | 6/1 | 1190 | 5.30 | 109 | 162.19 | 110 | 163.68 | 70 | 85 |
| Voluta | 6 | 7 | 45 | 6 | 6/1 | 1190 | 5.30 | 116 | 172.61 | 118 | 175.58 | 70 | 85 |
| Scallop | 4 | 1 | 45 | 6 | 6/1 | 1190 | 5.30 | 143 | 212.78 | 146 | 217.25 | 90 | 115 |
| Whelk | 4 | 1 | 45 | 4 | 6/1 | 1860 | 8.28 | 165 | 245.52 | 169 | 251.47 | 90 | 115 |
| Strombus | 4 | 7 | 45 | 6 | 6/1 | 1190 | 5.30 | 156 | 232.13 | 160 | 238.08 | 90 | 115 |
| Periwinkle | 4 | 7 | 45 | 4 | 6/1 | 1860 | 8.28 | 172 | 255.94 | 176 | 261.89 | 90 | 115 |
| Cockle | 2 | 7 | 45 | 4 | 6/1 | 1860 | 8.28 | 227 | 337.78 | 233 | 346.70 | 120 | 150 |
| Conch | 2 | 7 | 45 | 2 | 6/1 | 2850 | 12.68 | 261 | 388.37 | 267 | 397.30 | 120 | 150 |
| Janthina | 1/0 | 7 | 60 | 2 | 6/1 | 2853 | 12.70 | 365 | 543.12 | 376 | 559.49 | 160 | 205 |
| Neritina | 1/0 | 7 | 60 | 1/0 | 6/1 | 4380 | 19.49 | 419 | 623.47 | 430 | 639.84 | 160 | 205 |
| Ranella | 1/0 | 19 | 60 | 2 | 6/1 | 2853 | 12.70 | 362 | 538.66 | 372 | 553.54 | 160 | 205 |
| Cenia | 1/0 | 19 | 60 | 1/0 | 6/1 | 4380 | 19.49 | 416 | 619.01 | 428 | 636.86 | 160 | 205 |
| Cavolinia | 2/0 | 7 | 60 | 1 | 6/1 | 3550 | 15.80 | 451 | 671.09 | 462 | 687.46 | 185 | 235 |
| Runcina | 2/0 | 7 | 60 | 2/0 | 6/1 | 5310 | 23.63 | 519 | 772.27 | 530 | 788.64 | 185 | 235 |
| Clio | 2/0 | 19 | 60 | 1 | 6/1 | 3550 | 15.80 | 437 | 650.26 | 444 | 660.67 | 185 | 235 |
| Triton | 2/0 | 19 | 60 | 2/0 | 6/1 | 5310 | 23.63 | 514 | 764.83 | 526 | 782.69 | 185 | 235 |
| Aega | 3/0 | 19 | 60 | 1/0 | 6/1 | 4380 | 19.49 | 549 | 816.91 | 559 | 831.79 | 215 | 275 |
| Mursia | 3/0 | 19 | 60 | 3/0 | 6/1 | 6620 | 29.46 | 626 | 931.49 | 633 | 941.90 | 215 | 275 |
| Cerapus | 4/0 | 19 | 60 | 2/0 | 6/1 | 5310 | 23.63 | 670 | 996.96 | 678 | 1008.86 | 245 | 315 |
| Zuzara | 4/0 | 19 | 60 | 4/0 | 6/1 | 8350 | 37.16 | 777 | 1156.18 | 785 | 1168.08 | 245 | 315 |
| Limpet | 336.4 | 19 | 80 | 336.4 | 18/1 | 8680 | 38.63 | 1147 | 1706.74 | 1161 | 1727.57 | 325 | 420 |
6201 Alloy Neutral Messenger
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight | Allowable Ampacities+ | |||||||||
| Size (AWG) | Stranding | Covering Thickness (mils.) | ACSR Equivalent (AWG) | Stranding | Rated Strength | POLY | XLP | POLY | XLP | ||||
| lbs. | Kn | lbs./ 1000ft. | Kg /Km | lbs./ 1000ft. | Kg /Km | ||||||||
| Minex | 6 | 1 | 45 | 6 | 7 | 1110 | 4.94 | 101 | 150.29 | 102 | 151.78 | 70 | 85 |
| Hippa | 6 | 7 | 45 | 6 | 7 | 1110 | 4.94 | 105 | 156.24 | 107 | 159.22 | 70 | 85 |
| Artemia | 4 | 1 | 45 | 6 | 7 | 1110 | 4.94 | 132 | 196.42 | 134 | 199.39 | 90 | 115 |
| Prawn | 4 | 1 | 45 | 4 | 7 | 1760 | 7.83 | 152 | 226.18 | 154 | 229.15 | 90 | 115 |
| Crab | 4 | 7 | 45 | 6 | 7 | 1110 | 4.94 | 141 | 209.81 | 144 | 214.27 | 90 | 115 |
| Barnacle | 4 | 7 | 45 | 4 | 7 | 1760 | 7.83 | 157 | 233.62 | 160 | 238.08 | 90 | 115 |
| Solaster | 2 | 7 | 45 | 4 | 7 | 1760 | 7.83 | 212 | 315.46 | 216 | 321.41 | 120 | 150 |
| Shrimp | 2 | 7 | 45 | 2 | 7 | 2800 | 12.46 | 238 | 354.14 | 243 | 361.58 | 120 | 150 |
| Sandcrab | 1/0 | 7 | 60 | 2 | 7 | 2800 | 12.46 | 341 | 507.41 | 348 | 517.82 | 160 | 205 |
| Gammarus | 1/0 | 7 | 60 | 1/0 | 7 | 4460 | 19.85 | 384 | 571.39 | 390 | 580.32 | 160 | 205 |
| Echinus | 1/0 | 19 | 60 | 2 | 7 | 2800 | 12.46 | 336 | 499.97 | 342 | 508.90 | 160 | 205 |
| Leda | 1/0 | 19 | 60 | 1/0 | 7 | 4460 | 19.85 | 378 | 562.46 | 384 | 571.39 | 160 | 205 |
| Dungenese | 2/0 | 7 | 60 | 2/0 | 7 | 5390 | 23.99 | 474 | 705.31 | 481 | 715.73 | 185 | 235 |
| Cyclops | 2/0 | 19 | 60 | 2/0 | 7 | 5390 | 23.99 | 467 | 694.90 | 473 | 703.82 | 185 | 235 |
| Fulgar | 3/0 | 19 | 60 | 1/0 | 7 | 4460 | 19.85 | 518 | 770.78 | 525 | 781.20 | 215 | 275 |
| Flustra | 3/0 | 19 | 60 | 3/0 | 7 | 6790 | 30.22 | 588 | 874.94 | 596 | 886.85 | 215 | 275 |
| Arca | 4/0 | 19 | 60 | 2/0 | 7 | 5390 | 23.99 | 632 | 940.42 | 640 | 952.32 | 245 | 315 |
| Lepas | 4/0 | 19 | 60 | 4/0 | 7 | 8560 | 38.09 | 716 | 1065.41 | 725 | 1078.80 | 245 | 315 |
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.
*Manufactured with pride in DeKalb, IL USA.
