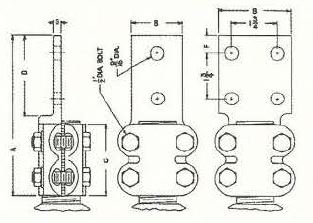

STUD SPADE ADAPTER
Material: A356T6 Aluminum
Bolts: 2024 AL alloy
for galvanized GR5 bolts/hardware add suffix "GH"
For Stainless steel bolts/hardware add suffix "SSH"
Other options available
For 4" wide pad replace "P3N4" with "P4N4"
Notes
1. holes in tongue
2. Other sizes available on request
| ALUMINIUM CONNECTORS | ||||||||
| CATALOG NUMBER |
H.T. | Stud Size | A | B | C | D | F | G |
| In | In | In | In | In | In | |||
| ABST1TH14PN2 | 2 | 1 - 14 | 6 | 2 | 2 1/4 | 3 1/4 | 5/8 | 7/16 |
| ABST1TH14P3N4 | 4 | 1 - 14 | 6 | 3 | 2 1/4 | 3 1/4 | 5/8 | 7/16 |
| ABST118TH12PN2 | 2 | 1 1/8-12 | 6 | 2 | 2 1/4 | 3 1/4 | 5/8 | 1/2 |
| ABST118TH12P3N4 | 4 | 1 1/8-12 | 6 | 3 | 2 1/4 | 3 1/4 | 5/8 | 1/2 |
| ABST114TH12PN2 | 2 | 1 1/4-12 | 6 3/4 | 2 | 2 1/2 | 3 1/4 | 5/8 | 9/16 |
| ABST114TH12P3N4 | 4 | 1 1/4-12 | 6 3/4 | 3 | 2 1/2 | 3 1/4 | 5/8 | 9/16 |
| ABST112TH12PN2 | 2 | 1 1/2-12 | 6 3/4 | 2 | 2 1/2 | 3 1/4 | 5/8 | 5/8 |
| ABST112TH12P3N4 | 4 | 1 1/2-12 | 6 3/4 | 3 | 2 1/2 | 3 1/4 | 5/8 | 5/8 |
| ABST112TH12P4N4 | 4 | 1 1/2-12 | 7 3/4 | 4 | 2 1/2 | 4 1/4 | 1 1/8 | 5/8 |
| ABST2TH12PN2 | 2 | 2-12 | 6 3/4 | 2 | 2 1/2 | 3 1/4 | 5/8 | 11/16 |
| ABST2TH12P3N4 | 4 | 2-12 | 6 3/4 | 3 | 2 1/2 | 3 1/4 | 5/8 | 11/16 |
| ABST2TH12P4N4 | 4 | 2-12 | 7 3/4 | 4 | 2 1/2 | 4 1/4 | 1 1/8 | 11/16 |
| ABST214TH12P3N4 | 4 | 2 1/4-12 | 6 3/4 | 3 | 2 1/2 | 3 1/4 | 5/8 | 3/4 |
| ABST214TH12P4N4 | 4 | 2 1/4-12 | 7 3/4 | 4 | 2 1/2 | 4 1/4 | 1 1/8 | 3/4 |
| ABST212TH12P3N4 | 4 | 2 1/2-12 | 6 3/4 | 3 | 2 1/2 | 3 1/4 | 5/8 | 3/4 |
| ABST212TH12P4N4 | 4 | 2 1/2-12 | 7 3/4 | 4 | 2 1/2 | 4 1/4 | 1 1/8 | 3/4 |
| ABST234TH12P3N4 | 4 | 2 3/4-12 | 7 1/4 | 3 | 3 | 3 1/4 | 5/8 | 13/16 |
| ABST234TH12P4N4 | 4 | 2 3/4-12 | 8 1/4 | 4 | 3 | 4 1/4 | 1 1/8 | 13/16 |
| ABST3TH12P3N4 | 4 | 3-12 | 7 1/4 | 3 | 3 | 3 1/4 | 5/8 | 13/16 |
| ABST3TH12P4N4 | 4 | 3-12 | 8 1/4 | 4 | 3 | 4 1/4 | 1 1/8 | 13/16 |
