AB2FSTC - Aluminum Bolted Stud Connector - (1-3 Cables)

Category: Stud Connectors
Hits: 179

 STUD CONNECTORS FOR ONE, TWO OR THREE CABLES



Material: A356T6 Aluminum


Bolts: 2024 AL alloy


for galvanized GR5 bolts/hardware add suffix "GH"
For Stainless steel bolts/hardware add suffix "SSH"
Other options available

Notes.


1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. Other sizes available on request
3. For Tee connector add "T" after AB2F

ALUMINIUM CONNECTORS
 CATALOG

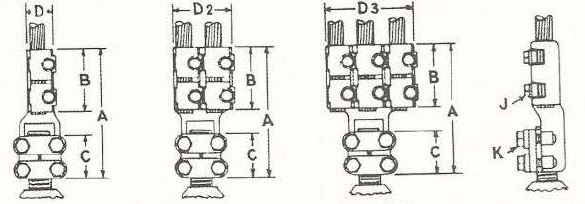

 NUMBER3		 CABLE SIZE1   A B C D D2 D3 J K
Min. Max. Stude size mm  In mm  In mm  In mm  In mm  In mm  In mm  In mm  In
AB2FST112TH12C350 AB2FD0ST112TH12C350 AB2FT0ST112TH12C350 4/0 350 1 1/2-12 152 6      70 2  3/4 64 2  1/2 32 1  1/4 67 2  5/8 102 4      10   3/8 13   1/2
AB2FST112TH12C500 AB2FD0ST112TH12C500 AB2FT0ST112TH12C500 350 500 1 1/2-12 165 6  1/2 83 3  1/4 64 2  1/2 37 1  7/16 76 3      116 4  9/16 10   3/8 13   1/2
AB2FST112TH12C750 AB2FD0ST112TH12C750 AB2FT0ST112TH12C750 500 750 1 1/2-12 178 7      95 3 3/4 64 2  1/2 43 1 11/16 87 3  7/16 132 5  3/16 11   7/16 13   1/2
AB2FST2TH12C350 AB2FD0ST2TH12C350 AB2FT0ST2TH12C350 4/0 350 2-12 152 6      70 2 3/4 64 2  1/2 32 1  1/4 67 2  5/8 102 4      10   3/8 13   1/2
AB2FST2TH12C500 AB2FD0ST2TH12C500 AB2FT0ST2TH12C500 350 500 2-12 165 6  1/2 83 3 1/4 64 2  1/2 37 1  7/16 76 3      116 4  9/16 10   3/8 13   1/2
AB2FST2TH12C750 AB2FD0ST2TH12C750 AB2FT0ST2TH12C750 500 750 2-12 178 7      95 3  3/4 64 2  1/2 43 1 11/16 87 3  7/16 132 5  3/16 11   7/16 13   1/2
AB2FST2TH12C1000 AB2FD0ST2TH12C1000 AB2FT0ST2TH12C1000 750 1000 2-12 195 7 11/16 113 4  7/16 64 2  1/2 49 1 15/16 102 4      154 6  1/16 13   1/2 13   1/2
AB2FST212TH12C500 AB2FD0ST212TH12C500 AB2FT0ST212TH12C500 350 500 2 1/2-12 171 6  3/4 83 3 1/4 70 2  3/4 37 1  7/16 76 3      116 4  9/16 10   3/8 13   1/2
AB2FST212TH12C750 AB2FD0ST212TH12C750 AB2FT0ST212TH12C750 500 750 2 1/2-12 184 7  1/4 95 3 3/4 70 2  3/4 43 1 11/16 87 3  7/16 132 5  3/16 11   7/16 13   1/2
AB2FST212TH12C1000 AB2FD0ST212TH12C1000 AB2FT0ST212TH12C1000 750 1000 2 1/2-12 202 7 15/16 113 4  7/16 70 2  3/4 49 1 15/16 102 4      154 6  1/16 13   1/2 13   1/2
AB2FST3TH12C500 AB2FD0ST3TH12C500 AB2FT0ST3TH12C500 350 500 3-12 178 7      83 3  1/4 76 3      37 1  7/16 76 3      116 4  9/16 10   3/8 13   1/2
AB2FST3TH12C750 AB2FD0ST3TH12C750 AB2FT0ST3TH12C750 500 750 3-12 197 7  3/4 95 3 3/4 83 3  1/4 43 1 11/16 87 3  7/16 132 5  3/16 11   7/16 16   5/8
AB2FST3TH12C1000 AB2FD0ST3TH12C1000 AB2FT0ST3TH12C1000 750 1000 3-12 214 8  7/16 113 4  7/16 83 3  1/4 49 1 15/16 102 4      154 6  1/16 13   1/2 16   5/8
AB2FST312TH12C500 AB2FD0ST312TH12C500 AB2FT0ST312TH12C500 350 500 3 1/2-12 178 7      83 3  1/4 76 3      37 1  7/16 76 3      116 4  9/16 10   3/8 13   1/2
AB2FST312TH12C750 AB2FD0ST312TH12C750 AB2FT0ST312TH12C750 500 750 3 1/2-12 197 7  3/4 95 3 3/4 83 3  1/4 43 1 11/16 87 3  7/16 132 5  3/16 11   7/16 16   5/8
AB2FST312TH12C1000 AB2FD0ST312TH12C1000 AB2FT0ST312TH12C1000 750 1000 3 1/2-12 214 8  7/16 113 4  7/16 83 3  1/4 49 1 15/16 102 4      154 6  1/16 13   1/2 16   5/8
AB2FST4TH12C500 AB2FD0ST4TH12C500 AB2FT0ST4TH12C500 350 500 4-12 178 7      83 3  1/4 76 3      37 1  7/16 76 3      116 4  9/16 10   3/8 13   1/2
AB2FST4TH12C750 AB2FD0ST4TH12C750 AB2FT0ST4TH12C750 500 750 4-12 197 7  3/4 95 3 3/4 83 3  1/4 43 1 11/16 87 3  7/16 132 5  3/16 11   7/16 16   5/8
AB2FST4TH12C1000 AB2FD0ST4TH12C1000 AB2FT0ST4TH12C1000 750 1000 4-12 214 8  7/16 113 4  7/16 83 3  1/4 49 1 15/16 102 4      154 6  1/16 13   1/2 16   5/8
