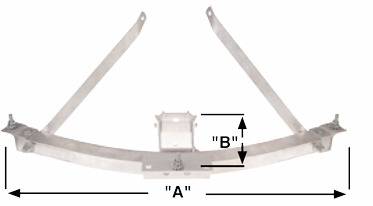

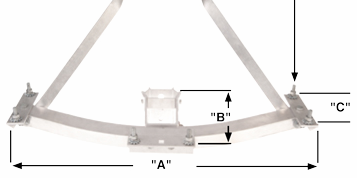

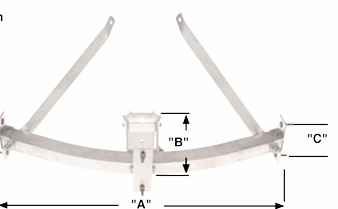

1 Bolt Horizontal 2 Bolt Horizontal 2 Bolt Vertical
Material: Equipment mount body, Aluminum hardware, Galvanized steel
Mount on wood poles with 5/8 thru-bolt and 3 lag screws
| Catalog Number | Equipment Mounting Fittings | Width"A" | Center Pole Offset "B" | Equipment Bolt Spacing "C" | Approx. Ship Wt. |
| inch | inch | inch | lbs | ||
| ACEB3858 | 1 Bolt Horizontal | 38-5/8" | 12-7/8" | N/A | 13 |
| ACEB5214 | 52-1/4" | 15 | |||
| ACEB3412 | 2 Bolt Horizontal | 34-1/2" | 12-3/4" | 6" | 14 |
| ACEB48 | 48" | 15" | 10" | 18 | |
| ACEB36316 | 2 Bolt Vertical | 36-3/16" | 11-5/16" | 4-7/16" to 5-3/16" | 13 |
| ACEB49316 | 49-3/16" | 17 |
