Material: A356T6 Aluminum
Bolts: 2024 AL alloy
for galvanized GR5 bolts/hardware add suffix "GH"
For Stainless steel bolts/hardware add suffix "SSH"
Other options available
Notes
1. Holes in tongue.
2. Other sizes available on request.
3. Suffix "6" indicates 3/8" bolt

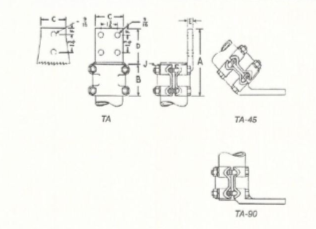

4. Items listed are straight versions, for angled pads add suffix L"angle" at the end. Ex: L45 for 45°
| CATALOG NUMBER 4 |
I.P.S. | H.T.2 | A | B | C | D | E | J |
| In | In | In | In | In | In | |||
| AB38B12PN2 | 1/2 | 2 | 5 3/8 | 2 | 1 1/2 | 3 3/8 | 5/16 | 3/8 |
| AB38B12P3N4 | 1/2 | 4 | 5 3/8 | 2 | 3 | 3 3/8 | 5/16 | 3/8 |
| ABB12PN2 | 1/2 | 2 | 5 5/8 | 2 1/4 | 1 1/2 | 3 3/8 | 5/16 | 1/2 |
| ABB12P3N4 | 1/2 | 4 | 5 5/8 | 2 1/4 | 3 | 3 3/8 | 5/16 | 1/2 |
| AB38B34PN2 | 3/4 | 2 | 5 1/2 | 2 1/8 | 1 3/4 | 3 3/8 | 11/32 | 3/8 |
| AB38B34P3N4 | 3/4 | 4 | 5 1/2 | 2 1/8 | 3 | 3 3/8 | 11/32 | 3/8 |
| ABB34PN2 | 3/4 | 2 | 5 3/4 | 2 3/8 | 1 3/4 | 3 3/8 | 11/32 | 1/2 |
| ABB34P3N4 | 3/4 | 4 | 5 3/4 | 2 3/8 | 3 | 3 3/8 | 11/32 | 1/2 |
| AB38B1PN2 | 1 | 2 | 5 5/8 | 2 1/4 | 2 | 3 3/8 | 3/8 | 3/8 |
| AB38B1P3N4 | 1 | 4 | 5 5/8 | 2 1/4 | 3 | 3 3/8 | 3/8 | 3/8 |
| ABB1PN2 | 1 | 2 | 5 7/8 | 2 1/2 | 2 | 3 3/8 | 3/8 | 1/2 |
| ABB1P3N4 | 1 | 4 | 5 7/8 | 2 1/2 | 3 | 3 3/8 | 3/8 | 1/2 |
| ABB114PN2 | 1 1/4 | 2 | 6 1/16 | 2 5/8 | 2 1/4 | 3 7/16 | 3/8 | 1/2 |
| ABB114P3N4 | 1 1/4 | 4 | 6 1/16 | 2 5/8 | 3 | 3 7/16 | 3/8 | 1/2 |
| ABB112PN2 | 1 1/2 | 2 | 6 1/4 | 2 3/4 | 2 1/2 | 3 1/2 | 7/16 | 1/2 |
| ABB112P3N4 | 1 1/2 | 4 | 6 1/4 | 2 3/4 | 3 | 3 1/2 | 7/16 | 1/2 |
| ABB2PN2 | 2 | 2 | 6 3/8 | 2 7/8 | 2 3/4 | 3 1/2 | 1/2 | 1/2 |
| ABB2P3N4 | 2 | 4 | 6 3/8 | 2 7/8 | 3 | 3 1/2 | 1/2 | 1/2 |
| ABB212PN2 | 2 1/2 | 2 | 6 1/2 | 3 | 3 | 3 1/2 | 9/16 | 1/2 |
| ABB212P3N4 | 2 1/2 | 4 | 6 1/2 | 3 | 3 | 3 1/2 | 9/16 | 1/2 |
| ABB3PN2 | 3 | 2 | 6 3/4 | 3 1/4 | 3 | 3 1/2 | 5/8 | 5/8 |
| ABB3P3N4 | 3 | 4 | 6 3/4 | 3 1/4 | 3 | 3 1/2 | 5/8 | 5/8 |
| ABB312P3N4 | 3 1/2 | 4 | 7 | 3 1/2 | 3 | 3 1/2 | 3/4 | 5/8 |
| ABB4P3N4 | 4 | 4 | 7 1/4 | 3 3/4 | 3 | 3 1/2 | 3/4 | 5/8 |
| ABB4P3N4 | 4 | 4 | 7 1/4 | 3 3/4 | 4 | 3 1/2 | 3/4 | 5/8 |
