Material: Hot dip galvanized
Notes:
• Heavy duty malleable with steel stud complete with spur washer and nut
• C.S.A. die cast lead thread
• Other sizes and hex nuts on request

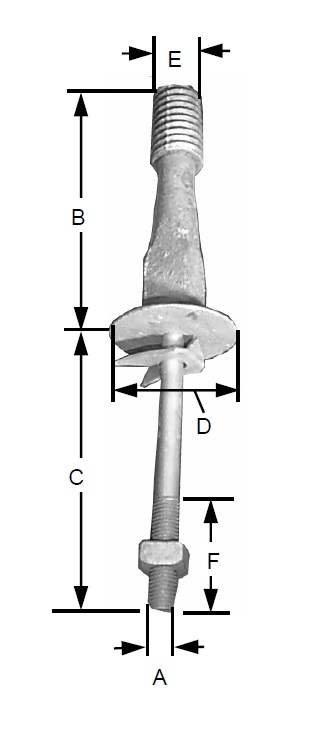

| Cat No. | A Inches |
B Inches |
C Inches |
D Inches |
E Inches |
F Inches |
Shipping Wt. lbs (100 pcs) |
Std. Pkg |
| K215-1 | 5/8 | 7 | 6 | 3-1/4 | 1-3/8 | 2-1/4 | 260 | 25 |
| K215-2 | 5/8 | 7 | 7 | 3-1/4 | 1-3/8 | 2-1/4 | 260 | 25 |
| K215-3 | 5/8 | 8 | 6 | 3-1/4 | 1-3/8 | 2-1/4 | 450 | 10 |
| K215-4 | 5/8 | 8 | 7 | 3-1/4 | 1-3/8 | 2-1/4 | 525 | 10 |
| K215-5 | 3/4 | 8 | 7 | 3-1/4 | 1-3/8 | 3 | 487 | 10 |
| K215-6 | 3/4 | 12 | 7 | 3-1/4 | 1-3/8 | 3 | 730 | 5 |
| K215-7 | 3/4 | 13 | 7 | 3-1/4 | 1-3/8 | 3 | 790 | 5 |
| K215-8 | 3/4 | 6 | 7 | 3-1/4 | 1-3/8 | 3 | 365 | 10 |
| K215-9 | 3/4 | 7 | 7 | 3-1/4 | 1-3/8 | 3 | 426 | 10 |
