Material: A356T6 Aluminum
Bolts: 2024 AL alloy
for galvanized GR5 bolts/hardware add suffix "GH"
For Stainless steel bolts/hardware add suffix "SSH"
Other options available

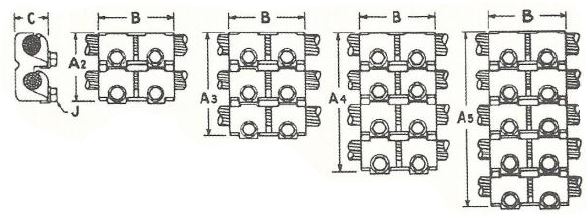

MULTIPLE CABLE COUPLER
Notes:
1. All cable sizes shown are stranded; 350 and above are kcmil sizes
| CATALOG NUMBER |
CABLE SIZE1 | A2 | A3 | A4 | A5 | B | C | J | |
| Min. | Max. | In | In | InIn | In | In | In | ||
| AB2D0C0C0 | #4 | 1/0 | 2 | 5/8 | 3 5/8 | 1 1/4 | 5/16 | ||
| AB2D0C0000C0000 | 1/0 | 4/0 | 2 7/16 | 13/16 | 3 3/4 | 1 1/2 | 5/16 | ||
| AB2D0C350C350 | 4/0 | 350 | 2 7/16 | 15/16 | 4 | 1 3/4 | 3/8 | ||
| AB2D0C500C500 | 350 | 500 | 3 1/4 | 1 1/4 | 4 1/8 | 2 | 3/8 | ||
| AB2D0C750C750 | 500 | 750 | 3 5/8 | 5/8 | 4 3/4 | 2 3/8 | 7/16 | ||
| AB2D0C1000C1000 | 750 | 1000 | 4 1/4 | 13/16 | 5 1/4 | 2 5/8 | 1/2 | ||
| AB2T0C0C0 | #4 | 1/0 | 3 1/16 | 15/16 | 3 5/8 | 1 1/4 | 5/16 | ||
| AB2T0C0000C0000 | 1/0 | 4/0 | 3 13/16 | 1 1/4 | 3 3/4 | 1 1/2 | 5/16 | ||
| AB2T0C350C350 | 4/0 | 350 | 4 3/8 | 5/8 | 4 | 1 3/4 | 3/8 | ||
| AB2T0C500C500 | 350 | 500 | 4 15/16 | 13/16 | 4 1/8 | 2 | 3/8 | ||
| AB2T0C750C750 | 500 | 750 | 5 11/16 | 15/16 | 4 3/4 | 2 3/8 | 7/16 | ||
| AB2T0C1000C1000 | 750 | 1000 | 6 7/16 | 1 1/4 | 5 1/4 | 2 5/8 | 1/2 | ||
| AB2Q0C0C0 | #4 | 1/0 | 4 1/8 | 5/8 | 3 5/8 | 1 1/4 | 5/16 | ||
| AB2Q0C4/0C4/0 | 1/0 | 4/0 | 5 1/16 | 13/16 | 3 3/4 | 1 1/2 | 5/16 | ||
| AB2Q0C350C350 | 4/0 | 350 | 5 3/16 | 15/16 | 4 | 1 3/4 | 3/8 | ||
| AB2Q0C500C500 | 350 | 500 | 6 5/8 | 1 1/4 | 4 1/8 | 2 | 3/8 | ||
| AB2Q0C750C750 | 500 | 750 | 7 5/8 | 2 1/4 | 4 3/4 | 2 3/8 | 7/16 | ||
| AB2Q0C1000C1000 | 750 | 1000 | 8 5/8 | 3 1/4 | 5 1/4 | 2 5/8 | 1/2 | ||
| AB2P0C0C0 | #4 | 1/0 | 6 3/16 | 3 5/8 | 1 1/4 | 5/16 | |||
| AB2P0C0000C0000 | 1/0 | 4/0 | 6 7/16 | 3 3/4 | 1 1/2 | 5/16 | |||
| AB2P0C350C350 | 4/0 | 350 | 7 3/8 | 4 | 1 3/4 | 3/8 | |||
| AB2P0C500C500 | 350 | 500 | 8 5/16 | 4 1/8 | 2 | 3/8 | |||
| AB2P0C750C750 | 500 | 750 | 9 9/16 | 4 3/4 | 2 3/8 | 7/16 | |||
| AB2P0C1000C1000 | 750 | 1000 | 10 13/16 | 5 1/4 | 2 5/8 | 1/2 | |||
