| BBTBB | BHBTBB |

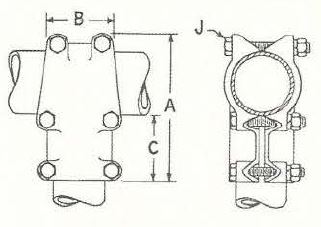

| TEE CONNECTOR, TUBE TO TUBE | TEE CONNECTOR, TUBE TO TUBE |
Notes
1. Suffix "6" indicates 3/8 " bolt
2. Other sizes available on request
| Cat. No. | I.P.S. | A | B | C | J | |
| RUN | TAP | In | In | In | In | |
| BB38TB12B12 | 1/2 | 1/2 | 3 5/16 | 2 | 1 3/4 | 3/8 |
| BBTB12B12 | 1/2 | 1/2 | 3 11/16 | 2 1/4 | 2 | 1/2 |
| BBTB34B12 | 3/4 | 1/2 | 3 7/8 | 2 3/8 | 2 | 1/2 |
| BB38TB34B34 | 3/4 | 3/4 | 3 3/4 | 2 1/8 | 2 | 3/8 |
| BBTB34B34 | 3/4 | 3/4 | 4 1/8 | 2 3/8 | 2 1/4 | 1/2 |
| BBTB1B12 | 1 | 1/2 | 4 1/8 | 2 1/2 | 2 | 1/2 |
| BBTB1B34 | 1 | 3/4 | 4 3/8 | 2 1/2 | 2 1/4 | 1/2 |
| BBTB1BBT | 1 | 1 | 4 5/8 | 2 1/2 | 2 1/2 | 1/2 |
| BBTB114B34 | 1 1/4 | 3/4 | 4 11/16 | 2 3/4 | 2 1/4 | 1/2 |
| BBTB114B1 | 1 1/4 | 1 | 4 15/16 | 2 3/4 | 2 1/2 | 1/2 |
| BBTB114B114 | 1 1/4 | 1 1/4 | 5 3/16 | 2 3/4 | 2 3/4 | 1/2 |
| BBTB112B34 | 1 1/2 | 3/4 | 4 15/16 | 2 3/4 | 2 1/4 | 1/2 |
| BBTB112B1 | 1 1/2 | 1 | 5 3/16 | 2 3/4 | 2 1/2 | 1/2 |
| BBTB112B114 | 1 1/2 | 1 1/4 | 5 7/16 | 2 3/4 | 2 3/4 | 1/2 |
| BBTB112B112 | 1 1/2 | 1 1/2 | 5 11/16 | 2 3/4 | 3 | 1/2 |
| BBTB2B1 | 2 | 1 | 5 9/16 | 2 7/8 | 2 1/2 | 1/2 |
| BBTB2B114 | 2 | 1 1/4 | 5 15/16 | 2 7/8 | 2 3/4 | 1/2 |
| BBTB2B112 | 2 | 1 1/2 | 6 3/16 | 2 7/8 | 3 | 1/2 |
| BBTB2B2 | 2 | 2 | 6 7/16 | 2 7/8 | 3 1/4 | 1/2 |
| BBTB212B114 | 2 1/2 | 1 1/4 | 6 7/16 | 3 | 2 3/4 | 1/2 |
| BBTB212B112 | 2 1/2 | 1 1/2 | 6 11/16 | 3 | 3 | 1/2 |
| BBTB212B2 | 2 1/2 | 2 | 6 15/16 | 3 | 3 1/4 | 1/2 |
| BBTB212B212 | 2 1/2 | 2 1/2 | 7 3/16 | 3 | 3 1/2 | 1/2 |
| BBTB3B112 | 3 | 1 1/2 | 7 5/16 | 3 | 3 | 1/2 |
| BBTB3B2 | 3 | 2 | 7 9/16 | 3 | 3 1/4 | 1/2 |
| BBTB3B212 | 3 | 2 1/2 | 7 13/16 | 3 | 3 1/2 | 1/2 |
| BBTB3B3 | 3 | 3 | 8 3/16 | 3 1/4 | 3 3/4 | 5/8 |
| BBTB312B2 | 3 1/2 | 2 | 8 1/16 | 3 1/4 | 3 1/4 | 1/2 |
| BBTB312B212 | 3 1/2 | 2 1/2 | 8 5/16 | 3 1/4 | 3 1/2 | 1/2 |
| BBTB312B3 | 3 1/2 | 3 | 8 11/16 | 3 1/2 | 3 3/4 | 5/8 |
| BBTB312B312 | 3 1/2 | 3 1/2 | 8 15/16 | 3 1/2 | 4 | 5/8 |
| BBTB4B2 | 4 | 2 | 8 9/16 | 3 1/2 | 3 1/4 | 1/2 |
| BBTB4B212 | 4 | 2 1/2 | 8 13/16 | 3 1/2 | 3 1/2 | 1/2 |
| BBTB4B3 | 4 | 3 | 9 3/16 | 3 3/4 | 3 3/4 | 5/8 |
| BBTB312B312 | 4 | 3 1/2 | 9 7/16 | 3 3/4 | 4 | 5/8 |
| BBTB4B4 | 4 | 4 | 9 15/16 | 3 3/4 | 4 1/2 | 5/8 |
| BHBTB12B12 | 1/2 | 1/2 | 4 3/4 | 4 7/8 | 2 1/4 | 1/2 |
| BHBTB34B34 | 3/4 | 3/4 | 5 1/8 | 5 3/16 | 2 3/8 | 1/2 |
| BHBTB1B34 | 1 | 3/4 | 5 1/2 | 5 1/2 | 2 3/8 | 1/2 |
| BHBTB1B1 | 1 | 1 | 5 1/2 | 5 5/8 | 2 1/2 | 1/2 |
| BHBTB114B34 | 1 1/4 | 3/4 | 5 7/8 | 5 7/8 | 2 3/8 | 1/2 |
| BHBTB114B1 | 1 1/4 | 1 | 5 7/8 | 6 | 2 1/2 | 1/2 |
| BHBTB114B114 | 1 1/4 | 1 1/4 | 5 7/8 | 6 1/8 | 2 5/8 | 1/2 |
| BHBTB112B34 | 1 1/2 | 3/4 | 6 1/4 | 6 1/16 | 2 3/8 | 1/2 |
| BHBTB112B1 | 1 1/2 | 1 | 6 1/4 | 6 3/16 | 2 1/2 | 1/2 |
| BHBTB112B114 | 1 1/2 | 1 1/4 | 6 1/4 | 6 5/16 | 2 5/8 | 1/2 |
| BHBTB112B112 | 1 1/2 | 1 1/2 | 6 1/4 | 6 1/2 | 2 3/4 | 1/2 |
| BHBTB2B1 | 2 | 1 | 6 5/8 | 6 11/16 | 2 1/2 | 1/2 |
| BHBTB2B114 | 2 | 1 1/4 | 6 5/8 | 6 13/16 | 2 5/8 | 1/2 |
| BHBTB2B112 | 2 | 1 1/2 | 6 5/8 | 7 | 2 3/4 | 1/2 |
| BHBTB2B2 | 2 | 2 | 6 5/8 | 7 1/8 | 2 7/8 | 1/2 |
| BHBTB212B114 | 2 1/2 | 1 1/4 | 7 | 7 5/16 | 2 5/8 | 1/2 |
| BHBTB212B112 | 2 1/2 | 1 1/2 | 7 | 7 1/2 | 2 3/4 | 1/2 |
| BHBTB212B2 | 2 1/2 | 2 | 7 | 7 5/8 | 2 7/8 | 1/2 |
| BHBTB212B212 | 2 1/2 | 2 1/2 | 7 | 7 3/4 | 3 | 1/2 |
| BHBTB3B112 | 3 | 1 1/2 | 7 1/4 | 8 1/8 | 2 3/4 | 1/2 |
| BHBTB3B2 | 3 | 2 | 7 1/4 | 8 1/4 | 2 7/8 | 1/2 |
| BHBTB3B212 | 3 | 2 1/2 | 7 1/4 | 8 3/8 | 3 | 1/2 |
| BHBTB3B3 | 3 | 3 | 7 3/4 | 8 15/16 | 3 1/4 | 5/8 |
| BHBTB312B2 | 3 1/2 | 2 | 8 | 8 3/4 | 2 7/8 | 1/2 |
| BHBTB312B212 | 3 1/2 | 2 1/2 | 8 | 8 7/8 | 3 | 1/2 |
| BHBTB312B3 | 3 1/2 | 3 | 8 1/2 | 9 7/16 | 3 1/4 | 5/8 |
| BHBTB312B312 | 3 1/2 | 3 1/2 | 8 1/2 | 9 11/16 | 3 1/2 | 5/8 |
| BHBTB4B2 | 4 | 2 | 8 1/2 | 9 1/4 | 2 7/8 | 1/2 |
| BHBTB4B212 | 4 | 2 1/2 | 8 1/2 | 9 3/8 | 3 | 1/2 |
| BHBTB4B3 | 4 | 3 | 9 | 9 15/16 | 3 1/4 | 5/8 |
| BHBTB4B312 | 4 | 3 1/2 | 9 | 10 3/16 | 3 1/2 | 5/8 |
| BHBTB4B4 | 4 | 4 | 9 | 10 7/16 | 3 3/4 | 5/8 |
