Material: Hot dip galvanized
Notes:
♦ C.S.A. Standard
♦ Other sizes and drilling on request
♦ Provides additional clearance between primary conductor and ground

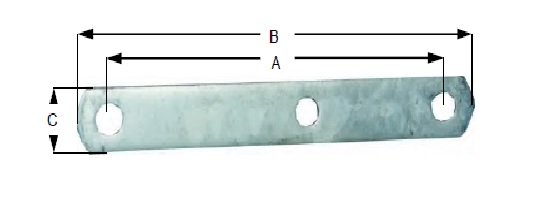

| Cat No. | A Inches |
B Inches |
C Inches |
Thickness Inches |
Hole Inches |
Shipping Wt. lbs (100 pcs) |
Std. Pkg |
| K52-3 | 3 | 4-1/2 | 1-1/2 | 1/4 | 11/16 | 44 | 10/Bundle |
| K52-6 | 6 | 7-3/4 | 1-1/2 | 1/4 | 11/16 | 100 | 10/Bundle |
| K52-8 | 8 | 9-3/4 | 1-1/2 | 1/4 | 11/16 | 120 | 10/Bundle |
| K52-10 | 10 | 11-3/4 | 1-1/2 | 1/4 | 11/16 | 140 | 10/Bundle |
| K52-12 | 12 | 13-3/4 | 1-1/2 | 3/8 | 11/16 | 210 | 10/Bundle |
| K52-14 | 14 | 15-3/4 | 2 | 3/8 | 11/16 | 179 | 10/Bundle |
| K52-18 | 18 | 19-3/4 | 1-1/2 | 1/4 | 11/16 | 300 | 10/Bundle |
| K52-32 | 32 | 33-1/2 | 1-1/2 | 1/4 | 11/16 | 352 | 10/Bundle |
