Material: Copper alloy, Hardware SI bronze
Notes
1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. Other sizes available on request
3. For Tinned surface add Prefix "T"
4. All bolts come with Lock-washer and nut
5. For threaded body add suffix TB

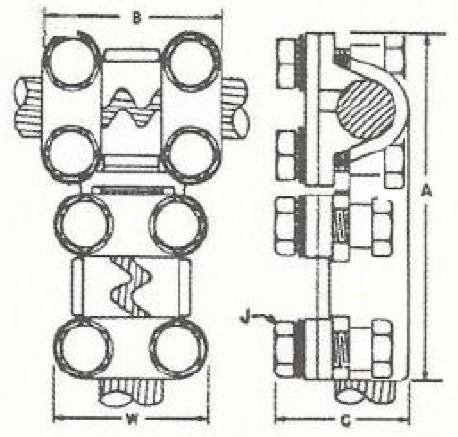

| Cat. No. | RUN CABLE | I.P.S | TAP CABLE | I.P.S | A | B | C | W | ||
| Min. | Max. | Min. | Max. | In | In | In | In | |||
| BBTC00C00 | #4 | 2/0 | 1/8 | #4 | 2/0 | 1/8 | 5 1/4 | 2 1/2 | 1 1/4 | 2 3/8 |
| BBTC350C00 | 2/0 | 350 | 3/8 | #4 | 2/0 | 1/8 | 5 3/8 | 2 5/8 | 1 5/8 | 2 3/8 |
| BBTC350C350 | 2/0 | 350 | 3/8 | 2/0 | 350 | 3/8 | 5 1/2 | 2 5/8 | 1 5/8 | 2 3/8 |
| BBTC600C00 | 350 | 600 | 1/2 | #4 | 2/0 | 1/8 | 5 3/8 | 2 5/8 | 2 | 2 7/16 |
| BBTC600C350 | 350 | 600 | 1/2 | 2/0 | 350 | 3/8 | 5 1/2 | 2 5/8 | 2 | 2 7/16 |
| BBTC600C600 | 350 | 600 | 1/2 | 350 | 600 | 1/2 | 5 1/2 | 2 5/8 | 2 | 2 7/16 |
| BBTC1000C00 | 600 | 1000 | 3/4 | #4 | 2/0 | 1/8 | 5 | 3 | 2 5/16 | 2 9/16 |
| BBTC1000C350 | 600 | 1000 | 3/4 | 2/0 | 350 | 3/8 | 5 | 3 | 2 5/16 | 2 9/16 |
| BBTC1000C600 | 600 | 1000 | 3/4 | 350 | 600 | 1/2 | 5 7/8 | 3 | 2 5/16 | 2 9/16 |
| BBTC1000C1000 | 600 | 1000 | 3/4 | 600 | 1000 | 3/4 | 6 1/8 | 3 | 2 5/16 | 2 9/16 |
| BBTC1500C00 | 1000 | 1500 | 1 | #4 | 2/0 | 1/8 | 6 1/8 | 3 3/16 | 2 5/8 | 2 13/16 |
| BBTC1500C350 | 1000 | 1500 | 1 | 2/0 | 350 | 3/8 | 6 1/4 | 3 3/16 | 2 5/8 | 2 13/16 |
| BBTC1500C600 | 1000 | 1500 | 1 | 350 | 600 | 1/2 | 6 1/4 | 3 3/16 | 2 5/8 | 2 13/16 |
| BBTC1500C1000 | 1000 | 1500 | 1 | 600 | 1000 | 3/4 | 6 3/8 | 3 3/16 | 2 5/8 | 2 13/16 |
| BBTC1500C1500 | 1000 | 1500 | 1 | 1000 | 1500 | 1 | 6 1/2 | 3 3/16 | 2 5/8 | 2 13/16 |
| BBTC2000C00 | 1500 | 2000 | 1 1/4 | #4 | 2/0 | 1/8 | 6 1/8 | 3 3/8 | 3 | 3 1/16 |
| BBTC2000C350 | 1500 | 2000 | 1 1/4 | 2/0 | 350 | 3/8 | 6 1/4 | 3 3/8 | 3 | 3 1/16 |
| BBTC2000C600 | 1500 | 2000 | 1 1/4 | 350 | 600 | 1/2 | 6 1/4 | 3 3/8 | 3 | 3 1/16 |
| BBTC2000C1000 | 1500 | 2000 | 1 1/4 | 600 | 1000 | 3/4 | 6 1/2 | 3 3/8 | 3 | 3 1/16 |
| BBTC2000C1500 | 1500 | 2000 | 1 1/4 | 1000 | 1500 | 1 | 6 3/4 | 3 3/8 | 3 | 3 1/16 |
| BBTC2000C2000 | 1500 | 2000 | 1 1/4 | 1500 | 2000 | 1 1/4 | 7 | 3 3/8 | 3 | 3 1/16 |
