ADAPTER TUBE TO CABLE
Bolted bronze
Material: Copper alloy 131H
Bolts: High strength SI Bronze
For tin plating add Suffix "TP"
Notes
1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. Other sizes available on request

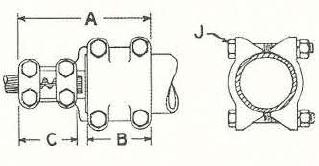

3. J= 1/2"
| Cat. No. | TAP CABLE SIZE1 | RUN | A | B | C | |
| Min. | Max. | I.P.S | In | In | In | |
| BBB12C00 | #4 | 2/0 | 1/2 | 4 15/16 | 2 1/4 | 2 7/16 |
| BBB12C350 | 2/0 | 350 | 1/2 | 5 5/16 | 2 1/4 | 2 13/16 |
| BBB34C00 | #4 | 2/0 | 3/4 | 5 3/16 | 2 3/8 | 2 7/16 |
| BBB34C350 | 2/0 | 350 | 3/4 | 5 9/16 | 2 3/8 | 2 13/16 |
| BBB34C600 | 350 | 600 | 3/4 | 5 9/16 | 2 3/8 | 2 13/16 |
| BBB1C0 | #4 | 2/0 | 1 | 5 7/16 | 2 1/2 | 2 7/16 |
| BBB1C350 | 2/0 | 350 | 1 | 5 13/16 | 2 1/2 | 2 13/16 |
| BBB1C600 | 350 | 600 | 1 | 5 13/16 | 2 1/2 | 2 13/16 |
| BBB1C1000 | 600 | 1000 | 1 | 6 | 2 1/2 | 3 |
| BBB114C00 | #4 | 2/0 | 1 1/4 | 5 11/16 | 2 5/8 | 2 7/16 |
| BBB114C350 | 2/0 | 350 | 1 1/4 | 6 1/16 | 2 5/8 | 2 13/16 |
| BBB114C600 | 350 | 600 | 1 1/4 | 6 1/16 | 2 5/8 | 2 13/16 |
| BBB114C1000 | 600 | 1000 | 1 1/4 | 6 1/4 | 2 5/8 | 3 |
| BBB114C1500 | 1000 | 1500 | 1 1/4 | 6 7/16 | 2 5/8 | 3 3/16 |
| BBB112C00 | #4 | 2/0 | 1 1/2 | 5 15/16 | 2 3/4 | 2 7/16 |
| BBB112C350 | 2/0 | 350 | 1 1/2 | 6 5/16 | 2 3/4 | 2 13/16 |
| BBB112C600 | 350 | 600 | 1 1/2 | 6 5/16 | 2 3/4 | 2 13/16 |
| BBB112C1000 | 600 | 1000 | 1 1/2 | 6 1/2 | 2 3/4 | 3 |
| BBB112C1500 | 1000 | 1500 | 1 1/2 | 6 11/16 | 2 3/4 | 3 3/16 |
| BBB112C2000 | 1500 | 2000 | 1 1/2 | 6 7/8 | 2 3/4 | 3 3/8 |
| BBB2C350 | 2/0 | 350 | 2 | 6 9/16 | 2 7/8 | 2 13/16 |
| BBB2C600 | 350 | 600 | 2 | 6 9/16 | 2 7/8 | 2 13/16 |
| BBB2C1000 | 600 | 1000 | 2 | 6 3/4 | 2 7/8 | 3 |
| BBB2C1500 | 1000 | 1500 | 2 | 6 15/16 | 2 7/8 | 3 3/16 |
| BBB2C2000 | 1500 | 2000 | 2 | 7 1/8 | 2 7/8 | 3 3/8 |
| BBB212C350 | 2/0 | 350 | 2 1/2 | 6 13/16 | 3 | 2 13/16 |
| BBB212C600 | 350 | 600 | 2 1/2 | 6 13/16 | 3 | 2 13/16 |
| BBB212C1000 | 600 | 1000 | 2 1/2 | 7 | 3 | 3 |
| BBB212C1500 | 1000 | 1500 | 2 1/2 | 7 3/16 | 3 | 3 3/16 |
| BBB212C2000 | 1500 | 2000 | 2 1/2 | 7 3/8 | 3 | 3 3/8 |
| BBB3C350 | 2/0 | 350 | 3 | 6 13/16 | 3 | 2 13/16 |
| BBB3C600 | 350 | 600 | 3 | 6 13/16 | 3 | 2 13/16 |
| BBB3C1000 | 600 | 1000 | 3 | 7 | 3 | 3 |
| BBB3C1500 | 1000 | 1500 | 3 | 7 3/16 | 3 | 3 3/16 |
| BBB3C2000 | 1500 | 2000 | 3 | 7 3/8 | 3 | 3 3/8 |
| BBB312C600 | 350 | 600 | 3 1/2 | 7 1/16 | 3 1/4 | 2 13/16 |
| BBB312C1000 | 600 | 1000 | 3 1/2 | 7 1/4 | 3 1/4 | 3 |
| BBB312C1500 | 1000 | 1500 | 3 1/2 | 7 11/16 | 3 1/4 | 3 3/16 |
| BBB312C2000 | 1500 | 2000 | 3 1/2 | 7 7/8 | 3 1/4 | 3 3/8 |
| BBB4C600 | 350 | 600 | 4 | 7 5/16 | 3 1/2 | 2 13/16 |
| BBB4C1000 | 600 | 1000 | 4 | 7 1/2 | 3 1/2 | 3 |
| BBB4C1500 | 1000 | 1500 | 4 | 7 15/16 | 3 1/2 | 3 3/16 |
| BBB4C2000 | 1500 | 2000 | 4 | 8 1/8 | 3 1/2 | 3 3/8 |
