TERMINAL LUGS, IPS TUBE WITH VARYING ANGLES |
Material: Copper alloy, Hardware SI Bronze
Notes
1. Holes on tongue.
2.Other sizes available on request.
3.for Stainless steel hardware add suffix "SS".
4.Suffix "6" indicates 3/8" bolt
5. Add prefix "T" for tinned
6. Bolts come with washer and lockwasher

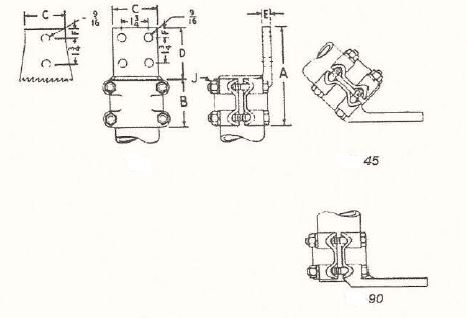

Items listed are straight versions, for angled pads add suffix L"angle". Ex: L45 for 45°
| Cat. No.4 | I.P.S | H.T.2 | A | B | C | D | E | J |
| In | In | In | In | In | In | |||
| BB438B12PN2 | 1/2 | 2 | 5 3/8 | 2 | 1 1/2 | 3 3/8 | 5/16 | 3/8 |
| BB438B12P3N4 | 1/2 | 4 | 5 3/8 | 2 | 3 | 3 3/8 | 5/16 | 3/8 |
| BBB12PN2 | 1/2 | 2 | 5 5/8 | 2 1/4 | 1 1/2 | 3 3/8 | 5/16 | 1/2 |
| BBB12P3N4 | 1/2 | 4 | 5 5/8 | 2 1/4 | 3 | 3 3/8 | 5/16 | 1/2 |
| BB438B34PN2 | 3/4 | 2 | 5 1/2 | 2 1/8 | 1 3/4 | 3 3/8 | 11/32 | 3/8 |
| BB438B34P3N4 | 3/4 | 4 | 5 1/2 | 2 1/8 | 3 | 3 3/8 | 11/32 | 3/8 |
| BBB34PN2 | 3/4 | 2 | 5 3/4 | 2 3/8 | 1 3/4 | 3 3/8 | 11/32 | 1/2 |
| BBB34P3N4 | 3/4 | 4 | 5 3/4 | 2 3/8 | 3 | 3 3/8 | 11/32 | 1/2 |
| BB438B1PN2 | 1 | 2 | 5 5/8 | 2 1/4 | 2 | 3 3/8 | 3/8 | 3/8 |
| BB438B1P3N4 | 1 | 4 | 5 5/8 | 2 1/4 | 3 | 3 3/8 | 3/8 | 3/8 |
| BBB1PN2 | 1 | 2 | 5 7/8 | 2 1/2 | 2 | 3 3/8 | 3/8 | 1/2 |
| BBB1P3N4 | 1 | 4 | 5 7/8 | 2 1/2 | 3 | 3 3/8 | 3/8 | 1/2 |
| BBB114PN2 | 1 1/4 | 2 | 6 1/16 | 2 5/8 | 2 1/4 | 3 7/16 | 3/8 | 1/2 |
| BBB114P3N4 | 1 1/4 | 4 | 6 1/16 | 2 5/8 | 3 | 3 7/16 | 3/8 | 1/2 |
| BBB112PN2 | 1 1/2 | 2 | 6 1/4 | 2 3/4 | 2 1/2 | 3 1/2 | 7/16 | 1/2 |
| BBB112P3N4 | 1 1/2 | 4 | 6 1/4 | 2 3/4 | 3 | 3 1/2 | 7/16 | 1/2 |
| BBB2PN2 | 2 | 2 | 6 3/8 | 2 7/8 | 2 3/4 | 3 1/2 | 1/2 | 1/2 |
| BBB2P3N4 | 2 | 4 | 6 3/8 | 2 7/8 | 3 | 3 1/2 | 1/2 | 1/2 |
| BBB212PN2 | 2 1/2 | 2 | 6 1/2 | 3 | 3 | 3 1/2 | 9/16 | 1/2 |
| BBB212P3N4 | 2 1/2 | 4 | 6 1/2 | 3 | 3 | 3 1/2 | 9/16 | 1/2 |
| BBB3PN2 | 3 | 2 | 6 3/4 | 3 1/4 | 3 | 3 1/2 | 5/8 | 5/8 |
| BBB3P3N4 | 3 | 4 | 6 3/4 | 3 1/4 | 3 | 3 1/2 | 5/8 | 5/8 |
| BBB312P3N4 | 3 1/2 | 4 | 7 | 3 1/2 | 3 | 3 1/2 | 3/4 | 5/8 |
| BBB4P3N4 | 4 | 4 | 7 1/4 | 3 3/4 | 3 | 3 1/2 | 3/4 | 5/8 |
