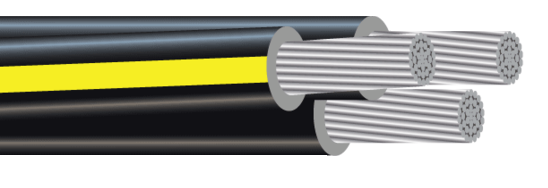

Product Description
Duplex, Triplex or Quadriplex assembled, hard drawn 1350 aluminum conductors. Black cross-linked (XLP) polyethylene insulation on phase conductors and sold yellow (XLP) insulation on the neutral conductor for identification.
Application
Designed for secondary distribution and underground service at 600 volts or less.
Specification Data
Aluminum is an AAC. With ICEA S-66-524, Park 3 Part. 3.6. 1350 Aluminum conductor XLP insulation 90°C
| ASTM B-230 |
| ASTM B-231 |
| Duplex Solid Yellow Neutral | |||||||||||
| Catalog Number | Phase Conductor | Neutral | Diameter (mils.) | Weight | Allowable Ampacities+ | ||||||
| Size (AWG) | Stranding | Insulation Thickness (mils.) | Size (AWG) | Stranding | Insulation Thickness (mils.) | Single Phase Cond. | Complete Cable | (lbs.)/ 1000 ft | Direct Burial | In Ducts | |
| Clafin | 6 | 7 | 60 | 6 | 7 | 60 | 298 | 596 | 91 | 95 | 70 |
| Delgado | 4 | 7 | 60 | 4 | 7 | 60 | 345 | 690 | 129 | 125 | 90 |
| Triplex Solid Yellow Neutral | |||||||||||
| Catalog Number | Phase Conductor | Neutral | Diameter (mils.) | Weight | Allowable Ampacities+ | ||||||
| Size (AWG) | Stranding | Insulation Thickness (mils.) | Size (AWG) | Stranding | Insulation Thickness (mils.) | Single Phase Cond. | Complete Cable | (lbs.)/ 1000 ft | Direct Burial | In Ducts | |
| Erskine | 6 | 7 | 60 | 6 | 7 | 60 | 298 | 644 | 136 | 95 | 70 |
| Vassar | 4 | 7 | 60 | 4 | 7 | 60 | 345 | 745 | 194 | 125 | 90 |
| Stephens | 2 | 7 | 60 | 4 | 7 | 60 | 403 | 870 | 260 | 165 | 120 |
| Ramapo | 2 | 7 | 60 | 2 | 7 | 60 | 403 | 870 | 290 | 165 | 120 |
| Brenau | 1/0 | 19 | 80 | 2 | 7 | 60 | 512 | 1106 | 409 | 215 | 160 |
| Bergen | 1/0 | 19 | 80 | 1/0 | 19 | 80 | 512 | 1106 | 476 | 215 | 160 |
| Converse | 2/0 | 19 | 80 | 1 | 19 | 80 | 555 | 1199 | 490 | 245 | 180 |
| Hunter | 2/0 | 19 | 80 | 2/0 | 19 | 80 | 555 | 1199 | 540 | 245 | 180 |
| Hollins | 3/0 | 19 | 80 | 1/0 | 19 | 80 | 603 | 1302 | 586 | 280 | 205 |
| Rockland | 3/0 | 19 | 80 | 3/0 | 19 | 80 | 603 | 1302 | 656 | 280 | 205 |
| Sweetbriar | 4/0 | 19 | 80 | 2/0 | 19 | 80 | 658 | 1421 | 740 | 315 | 240 |
| Monmouth | 4/0 | 19 | 80 | 4/0 | 19 | 80 | 658 | 1421 | 847 | 315 | 240 |
| Pratt | 250 | 37 | 95 | 3/0 | 19 | 80 | 732 | 1581 | 857 | 345 | 265 |
| Wesleyan | 350 | 37 | 95 | 36617 | 19 | 80 | 831 | 1795 | 1135 | 415 | 320 |
| Rider | 500 | 37 | 95 | 350 | 37 | 95 | 980 | 2117 | 1248 | 495 | 395 |
| Quadriplex Solid Yellow Neutral | |||||||||||
| Catalog Number | Phase Conductor | Neutral | Diameter (mils.) | Weight | Allowable Ampacities+ | ||||||
| Size (AWG) | Stranding | Insulation Thickness (mils.) | Size (AWG) | Stranding | Insulation Thickness (mils.) | Single Phase Cond. | Complete Cable | (lbs.)/ 1000 ft | Direct Burial | In Ducts | |
| Tulsa | 4.00 | 7.00 | 60.00 | 4.00 | 7.00 | 60.00 | 345.00 | 833.00 | 258.00 | 120.00 | 85.00 |
| Dyke | 2.00 | 7.00 | 60.00 | 4.00 | 7.00 | 60.00 | 403.00 | 973.00 | 367.00 | 155.00 | 115.00 |
| Wittenberg | 2.00 | 7.00 | 60.00 | 2.00 | 7.00 | 60.00 | 403.00 | 973.00 | 375.00 | 155.00 | 115.00 |
| Notre Dame | 1/0 | 19.00 | 80.00 | 2.00 | 7.00 | 60.00 | 512.00 | 1236.00 | 574.00 | 200.00 | 150.00 |
| Purdue | 1/0 | 19.00 | 80.00 | 1/0 | 19.00 | 80.00 | 512.00 | 1236.00 | 596.00 | 200.00 | 150.00 |
| Syracuse | 2/0 | 19.00 | 80.00 | 1.00 | 19.00 | 80.00 | 555.00 | 1340.00 | 664.00 | 225.00 | 170.00 |
| Lafayette | 2/0 | 19.00 | 80.00 | 2/0 | 19.00 | 80.00 | 555.00 | 1340.00 | 720.00 | 225.00 | 170.00 |
| Swarthmore | 3/0 | 19.00 | 80.00 | 1/0 | 19.00 | 80.00 | 603.00 | 1456.00 | 805.00 | 250.00 | 195.00 |
| Davidson | 3/0 | 19.00 | 80.00 | 3/0 | 19.00 | 80.00 | 603.00 | 1456.00 | 874.00 | 250.00 | 195.00 |
| Wake Forest | 4/0 | 19.00 | 80.00 | 2/0 | 19.00 | 80.00 | 658.00 | 1588.00 | 1036.00 | 290.00 | 225.00 |
| Earlham | 4/0 | 19.00 | 80.00 | 4/0 | 19.00 | 80.00 | 658.00 | 1588.00 | 1066.00 | 290.00 | 225.00 |
