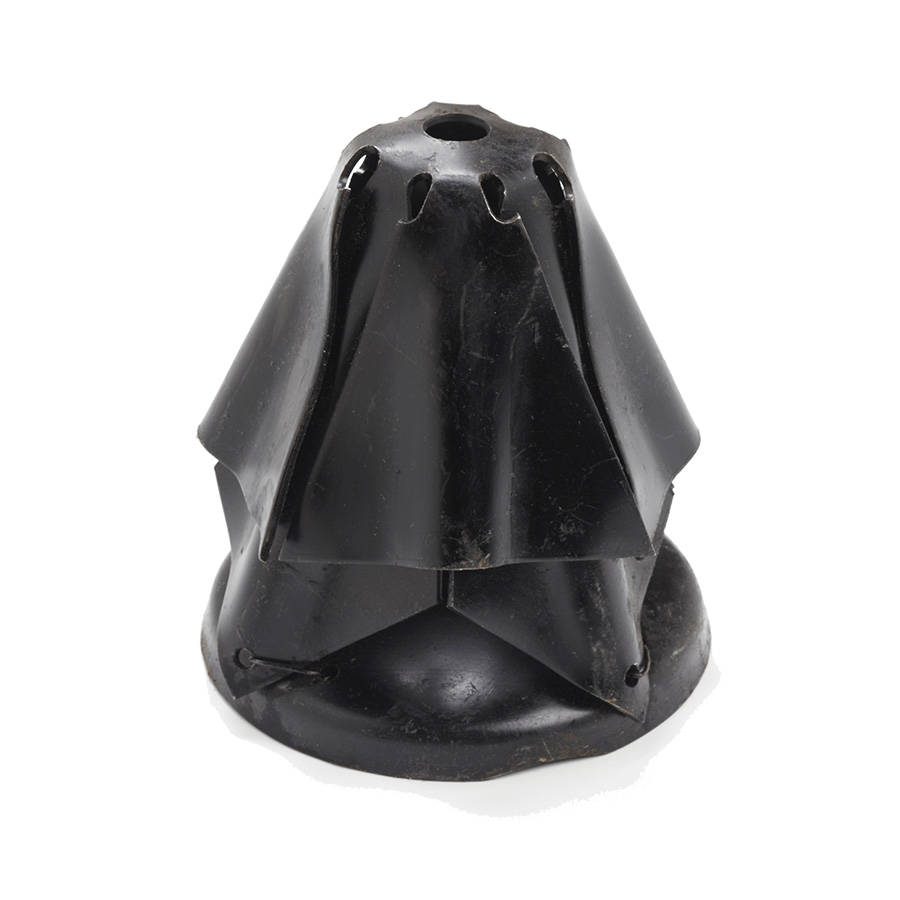

Bust Expanding Anchor

Search

Material: Hot-Dip Galvanized Steel Per ASTM A153 & CSA G164

Notes:

CSA Standard C83-96 item standard; item standard C83.73-96

Steel Dipped in Black Asphalt Paint

Add suffix "G" for Galvanized steel

Catalog No. Hole Size Area Rod Size 3 4 5 6 7 Approx Weight
inch mm sq. inch sq. cm inch mm inch mm inch mm inch mm inch mm inch mm lbs kg
EXA587006 6 152 70 452 1/2 & 5/8 12 & 16 16000 406400 14000 355600 11000 279400 8500 215900 500 12700 5 2.27
EXA3411508 8 203 115 742 5/8 & 3/4 16 & 19 24500 622300 20500 520700 17000 431800 14000 355600 9000 228600 9 4.08
EXA3413508 8 203 135 871 5/8 & 3/4 16 & 19 26500 673100 22000 558800 18500 469900 15000 381000 10000 254000 10 4.54
EXA3420010 10 254 200 1290 5/8 & 3/4 16 & 19 31000 787400 26500 673100 21000 533400 16500 419100 12000 304800 19 8.62
