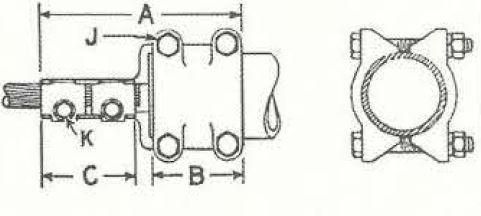

ADAPTER TUBE TO CABLE
Bolted bronze
Material: Copper alloy 131H
Bolts: High strength SI Bronze
For tin plating add Suffix "TP"
Notes
1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. Other sizes available on request
3. J= 1/2"
| Cat. No. | TAP CABLE SIZE1 | RUN | A | B | C | K | |
| Min. | Max. | I.P.S | In | In | In | In | |
| BB2B12C1 | #4 | #1 | 1/2 | 4 3/16 | 2 1/4 | 1 11/16 | 5/16 |
| BB2B12C00 | 1/0 | 2/0 | 1/2 | 4 5/8 | 2 1/4 | 2 1/8 | 5/16 |
| BB2B12C0000 | 2/0 | 4/0 | 1/2 | 4 15/16 | 2 1/4 | 2 7/16 | 5/16 |
| BB2B12C350 | 4/0 | 350 | 1/2 | 5 1/4 | 2 1/4 | 2 3/4 | 3/8 |
| BB2B34C1 | #4 | #1 | 3/4 | 4 3/8 | 2 3/8 | 1 11/16 | 5/16 |
| BB2B34C00 | 1/0 | 2/0 | 3/4 | 4 13/16 | 2 3/8 | 2 1/8 | 5/16 |
| BB2B34C0000 | 2/0 | 4/0 | 3/4 | 5 1/8 | 2 3/8 | 2 7/16 | 5/16 |
| BB2B34C350 | 4/0 | 350 | 3/4 | 5 7/16 | 2 3/8 | 3 1/4 | 3/8 |
| BB2B34C500 | 350 | 500 | 3/4 | 5 15/16 | 2 3/8 | 3 1/4 | 3/8 |
| BB2B1C1 | #4 | #1 | 1 | 4 11/16 | 2 1/2 | 1 11/16 | 5/16 |
| BB2B1C00 | 1/0 | 2/0 | 1 | 5 1/8 | 2 1/2 | 2 1/8 | 5/16 |
| BB2B1C0000 | 2/0 | 4/0 | 1 | 5 7/16 | 2 1/2 | 2 7/16 | 5/16 |
| BB2B1C350 | 4/0 | 350 | 1 | 5 3/4 | 2 1/2 | 2 3/4 | 3/8 |
| BB2B1C500 | 350 | 500 | 1 | 6 1/4 | 2 1/2 | 3 1/4 | 3/8 |
| BB2B1C750 | 500 | 750 | 1 | 6 3/4 | 2 1/2 | 3 3/4 | 7/16 |
| BB2B1C1 | #4 | #1 | 1 1/4 | 4 15/16 | 2 5/8 | 1 11/16 | 5/16 |
| BB2B114C00 | 1/0 | 2/0 | 1 1/4 | 5 3/8 | 2 5/8 | 2 1/8 | 5/16 |
| BB2B114C0000 | 2/0 | 4/0 | 1 1/4 | 5 11/16 | 2 5/8 | 2 7/16 | 5/16 |
| BB2B114C350 | 4/0 | 350 | 1 1/4 | 6 | 2 5/8 | 2 3/4 | 3/8 |
| BB2B114C500 | 350 | 500 | 1 1/4 | 6 1/2 | 2 5/8 | 3 1/4 | 3/8 |
| BB2B114C750 | 500 | 750 | 1 1/4 | 7 | 2 5/8 | 3 3/4 | 7/16 |
| BB2B114C1000 | 750 | 1000 | 1 1/4 | 7 11/16 | 2 5/8 | 4 7/16 | 1/2 |
| BB2B114C00 | 1/0 | 2/0 | 1 1/4 | 5 5/8 | 2 3/4 | 2 1/8 | 5/16 |
| BB2B114C0000 | 2/0 | 4/0 | 1 1/4 | 5 15/16 | 2 3/4 | 2 7/16 | 5/16 |
| BB2B112C350 | 4/0 | 350 | 1 1/2 | 6 1/4 | 2 3/4 | 2 3/4 | 3/8 |
| BB2B112C500 | 350 | 500 | 1 1/2 | 6 3/4 | 2 3/4 | 3 1/4 | 3/8 |
| BB2B112C750 | 500 | 750 | 1 1/2 | 7 1/4 | 2 3/4 | 3 3/4 | 7/16 |
| BB2B112C1000 | 750 | 1000 | 1 1/2 | 7 15/16 | 2 3/4 | 4 7/16 | 1/2 |
| BB2B2C00 | 1/0 | 2/0 | 2 | 5 7/8 | 2 7/8 | 2 1/8 | 5/16 |
| BB2B2C0000 | 2/0 | 4/0 | 2 | 6 3/16 | 2 7/8 | 2 7/16 | 5/16 |
| BB2B2C350 | 4/0 | 350 | 2 | 6 1/2 | 2 7/8 | 2 3/4 | 3/8 |
| BB2B2C500 | 350 | 500 | 2 | 7 | 2 7/8 | 3 1/4 | 3/8 |
| BB2B2C750 | 500 | 750 | 2 | 7 1/2 | 2 7/8 | 3 3/4 | 7/16 |
| BB2B2C1000 | 750 | 1000 | 2 | 8 3/16 | 3 | 4 7/16 | 1/2 |
| BB2B212C0000 | 2/0 | 4/0 | 2 1/2 | 6 7/16 | 3 | 2 7/16 | 5/16 |
| BB2B212C350 | 4/0 | 350 | 2 1/2 | 6 3/4 | 3 | 2 3/4 | 3/8 |
| BB2B212C500 | 350 | 500 | 2 1/2 | 7 1/4 | 3 | 3 1/4 | 3/8 |
| BB2B212C750 | 500 | 750 | 2 1/2 | 7 3/4 | 3 | 3 3/4 | 7/16 |
| BB2B212C1000 | 750 | 1000 | 2 1/2 | 8 7/16 | 3 | 4 7/16 | 1/2 |
| BB2B3C0000 | 2/0 | 4/0 | 3 | 6 7/16 | 3 | 2 7/16 | 5/16 |
| BB2B3C350 | 4/0 | 350 | 3 | 6 3/4 | 3 | 2 3/4 | 3/8 |
| BB2B3C500 | 350 | 500 | 3 | 7 1/4 | 3 | 3 1/4 | 3/8 |
| BB2B3C750 | 500 | 750 | 3 | 7 3/4 | 3 | 3 3/4 | 7/16 |
| BB2B3C1000 | 750 | 1000 | 3 | 8 7/16 | 3 | 4 7/16 | 1/2 |
