Material: All parts hot dip galvanized
Notes:
♦ Made from heavy duty channel steel with malleable cross-arm gain an integral part
♦ Wood pole mounting
♦ *Add suffix “CS” to Cat No. for concrete or steel poles
♦ All parts supplied except mounting bolts
♦ Other sizes on request

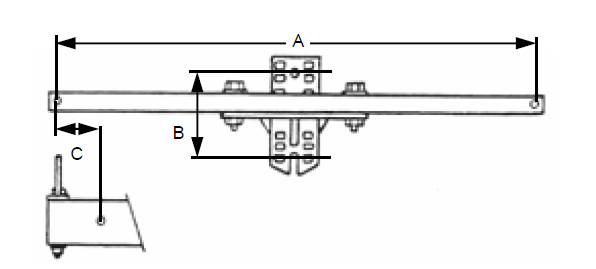

| Cat No. | A Inches |
B Inches |
C Inches |
Shipping Wt. lbs |
Std. Pkg |
| K24-1 | 30 | 8 | 4 | 2900 | 1 |
| K24-2 | 40 | 8 | 4 | 3500 | 1 |
| K24-3 | 52 | 8 | 4 | 4100 | 1 |
