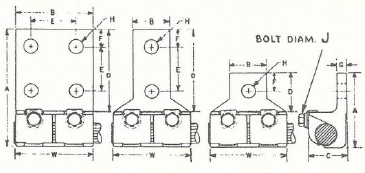

BBL2TCP - Bronze Bolted Terminal Lugs - (1 Cable, 90°)

Search

1. All cable sizes shown are stranded; 350 and above are kcmil sizes.
2. Holes in tongue.
3. Other sizes available on request.
4. E = 1 3/4"

 Cat. No. CABLE SIZE1  H.T.2       A        B        C        D       F       G       H      J  W
Min. Max. In In In In In In In In In
BBL2TC1P138 #4 #1 1 1  3/4   3/4  13/16  13/16   3/8   3/16  13/32   5/16 1  3/4
BBL2TC00P138 1/0 2/0 1 2  1/16  15/16  13/16 1        7/16   7/32  13/32   5/16 2  1/8
BBL2TC00PN2 1/0 2/0 2 4  3/16 1  1/16  13/16 3  1/8   5/8   7/32   9/16   5/16 2  1/8
BBL2TC00PN1 2/0 4/0 1 2  5/16 1  1/16 1      1  1/8   9/16   1/4   9/16   5/16 2  7/16
BBL2TC00P238 2/0 4/0 2 4  7/16 1  1/16 1      3  1/4   7/16   1/4  13/32   5/16 2  7/16
BBL2TC00PN2 2/0 4/0 2 4  7/16 1  1/16 1      3  1/4   5/8   1/4   9/16   5/16 2  7/16
BBL2TC350PN1 4/0 350 1 2 11/16 1  1/4 1  1/4 1  3/8   9/16   9/32   9/16   3/8 2  3/4
BBL2TC350PN2 4/0 350 2 4  5/8 1  1/4 1  1/4 3  5/16   5/8   9/32   9/16   3/8 2  3/4
BBL2TC350P3N4 4/0 350 4 4  5/8 3      1  1/4 3  5/16   5/8   9/32   9/16   3/8 2  3/4
BBL2TC500PN1 350 500 1 3  1/8 1  7/16 1  7/16 1  5/8   3/4   5/16   9/16   3/8 3  1/4
BBL2TC500PN2 350 500 2 4  7/8 1  7/16 1  7/16 3  3/8   5/8   5/16   9/16   3/8 3  1/4
BBL2TC500P3N4 350 500 4 4  7/8 3      1  7/16 3  3/8   5/8   5/16   9/16   3/8 3  1/4
BBL2TC750PN1 500 750 1 3  9/16 1 11/16 1  3/4 1 13/16   3/4   3/8   9/16   7/16 3  3/4
BBL2TC750PN2 500 750 2 5  1/8 1 11/16 1  3/4 3  3/8   5/8   3/8   9/16   7/16 3  3/4
BBL2TC750P3N4 500 750 4 5  1/8 3      1  3/4 3  3/8   5/8   3/8   9/16   7/16 3  3/4
BBL2TC1000PN1 750 1000 1 3 15/16 1 15/16 1 15/16 1 15/16   7/8   7/16   9/16   1/2 4  7/16
BBL2TC1000PN2 750 1000 2 5  3/8 1 15/16 1 15/16 3  3/8   5/8   7/16   9/16   1/2 4  7/16
BBL2TC1000P3N4 750 1000 4 5  3/8 3      1 15/16 3  3/8   5/8   7/16   9/16   1/2 4  7/16
