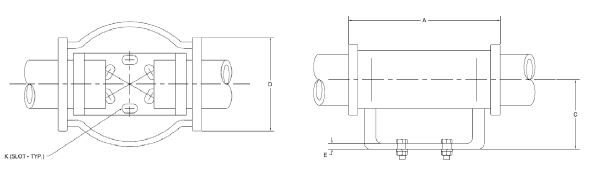

CATALOG NUMBER | I.P.S. SIZE | DIMENSIONS (INCHES) | ||||
A | C | D | E | K | ||
3” BOLT CIRCLE BASES | ||||||
AWEXBS2 | 2.000 | 11.000 | 2.750 | 4.250 | 0.375 | .563 x .750 |
AWEXBS52 | 2.500 | 11.000 | 3.125 | 4.250 | 0.375 | .563 x .750 |
AWEXBS3 | 3.000 | 11.000 | 3.625 | 4.250 | 0.375 | .563 x .750 |
AWEXBS72 | 3.500 | 11.000 | 4.000 | 4.250 | 0.375 | .563 x .750 |
AWEXBS4 | 4.000 | 11.000 | 4.500 | 4.250 | 0.375 | .563 x .750 |
AWEXBS5 | 5.000 | 11.000 | 4.875 | 4.250 | 0.375 | .563 x .750 |
5” BOLT CIRCLE BASES | ||||||
AWEXBS2 | 2.000 | 14.125 | 2.750 | 6.250 | 0.500 | .688 x .875 |
AWEXBS52 | 2.500 | 14.125 | 3.125 | 6.250 | 0.500 | .688 x .875 |
AWEXBS3 | 3.000 | 14.125 | 3.625 | 6.250 | 0.500 | .688 x .875 |
AWEXBS72 | 3.500 | 14.125 | 4.000 | 6.250 | 0.500 | .688 x .875 |
AWEXBS4 | 4.000 | 14.375 | 4.500 | 6.250 | 0.500 | .688 x .875 |
AWEXBS5 | 5.000 | 14.375 | 4.875 | 6.250 | 0.500 | .688 x .875 |
7” BOLT CIRCLE BASES | ||||||
AWEXBS2 | 2.000 | 16.000 | 2.750 | 8.500 | 0.500 | .812 x 1.000 |
AWEXBS52 | 2.500 | 16.000 | 3.125 | 8.500 | 0.500 | .812 x 1.000 |
AWEXBS3 | 3.000 | 16.000 | 3.625 | 8.500 | 0.500 | .812 x 1.000 |
AWEXBS72 | 3.500 | 16.000 | 4.000 | 8.500 | 0.500 | .812 x 1.000 |
AWEXBS4 | 4.000 | 16.000 | 4.500 | 8.500 | 0.500 | .812 x 1.000 |
AWEXBS5 | 5.000 | 16.000 | 4.875 | 8.500 | 0.500 | .812 x 1.000 |
Aluminium Welded Expansion to Bus Support
