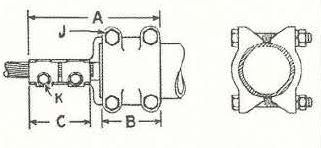

ADAPTER, TUBE TO CABLE
Material: A356T6 Aluminum
Bolts: 2024 AL alloy
for galvanized GR5 bolts/hardware add suffix "GH"
For Stainless steel bolts/hardware add suffix "SSH"
Other options available
Notes
1. All cable sizes shown are stranded; 350 and above are kcmil sizes.
2. Other sizes available
3. J=1/2"
| CATALOG NUMBER |
TAP CABLE SIZE1 | RUN | A | B | C | K | |
| MIN. | MAX. | I.P.S. | In | In | In | In | |
| AB2B12C1 | #4 | #1 | 1/2 | 4 13/16 | 2 1/4 | 1 11/16 | 5/16 |
| AB2B12C0000 | 2/0 | 4/0 | 1/2 | 4 15/16 | 2 1/4 | 2 7/16 | 5/16 |
| AB2B12C350 | 4/0 | 350 | 1/2 | 5 1/4 | 2 1/4 | 2 3/4 | 3/8 |
| AB2B34C1 | #4 | #1 | 3/4 | 4 3/8 | 2 3/8 | 1 11/16 | 5/16 |
| AB2B34C0000 | 2/0 | 4/0 | 3/4 | 5 1/8 | 2 3/8 | 2 7/16 | 5/16 |
| AB2B34C350 | 4/0 | 350 | 3/4 | 5 7/16 | 2 3/8 | 3 1/4 | 3/8 |
| AB2B34C500 | 350 | 500 | 3/4 | 5 15/16 | 2 3/8 | 3 1/4 | 3/8 |
| AB2B1C1 | #4 | #1 | 1 | 4 11/16 | 2 1/2 | 1 11/16 | 5/16 |
| AB2B1C0000 | 2/0 | 4/0 | 1 | 5 7/16 | 2 1/2 | 2 7/16 | 5/16 |
| AB2B1C350 | 4/0 | 350 | 1 | 5 3/4 | 2 1/2 | 2 3/4 | 3/8 |
| AB2B1C500 | 350 | 500 | 1 | 6 1/4 | 2 1/2 | 3 1/4 | 3/8 |
| AB2B1C750 | 500 | 750 | 1 | 6 3/4 | 2 1/2 | 3 3/4 | 7/16 |
| AB2B114C0000 | 2/0 | 4/0 | 1 1/4 | 5 11/16 | 2 5/8 | 2 7/16 | 5/16 |
| AB2B114C350 | 4/0 | 350 | 1 1/4 | 6 | 2 5/8 | 2 3/4 | 3/8 |
| AB2B114C500 | 350 | 500 | 1 1/4 | 6 1/2 | 2 5/8 | 3 1/4 | 3/8 |
| AB2B114C750 | 500 | 750 | 1 1/4 | 7 | 2 5/8 | 3 3/4 | 7/16 |
| AB2B114C1000 | 750 | 1000 | 1 1/4 | 7 11/16 | 2 5/8 | 4 7/16 | 1/2 |
| AB2B112C0000 | 2/0 | 4/0 | 1 1/2 | 5 15/16 | 2 3/4 | 2 7/16 | 5/16 |
| AB2B112C350 | 4/0 | 350 | 1 1/2 | 6 1/4 | 2 3/4 | 2 3/4 | 3/8 |
| AB2B112C500 | 350 | 500 | 1 1/2 | 6 3/4 | 2 3/4 | 3 1/4 | 3/8 |
| AB2B112C750 | 500 | 750 | 1 1/2 | 7 1/4 | 2 3/4 | 3 3/4 | 7/16 |
| AB2B112C1000 | 750 | 1000 | 1 1/2 | 7 15/16 | 2 3/4 | 4 7/16 | 1/2 |
| AB2B2C0000 | 2/0 | 4/0 | 2 | 6 3/16 | 2 7/8 | 2 7/16 | 5/16 |
| AB2B2C350 | 4/0 | 350 | 2 | 6 1/2 | 2 7/8 | 2 3/4 | 3/8 |
| AB2B2C500 | 350 | 500 | 2 | 7 | 2 7/8 | 3 1/4 | 3/8 |
| AB2B2C750 | 500 | 750 | 2 | 7 1/2 | 2 7/8 | 3 3/4 | 7/16 |
| AB2B2C1000 | 750 | 1000 | 2 | 8 3/16 | 2 7/8 | 4 7/16 | 1/2 |
| AB2B212C0000 | 2/0 | 4/0 | 2 1/2 | 6 7/16 | 3 | 2 7/16 | 5/16 |
| AB2B212C350 | 4/0 | 350 | 2 1/2 | 6 3/4 | 3 | 2 3/4 | 3/8 |
| AB2B212C500 | 350 | 500 | 2 1/2 | 7 1/4 | 3 | 3 1/4 | 3/8 |
| AB2B212C750 | 500 | 750 | 2 1/2 | 7 3/4 | 3 | 3 3/4 | 7/16 |
| AB2B212C1000 | 750 | 1000 | 2 1/2 | 8 7/16 | 3 | 4 7/16 | 1/2 |
| AB2B3C0000 | 2/0 | 4/0 | 3 | 6 7/16 | 3 | 2 7/16 | 5/16 |
| AB2B3C350 | 4/0 | 350 | 3 | 6 3/4 | 3 | 2 3/4 | 3/8 |
| AB2B3C500 | 350 | 500 | 3 | 7 1/4 | 3 | 3 1/4 | 3/8 |
| AB2B3C750 | 500 | 750 | 3 | 7 3/4 | 3 | 3 3/4 | 7/16 |
| AB2B3C1000 | 750 | 1000 | 3 | 8 7/16 | 3 | 4 7/16 | 1/2 |
