| BB1TAC | BB1D0TAC |

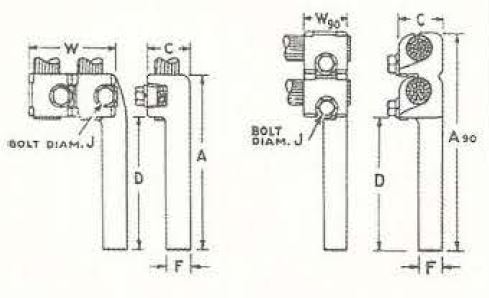

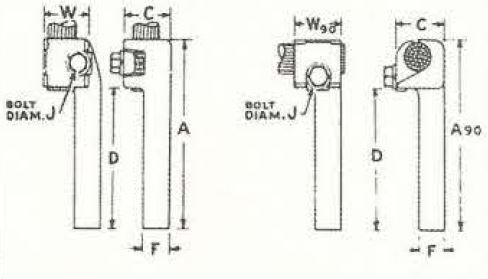

| TERMINAL ADAPTERS, ONE CABLE | TERMINAL ADAPTERS, TWO CABLES |
| BB1T0TAC | BB1Q0TAC |

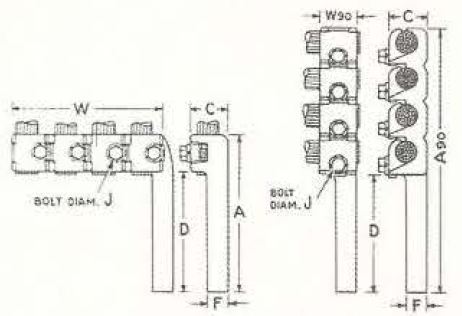

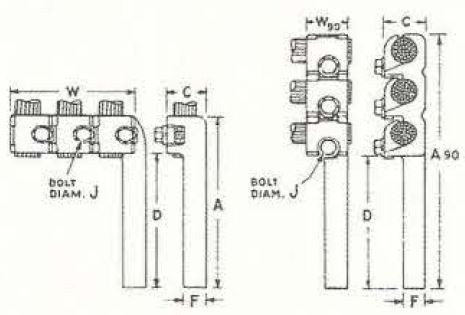

| TERMINAL ADAPTERS, THREE CABLES | TERMINAL ADAPTERS, FOUR CABLES |
Notes
1. All cables sizes shownn are stranded, 350 and above are kcmil sizes
2. Other sizes available on request
3. For Tee connector version add "T" after BB1
| Cat. No. |
CABLE SIZE1 | A | C | D | F | J | W | |
| Min. | Max. | In | In | In | In | In | In | |
| BB1TA58418C350 | 4/0 | 350 | 5 1/2 | 1 1/4 | 4 1/8 | 5/8 | 3/8 | 1 5/16 |
| BB1TA1316412C500 | 350 | 500 | 6 1/8 | 1 7/16 | 4 1/2 | 13/16 | 3/8 | 1 1/2 |
| BB1TA7165316C750 | 500 | 750 | 7 1/16 | 1 3/4 | 5 3/16 | 15/16 | 7/16 | 1 3/4 |
| BB1TA11451116C1000 | 750 | 1000 | 7 7/8 | 1 15/16 | 5 11/16 | 1 1/4 | 1/2 | 2 |
| BB1D0TA58418C350 | 4/0 | 350 | 5 1/2 | 1 1/4 | 4 1/8 | 5/8 | 3/8 | 2 5/8 |
| BB1D0TA1316412C500 | 350 | 500 | 6 1/8 | 1 7/16 | 4 1/2 | 13/16 | 3/8 | 3 |
| BB1D0TA7165316C750 | 500 | 750 | 7 1/16 | 1 3/4 | 5 3/16 | 15/16 | 7/16 | 3 7/16 |
| BB1D0TA11451116C1000 | 750 | 1000 | 7 7/8 | 1 15/16 | 5 11/16 | 1 1/4 | 1/2 | 4 |
| BB1T0TA58418C350 | 4/0 | 350 | 5 1/2 | 1 1/4 | 4 1/8 | 5/8 | 3/8 | 3 15/16 |
| BB1T0TA1316412C500 | 350 | 500 | 6 1/8 | 1 7/16 | 4 1/2 | 13/16 | 3/8 | 4 1/2 |
| BB1T0TA7165316C750 | 500 | 750 | 7 1/16 | 1 3/4 | 5 3/16 | 15/16 | 7/16 | 5 1/8 |
| BB1T0TA11451116C1000 | 750 | 1000 | 7 7/8 | 1 15/16 | 5 11/16 | 1 1/4 | 1/2 | 6 |
| BB1Q0TA58418C350 | 4/0 | 350 | 5 1/2 | 1 1/4 | 4 1/8 | 5/8 | 3/8 | 5 1/4 |
| BB1Q0TA1316412C500 | 350 | 500 | 6 1/8 | 1 7/16 | 4 1/2 | 13/16 | 3/8 | 6 |
| BB1Q0TA7165316C750 | 500 | 750 | 7 1/16 | 1 3/4 | 5 3/16 | 15/16 | 7/16 | 6 13/16 |
| BB1Q0TA11451116C1000 | 750 | 1000 | 7 7/8 | 1 15/16 | 5 11/16 | 1 1/4 | 1/2 | 8 |
