| BBBB | BBBBL |

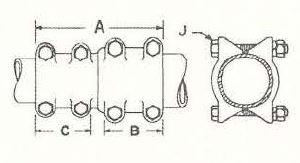

| COUPLER TUBE TO TUBE | COUPLER TUBE TO TUBE ANGLED |
Bolted bronze
Material: Copper alloy 131H
Bolts: High strength SI Bronze
For tin plating add Prefix "T"
For Angle replace L90 with L(angle)
Notes
1. Suffix '6' indicates 3/8" bolt.
2. Other sizes available on request
| Cat. No. | I.P.S. | A | B | C | J | |
| RUN | TAP | In | In | In | In | |
| BBB12B12 | 1/2 | 1/2 | 4 3/4 | 2 1/4 | 2 1/4 | 1/2 |
| BBB34B12 | 3/4 | 1/2 | 5 | 2 3/8 | 2 1/4 | 1/2 |
| BBB34B34 | 3/4 | 3/4 | 5 1/8 | 2 3/8 | 2 3/8 | 1/2 |
| BBB1B12 | 1 | 1/2 | 5 1/4 | 2 1/2 | 2 1/4 | 1/2 |
| BBB1B34 | 1 | 3/4 | 5 3/8 | 2 1/2 | 2 3/8 | 1/2 |
| BBB1B1 | 1 | 1 | 5 1/2 | 2 1/2 | 2 1/2 | 1/2 |
| BBB114B34 | 1 1/4 | 3/4 | 5 5/8 | 2 5/8 | 2 3/8 | 1/2 |
| BBB114B1 | 1 1/4 | 1 | 5 3/4 | 2 5/8 | 2 1/2 | 1/2 |
| BBB114B114 | 1 1/4 | 1 1/4 | 5 7/8 | 2 5/8 | 2 5/8 | 1/2 |
| BBB112B34 | 1 1/2 | 3/4 | 5 7/8 | 2 3/4 | 2 3/8 | 1/2 |
| BBB112B1 | 1 1/2 | 1 | 6 | 2 3/4 | 2 1/2 | 1/2 |
| BBB112B114 | 1 1/2 | 1 1/4 | 6 1/8 | 2 3/4 | 2 5/8 | 1/2 |
| BBB112B112 | 1 1/2 | 1 1/2 | 6 1/4 | 2 3/4 | 2 3/4 | 1/2 |
| BBB2B1 | 2 | 1 | 6 1/4 | 2 7/8 | 2 1/2 | 1/2 |
| BBB2B114 | 2 | 1 1/4 | 6 3/8 | 2 7/8 | 2 5/8 | 1/2 |
| BBB2B112 | 2 | 1 1/2 | 6 1/2 | 2 7/8 | 2 3/4 | 1/2 |
| BBB2B2 | 2 | 2 | 6 5/8 | 2 7/8 | 2 7/8 | 1/2 |
| BBB212B114 | 2 1/2 | 1 1/4 | 6 5/8 | 3 | 2 5/8 | 1/2 |
| BBB212B112 | 2 1/2 | 1 1/2 | 6 3/4 | 3 | 2 3/4 | 1/2 |
| BBB212B2 | 2 1/2 | 2 | 6 7/8 | 3 | 2 7/8 | 1/2 |
| BBB212B212 | 2 1/2 | 2 1/2 | 7 | 3 | 3 | 1/2 |
| BBB3B112 | 3 | 1 1/2 | 6 3/4 | 3 | 2 3/4 | 1/2 |
| BBB3B2 | 3 | 2 | 6 7/8 | 3 | 2 7/8 | 1/2 |
| BBB3B212 | 3 | 2 1/2 | 7 | 3 | 3 | 1/2 |
| BBB3B3 | 3 | 3 | 7 3/4 | 3 1/4 | 3 1/4 | 5/8 |
| BBB312B112 | 3 1/2 | 1 1/2 | 7 1/4 | 3 1/4 | 2 3/4 | 1/2 |
| BBB312B2 | 3 1/2 | 2 | 7 3/8 | 3 1/4 | 2 7/8 | 1/2 |
| BBB312B212 | 3 1/2 | 2 1/2 | 7 1/2 | 3 1/4 | 3 | 1/2 |
| BBB312B3 | 3 1/2 | 3 | 8 1/4 | 3 1/2 | 3 1/4 | 5/8 |
| BBB312B312 | 3 1/2 | 3 1/2 | 8 1/2 | 3 1/2 | 3 1/2 | 5/8 |
| BBB4B2 | 4 | 2 | 7 3/4 | 3 1/2 | 2 7/8 | 1/2 |
| BBB4B212 | 4 | 2 1/2 | 7 7/8 | 3 1/2 | 3 | 1/2 |
| BBB4B3 | 4 | 3 | 8 1/2 | 3 3/4 | 3 1/4 | 5/8 |
| BBB4B312 | 4 | 3 1/2 | 8 3/4 | 3 3/4 | 3 1/2 | 5/8 |
| BBB4B4 | 4 | 4 | 9 | 3 3/4 | 3 3/4 | 5/8 |
| BBB12B12L90 | 1/2 | 1/2 | 3 | 1 3/4 | 3/8 | |
| BBB12B12L90 | 1/2 | 1/2 | 3 1/4 | 2 | 1/2 | |
| BBB34B34L90 | 3/4 | 3/4 | 3 3/8 | 2 | 3/8 | |
| BBB34B34L90 | 3/4 | 3/4 | 3 5/8 | 2 1/4 | 1/2 | |
| BBB1B1L90 | 1 | 1 | 3 3/4 | 2 1/4 | 3/8 | |
| BBB1B1L90 | 1 | 1 | 4 | 2 1/2 | 1/2 | |
| BBB114B114L90 | 1 1/4 | 1 1/4 | 4 1/2 | 2 3/4 | 1/2 | |
| BBB112B112L90 | 1 1/2 | 1 1/2 | 5 | 3 | 1/2 | |
| BBB2B2L90 | 2 | 2 | 5 1/2 | 3 1/4 | 1/2 | |
| BBB112B212L90 | 1 1/2 | 2 1/2 | 6 | 3 1/2 | 1/2 | |
| BBB3B3L90 | 3 | 3 | 6 3/4 | 3 3/4 | 5/8 | |
| BBB312B312L90 | 3 1/2 | 3 1/2 | 7 1/2 | 4 | 5/8 | |
| BBB4B4L90 | 4 | 4 | 8 1/2 | 4 1/2 | 5/8 | |
