ADAPTER, TUBE TO CABLE
Material: A356T6 Aluminum
Bolts: 2024 AL alloy
for galvanized GR5 bolts/hardware add suffix "GH"
For Stainless steel bolts/hardware add suffix "SSH"
Other options available
Notes
1. All cable sizes shown are stranded; 350 and above are kcmil sizes.
2. Other sizes available

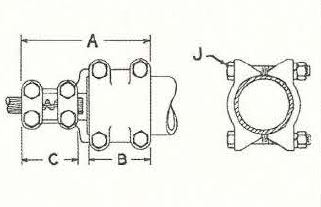

3. J=1/2"
| CATALOG NUMBER |
TAP | RUN | A | B | C | |
| CABLE SIZE1 | CABLE SIZE1 | I.P.S. | In | In | In | |
| ABB12C00 | #4 | 2/0 | 1/2 | 4 15/16 | 2 1/4 | 2 7/16 |
| ABB12C350 | 2/0 | 350 | 1/2 | 5 5/16 | 2 1/4 | 2 13/16 |
| ABB34C00 | #4 | 2/0 | 3/4 | 5 3/16 | 2 3/8 | 2 7/16 |
| ABB34C350 | 2/0 | 350 | 3/4 | 5 9/16 | 2 3/8 | 2 13/16 |
| ABB34C600 | 350 | 600 | 3/4 | 5 9/16 | 2 3/8 | 2 13/16 |
| ABB1C00 | #4 | 2/0 | 1 | 5 7/16 | 2 1/2 | 2 7/16 |
| ABB1C350 | 2/0 | 350 | 1 | 5 13/16 | 2 1/2 | 2 13/16 |
| ABB1C600 | 350 | 600 | 1 | 5 13/16 | 2 1/2 | 2 13/16 |
| ABB1C1000 | 600 | 1000 | 1 | 6 | 2 1/2 | 3 |
| ABB114C00 | #4 | 2/0 | 1 1/4 | 5 11/16 | 2 5/8 | 2 7/16 |
| ABB114C350 | 2/0 | 350 | 1 1/4 | 6 1/16 | 2 5/8 | 2 13/16 |
| ABB114C600 | 350 | 600 | 1 1/4 | 6 1/16 | 2 5/8 | 2 13/16 |
| ABB114C1000 | 600 | 1000 | 1 1/4 | 6 1/4 | 2 5/8 | 3 |
| ABB114C1500 | 1000 | 1500 | 1 1/4 | 6 7/16 | 2 5/8 | 3 3/16 |
| ABB112C00 | #4 | 2/0 | 1 1/2 | 5 15/16 | 2 3/4 | 2 7/16 |
| ABB112C350 | 2/0 | 350 | 1 1/2 | 6 5/16 | 2 3/4 | 2 13/16 |
| ABB112C600 | 350 | 600 | 1 1/2 | 6 5/16 | 2 3/4 | 2 13/16 |
| ABB112C1000 | 600 | 1000 | 1 1/2 | 6 1/2 | 2 3/4 | 3 |
| ABB112C1500 | 1000 | 1500 | 1 1/2 | 6 11/16 | 2 3/4 | 3 3/16 |
| ABB112C2000 | 1500 | 2000 | 1 1/2 | 6 7/8 | 2 3/4 | 3 3/8 |
| ABB2C350 | 2/0 | 350 | 2 | 6 9/16 | 2 7/8 | 2 13/16 |
| ABB2C600 | 350 | 600 | 2 | 6 9/16 | 2 7/8 | 2 13/16 |
| ABB2C1000 | 600 | 1000 | 2 | 6 3/4 | 2 7/8 | 3 |
| ABB2C1500 | 1000 | 1500 | 2 | 6 15/16 | 2 7/8 | 3 3/16 |
| ABB2C2000 | 1500 | 2000 | 2 | 7 1/8 | 2 7/8 | 3 3/8 |
| ABB212C350 | 2/0 | 350 | 2 1/2 | 6 13/16 | 3 | 2 13/16 |
| ABB212C600 | 350 | 600 | 2 1/2 | 6 13/16 | 3 | 2 13/16 |
| ABB212C1000 | 600 | 1000 | 2 1/2 | 7 | 3 | 3 |
| ABB212C1500 | 1000 | 1500 | 2 1/2 | 7 3/16 | 3 | 3 3/16 |
| ABB212C2000 | 1500 | 2000 | 2 1/2 | 7 3/8 | 3 | 3 3/8 |
| ABB3C350 | 2/0 | 350 | 3 | 6 13/16 | 3 | 2 13/16 |
| ABB3C600 | 350 | 600 | 3 | 6 13/16 | 3 | 2 13/16 |
| ABB3C1000 | 600 | 1000 | 3 | 7 | 3 | 3 |
| ABB3C1500 | 1000 | 1500 | 3 | 7 3/16 | 3 | 3 3/16 |
| ABB3C2000 | 1500 | 2000 | 3 | 7 3/8 | 3 | 3 3/8 |
| ABB312C600 | 350 | 600 | 3 1/2 | 7 1/16 | 3 1/4 | 2 13/16 |
| ABB312C1000 | 600 | 1000 | 3 1/2 | 7 1/4 | 3 1/4 | 3 |
| ABB312C1500 | 1000 | 1500 | 3 1/2 | 7 11/16 | 3 1/4 | 3 3/16 |
| ABB312C2000 | 1500 | 2000 | 3 1/2 | 7 7/8 | 3 1/4 | 3 3/8 |
| ABB4C600 | 350 | 600 | 4 | 7 5/16 | 3 1/2 | 2 13/16 |
| ABB4C1000 | 600 | 1000 | 4 | 7 1/2 | 3 1/2 | 3 |
| ABB4C1500 | 1000 | 1500 | 4 | 7 15/16 | 3 1/2 | 3 3/16 |
| ABB4C2000 | 1500 | 2000 | 4 | 8 1/8 | 3 1/2 | 3 3/8 |
