CATALOG NUMBER |
CONDUCTOR RANGE | DIE REF. |
L | A | |
AAC | ACSR | inches | |||
ACC2PT14 | #2 (7) | #2 (6/1) | 0.640 | 4.000 | 0.250 |
ACC0PT38 | 1/0 (7), (19) | - | 0.840 | 6.000 | 0.375 |
ACC0RPT38 | - | 1/0 (6/1) | 0.840 | 6.000 | 0.375 |
ACC00PT38 | 2/0 (7), (19) | - | 0.840 | 6.000 | 0.375 |
ACC00RPT38 | - | 2/0 (6/1) | 0.840 | 6.000 | 0.375 |
ACC000RPT38 | 3/0 (7), (19) | - | 0.840 | 6.000 | 0.375 |
ACC0000PT38 | 4/0 (7), (19) | 3/0 (6/1) | 0.840 | 6.000 | 0.375 |
ACC0000RPT38 | - | 4/0 (6/1) | 0.840 | 6.000 | 0.375 |
ACC266PT58 | 266.8 (7), (19) | - | 1.125 | 6.000 | 0.625 |
ACC300PT58 | 300 (7), (19) | 266.8 (18/1) | 1.125 | 6.000 | 0.625 |
ACC266RPT58 | - | 266.8 (26/7), 300 (18/1) | 1.125 | 6.000 | 0.625 |
ACC336PT58 | 336.4 (19), (37) | 336.4 (36/1) | 1.125 | 6.000 | 0.625 |
ACC350PT58 | 350 (19), (37) | 300 (26/7), 336.4 (18/1) | 1.125 | 6.000 | 0.625 |
ACC397PT58 | 397.5 (19) 400 (19), (37) |
336.4 (30/7), (26/7) 397.5 (18/1), (36/1) |
1.125 | 6.000 | 0.625 |
ACC477PT58 | 477 (19), (37) | 397.5 (26/7) | 1.312 | 6.000 | 0.625 |
ACC500PT58 | 500 (19), (37) | 477 (18/1), (36/1) | 1.312 | 6.000 | 0.625 |
ACC556PT58 | 550 (61) 556.5 (19), (37) |
477 (26/7) | 1.312 | 6.000 | 0.625 |
ACC600PT34 | 600 (61) | 556.5 (18/1), (36/1) | 1.500 | 6.000 | 0.750 |
ACC650PT34 | 630 (19), (37) 650 (61) |
556.5 (26/7), 605 (36/1) 636 (18/1), (36/1) |
1.500 | 6.000 | 0.750 |
ACC700PT34 | 700 (61), (91) | 605 (26/7), (54/7) 666.6 (36/1) |
1.500 | 6.000 | 0.750 |
ACC715RPT34 | - | 636 (26/7) 715.5 (36/1) |
1.500 | 6.000 | 0.750 |
ACC750PT34 | 750 (37),(61),(91) | 666 (54/7) | 1.500 | 6.000 | 0.750 |
ACC715RPT1 | 795 (37), (61) 800 (61) |
715.5 (54/7) | 1.843 | 6.000 | 1.000 |
ACC795PT1 | - | 715.5 (26/7) 795 (36/1), (45/7) |
1.843 | 6.000 | 1.000 |
ACC900PT1 | 874.5 (37), (61) 900 (61), (91) |
795 (26/7), (54/7) 874.5 (36/1) |
1.843 | 6.000 | 1.000 |
ACC954PT1 | 954 (37), (61) | 900 (45/7) | 1.843 | 6.000 | 1.000 |
ACC1033PT1 | 1000 (61), (91) 1033.5 (37), (61) |
900 (54/7) 954 (45/7) |
1.843 | 6.000 | 1.000 |

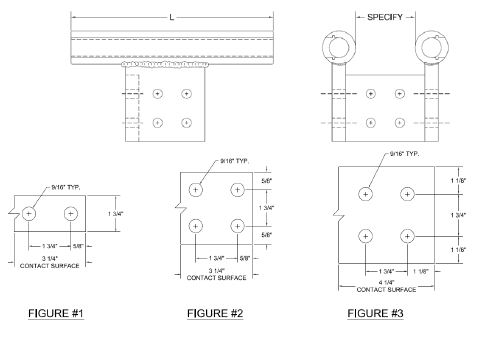

Aluminium Compression Cable Spacer to Pad
