Notes
1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. SOL=solid
3. Other sizes available on request
4. K= 1/2

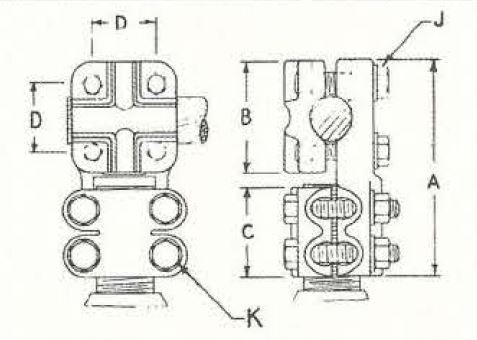

| Cat. No. | CABLE SIZE1 | Stud Size | A | B | C | D | J | |
| Min. | Max. | In | In | In | In | In | ||
| BBST1TH14UC250 | 6 SOL. | 250 | 1-14 | 4 5/8 | 1 7/8 | 2 1/4 | 1 1/16 | 3/8 |
| BBST1TH14UC500 | 6 SOL. | 500 | 1-14 | 4 7/8 | 2 1/8 | 2 1/4 | 1 3/8 | 3/8 |
| BBST1TH14UC1000 | 2 SOL. | 1000 | 1-14 | 5 5/8 | 2 7/8 | 2 1/4 | 1 7/8 | 1/2 |
| BBST118TH12UC250 | 6 SOL. | 250 | 1 1/8-12 | 4 5/8 | 1 7/8 | 2 1/4 | 1 1/16 | 3/8 |
| BBST118TH12UC500 | 6 SOL. | 500 | 1 1/8-12 | 4 7/8 | 2 1/8 | 2 1/4 | 1 3/8 | 3/8 |
| BBST118TH12UC1000 | 2 SOL. | 1000 | 1 1/8-12 | 5 5/8 | 2 7/8 | 2 1/4 | 1 7/8 | 1/2 |
| BBST114TH12UC250 | 6 SOL. | 250 | 1 1/4-12 | 4 7/8 | 1 7/8 | 2 1/2 | 1 1/16 | 3/8 |
| BBST114TH12UC500 | 6 SOL. | 500 | 1 1/4-12 | 5 1/8 | 2 1/8 | 2 1/2 | 1 3/8 | 3/8 |
| BBST114TH12UC1000 | 2 SOL. | 1000 | 1 1/4-12 | 5 7/8 | 2 7/8 | 2 1/2 | 1 7/8 | 1/2 |
| BBST112TH12UC250 | 6 SOL. | 250 | 1 1/2-12 | 4 7/8 | 1 7/8 | 2 1/2 | 1 1/16 | 3/8 |
| BBST112TH12UC500 | 6 SOL. | 500 | 1 1/2-12 | 5 1/8 | 2 1/8 | 2 1/2 | 1 3/8 | 3/8 |
| BBST112TH12UC1000 | 2 SOL. | 1000 | 1 1/2-12 | 5 7/8 | 2 7/8 | 2 1/2 | 1 7/8 | 1/2 |
| BBST112TH12UC2000 | 4/0 | 2000 | 1 1/2-12 | 6 3/8 | 3 3/8 | 2 1/2 | 2 3/8 | 3/8 |
| BBST2TH12UC500 | 6 SOL. | 500 | 2-12 | 5 1/8 | 2 1/8 | 2 1/2 | 1 3/8 | 3/8 |
| BBST2TH12UC1000 | 2 SOL. | 1000 | 2-12 | 5 7/8 | 2 7/8 | 2 1/2 | 1 7/8 | 1/2 |
| BBST2TH12UC2000 | 4/0 | 2000 | 2-12 | 6 3/8 | 3 3/8 | 2 1/2 | 2 3/8 | 1/2 |
| BBST214TH12UC500 | 6 SOL. | 500 | 2 1/4-12 | 5 1/8 | 2 1/8 | 2 1/2 | 1 3/8 | 3/8 |
| BBST214TH12UC1000 | 2 SOL. | 1000 | 2 1/4-12 | 5 7/8 | 2 7/8 | 2 1/2 | 1 7/8 | 1/2 |
| BBST214TH12UC2000 | 4/0 | 2000 | 2 1/4-12 | 6 3/8 | 3 3/8 | 2 1/2 | 2 3/8 | 1/2 |
| BBST212TH12UC500 | 6 SOL. | 500 | 2 1/2-12 | 5 1/8 | 2 1/8 | 2 1/2 | 1 3/8 | 3/8 |
| BBST212TH12UC1000 | 2 SOL. | 1000 | 2 1/2-12 | 5 7/8 | 2 7/8 | 2 1/2 | 1 7/8 | 1/2 |
| BBST212TH12UC2000 | 4/0 | 2000 | 2 1/2-12 | 6 3/8 | 3 3/8 | 2 1/2 | 2 3/8 | 1/2 |
| BBST234TH12UC500 | 6 SOL. | 500 | 2 3/4-12 | 5 5/8 | 2 1/8 | 3 | 1 3/8 | 3/8 |
| BBST234TH12UC1000 | 2 SOL. | 1000 | 2 3/4-12 | 6 3/8 | 2 7/8 | 3 | 1 7/8 | 1/2 |
| BBST234TH12UC2000 | 4/0 | 2000 | 2 3/4-12 | 6 7/8 | 3 3/8 | 3 | 2 3/8 | 1/2 |
| BBST3TH12UC500 | 6 SOL. | 500 | 3-12 | 5 5/8 | 2 1/8 | 3 | 1 3/8 | 3/8 |
| BBST3TH12UC1000 | 2 SOL. | 1000 | 3-12 | 6 3/8 | 2 7/8 | 3 | 1 7/8 | 1/2 |
| BBST3TH12UC2000 | 4/0 | 2000 | 3-12 | 6 7/8 | 3 3/8 | 3 | 2 3/8 | 1/2 |
