Class ANSI | TR 208 | TR 210 | TR 214 | TR 216 | TR 286 | TR 288 | TR 289 | TR 304 | TR312 | |||
Catalog Number | MITR 208 |
MITR 210 |
MITR 214 |
MITR 216 |
MITR 286 |
MITR 288 |
MITR 289 |
MITR 304 |
MITR 312 |
|||
Leakage Distance (in) | 24 | 37 | 43 | 72 | 99 | 116 | 116 | 165 | 198 | |||
Cantilever Strength (lb) | 2,000 | 1,000 | 2,000 | 1,500 | 2,000 | 1,450 | 2,450 | 1,000 | 1,000 | |||
Tensile Strength (lb) | 10,000 | 12,000 | 14,000 | 16,000 | 20,000 | 20,000 | 25,000 | 20,000 | 20,000 | |||
Torsional Strenght (in.-lb.) | 8,000 | 10,000 | 12,000 | 15,000 | 60,000 | 60,000 | 90,000 | 60,000 | 60,000 | |||
Compression Strength (lb) | 10,000 | 15,000 | 15,000 | 25,000 | 60,000 | 60,000 | 90,000 | 60,000 | 60,000 | |||
Critical Impulse Flash. Volt., Pos.(kV) | 170 | 225 | 280 | 390 | 610 | 710 | 710 | 1,010 | 1,210 | |||
Withstand Voltage |
Low Frequency, Wet kV | 60 | 80 | 100 | 145 | 230 | 275 | 275 | 385 | 455 | ||
Impulse kV | 150 | 200 | 250 | 350 | 550 | 650 | 650 | 900 | 1,050 | |||
Radio-Infl. Volt. Data | Test Volt. to Ground kV | 15 | 22 | 30 | 44 | 73 | 88 | 88 | 146 | 146 | ||
Max RIV @ 1000 kHz/μV | 100 | 100 | 200 | 200 | 200 | 200 | 200 | 500 | 500 | |||
Net Weight (lb) | 27 | 34 | 50 | 74 | 143 | 167 | 203 | 270 | 306 |

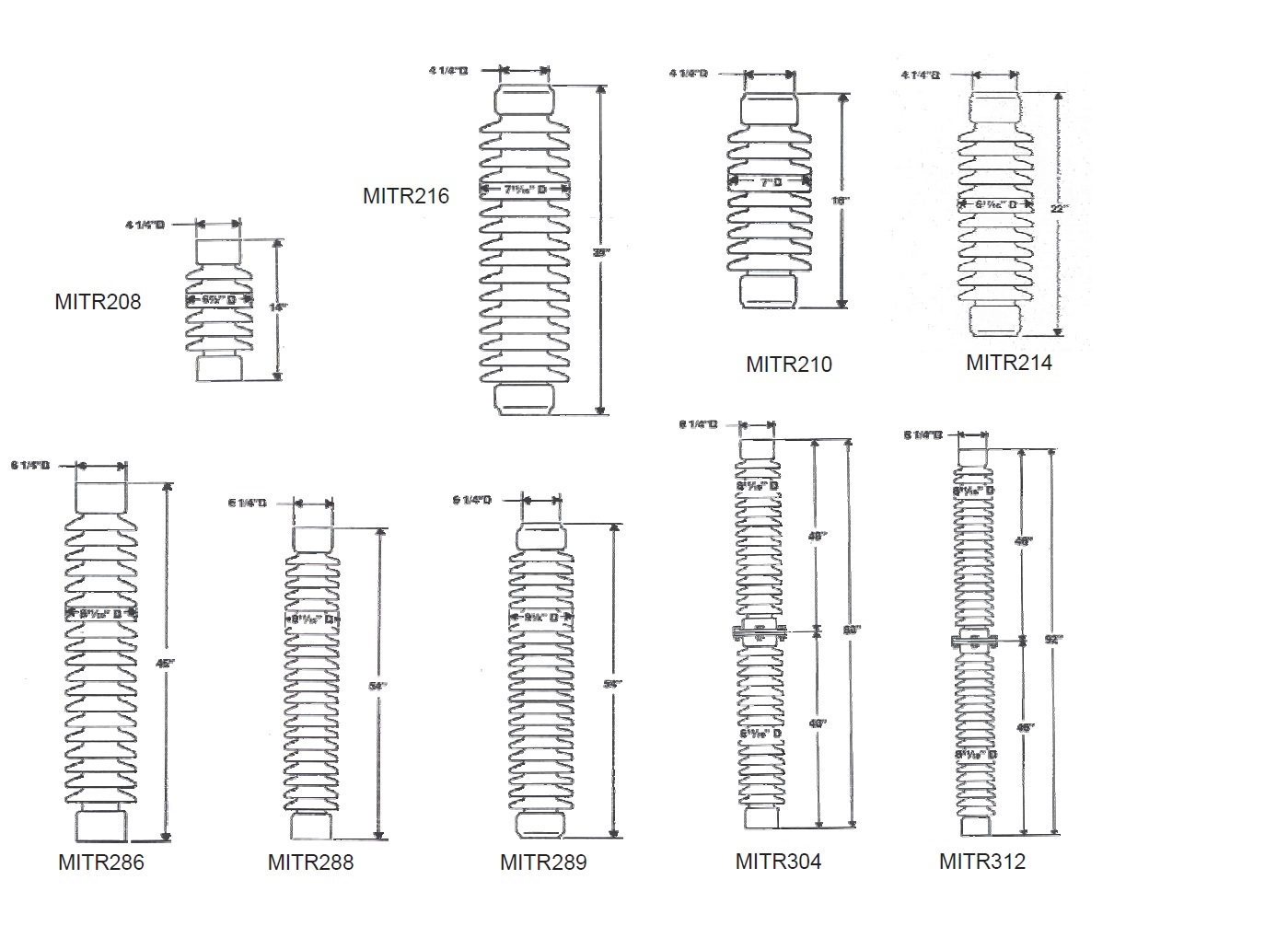

Station Post Insulator
