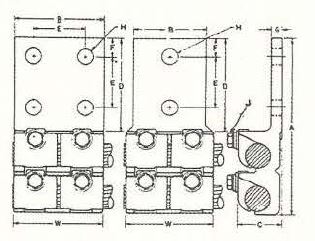

| BBL2TD0CP | BBL2TT0CP | BBL2TQ0CP |
| TERMINAL LUGS, TWO CABLES, 90° | TERMINAL LUGS, THREE CABLES, 90° | TERMINAL LUGS, FOUR CABLES, 90° |
Notes
1. All cable sizes shown are stranded; 350 and above are kcmil sizes.
2. Holes in tongue.
3. Other sizes available on request.
4. E = 1 3/4" , F=5/8" ,H = 9/16"
| Cat. No. | CABLE SIZE1 | H.T.2 | A | B | C | D | G | J | W | |
| Min. | Max. | In | In | In | In | In | In | In | ||
| BBL2TD0C1PN2 | #4 | #1 | 2 | 4 3/4 | 1 5/16 | 3/4 | 3 | 7/32 | 5/16 | 1 11/16 |
| BBL2TD0C00PN2 | 1/0 | 2/0 | 2 | 5 1/8 | 1 11/16 | 13/16 | 3 1/8 | 1/4 | 5/16 | 2 1/8 |
| BBL2TD0C0000PN2 | 2/0 | 4/0 | 2 | 5 7/16 | 1 7/8 | 1 | 3 1/4 | 1/4 | 5/16 | 2 7/16 |
| BBL2TD0C0000P3N4 | 2/0 | 4/0 | 4 | 5 7/16 | 3 | 1 | 3 1/4 | 1/4 | 5/16 | 2 7/16 |
| BBL2TD0C350PN2 | 4/0 | 350 | 2 | 5 15/16 | 2 9/32 | 1 1/4 | 3 5/16 | 5/16 | 3/8 | 2 3/4 |
| BBL2TD0C350P3N4 | 4/0 | 350 | 4 | 5 15/16 | 3 | 1 1/4 | 3 5/16 | 5/16 | 3/8 | 2 3/4 |
| BBL2TD0C500PN2 | 350 | 500 | 2 | 6 3/8 | 2 1/2 | 1 7/16 | 3 3/8 | 3/8 | 3/8 | 3 1/4 |
| BBL2TD0C500P3N4 | 350 | 500 | 4 | 6 3/8 | 3 | 1 7/16 | 3 3/8 | 3/8 | 3/8 | 3 1/4 |
| BBL2TD0C750PN2 | 500 | 750 | 2 | 6 13/16 | 3 | 1 3/4 | 3 3/8 | 7/16 | 7/16 | 3 3/4 |
| BBL2TD0C750P3N4 | 500 | 750 | 4 | 6 13/16 | 3 | 1 3/4 | 3 3/8 | 7/16 | 7/16 | 3 3/4 |
| BBL2TD0C1000PN2 | 750 | 1000 | 2 | 7 3/8 | 3 7/32 | 1 15/16 | 3 3/8 | 1/2 | 1/2 | 4 7/16 |
| BBL2TD0C1000P3N4 | 750 | 1000 | 4 | 7 3/8 | 3 7/32 | 1 15/16 | 3 3/8 | 1/2 | 1/2 | 4 7/16 |
| BBL2TT0C1PN2 | #4 | #1 | 2 | 5 11/16 | 1 5/16 | 13/16 | 3 | 7/32 | 5/16 | 1 3/4 |
| BBL2TT0C00PN2 | 1/0 | 2/0 | 2 | 6 3/16 | 1 11/16 | 13/16 | 3 1/8 | 1/4 | 5/16 | 2 1/8 |
| BBL2TT0C0000PN2 | 2/0 | 4/0 | 2 | 6 5/8 | 1 7/8 | 1 | 3 1/4 | 1/4 | 5/16 | 2 7/16 |
| BBL2TT0C0000P3N4 | 2/0 | 4/0 | 4 | 6 5/8 | 3 | 1 | 3 1/4 | 1/4 | 5/16 | 2 7/16 |
| BBL2TT0C350PN2 | 4/0 | 350 | 2 | 7 1/4 | 2 9/32 | 1 1/14 | 3 5/16 | 5/16 | 3/8 | 2 3/4 |
| BBL2TT0C350P3N4 | 4/0 | 350 | 4 | 7 1/4 | 3 | 1 1/14 | 3 5/16 | 5/16 | 3/8 | 2 3/4 |
| BBL2TT0C500PN2 | 350 | 500 | 2 | 7 7/8 | 2 1/2 | 1 7/16 | 3 3/8 | 3/8 | 3/8 | 3 1/4 |
| BBL2TT0C500P3N4 | 350 | 500 | 4 | 7 7/8 | 3 | 1 7/16 | 3 3/8 | 3/8 | 3/8 | 3 1/4 |
| BBL2TT0C750PN2 | 500 | 750 | 2 | 8 1/2 | 3 | 1 3/4 | 3 3/8 | 7/16 | 7/16 | 3 3/4 |
| BBL2TT0C750P3N4 | 500 | 750 | 4 | 8 1/2 | 3 | 1 3/4 | 3 3/8 | 7/16 | 7/16 | 3 3/4 |
| BBL2TT0C1000PN2 | 750 | 1000 | 2 | 9 3/8 | 3 7/32 | 1 15/16 | 3 3/8 | 1/2 | 1/2 | 4 7/16 |
| BBL2TT0C1000P3N4 | 750 | 1000 | 4 | 9 3/8 | 3 7/32 | 1 15/16 | 3 3/8 | 1/2 | 1/2 | 4 7/16 |
| BBL2TQ0C0000PN2 | 2/0 | 4/0 | 2 | 7 11/16 | 1 7/8 | 1 | 3 1/4 | 1/4 | 5/16 | 2 7/16 |
| BBL2TQ0C0000P3N4 | 2/0 | 4/0 | 4 | 7 11/16 | 3 | 1 | 3 1/4 | 1/4 | 5/16 | 2 7/16 |
| BBL2TQ0C350PN2 | 4/0 | 350 | 2 | 8 9/16 | 2 9/32 | 1 1/4 | 3 5/16 | 5/16 | 3/8 | 2 3/4 |
| BBL2TQ0C350P3N4 | 4/0 | 350 | 4 | 8 9/16 | 3 | 1 1/4 | 3 5/16 | 5/16 | 3/8 | 2 3/4 |
| BBL2TQ0C500PN2 | 350 | 500 | 2 | 9 1/2 | 2 1/2 | 1 7/16 | 3 3/8 | 3/8 | 3/8 | 3 1/4 |
| BBL2TQ0C500P3N4 | 350 | 500 | 4 | 9 1/2 | 3 | 1 7/16 | 3 3/8 | 3/8 | 3/8 | 3 1/4 |
| BBL2TQ0C750PN2 | 500 | 750 | 2 | 10 11/16 | 3 | 1 3/4 | 3 3/8 | 7/16 | 7/16 | 3 3/4 |
| BBL2TQ0C750P3N4 | 500 | 750 | 4 | 10 11/16 | 3 | 1 3/4 | 3 3/8 | 7/16 | 7/16 | 3 3/4 |
| BBL2TQ0C1000PN2 | 750 | 1000 | 2 | 12 1/8 | 3 7/32 | 1 15/16 | 3 3/8 | 1/2 | 1/2 | 4 7/16 |
| BBL2TQ0C1000P3N4 | 750 | 1000 | 4 | 12 1/8 | 3 7/32 | 1 15/16 | 3 3/8 | 1/2 | 1/2 | 4 7/16 |
