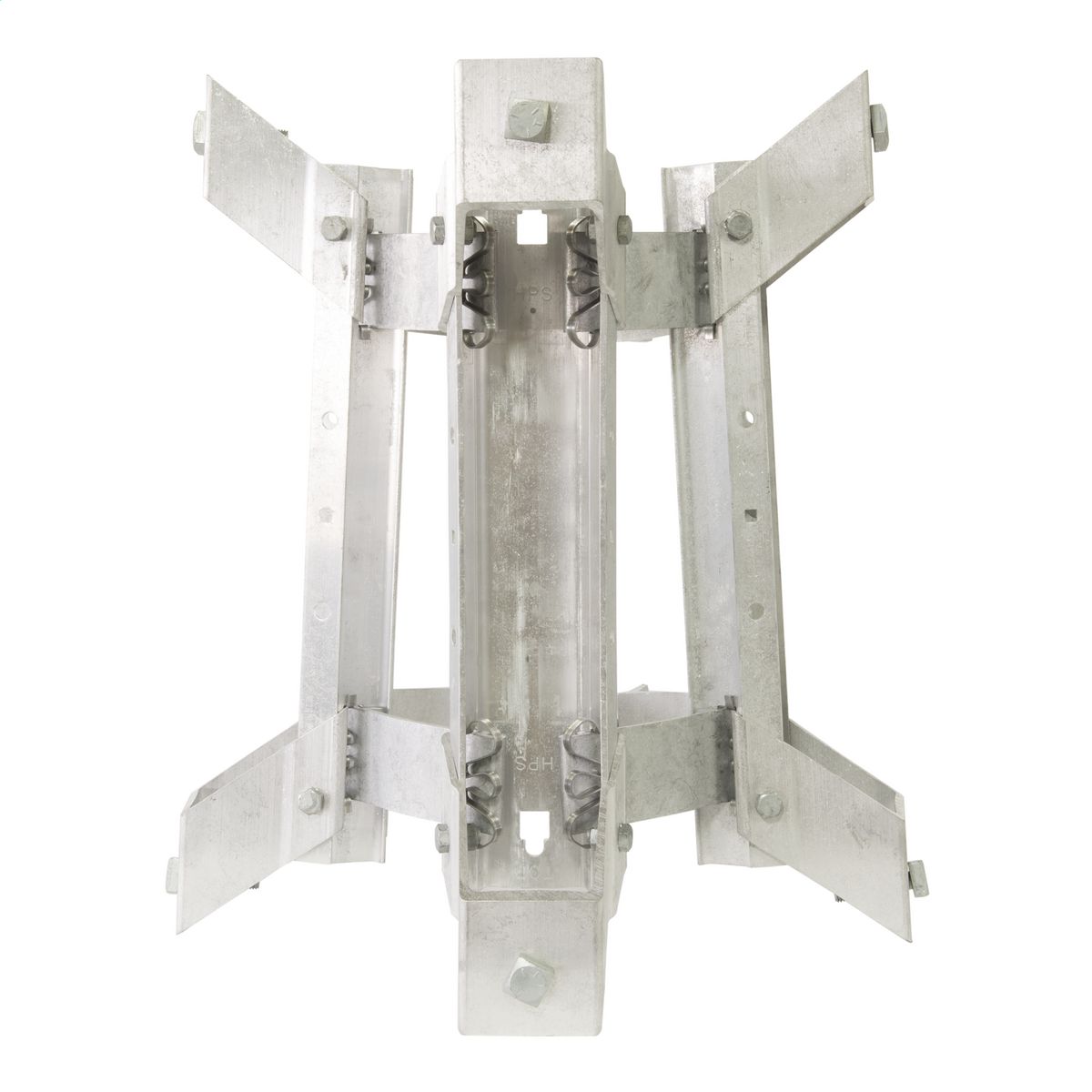

Single Band Double-Band
all bracket material is aluminum. Bolts, nuts and washers are galvanized steel
| Catalog Number | kVA Range | NEMA Lug Spacing | Mounting Distance From Pole | Maximum Recommended Load per Position @ 18" Moment | Additional Transformer Mounting Bolts Only | Approx. Ship Wt. per Each |
| inch | inch | lbs | lbs | |||
| TCB3PBA1 | 3 to 50 kVA | NEMA A (12") |
6" | 1 000 | - | 22 |
| TCB3PBA1L | 9" | 800 | - | 27 | ||
| TCB3PBA2 | 3 to 100 kVA | NEMA A or B (12" or 24") |
6" | 2 500 | - | 38 |
| TCB3PBA2L | 9" | 1 950 | - | 52 |
