Material: A356T6 Aluminum
Bolts: 2024 AL alloy
for galvanized GR5 bolts/hardware add suffix "GH"
For Stainless steel bolts/hardware add suffix "SSH"
Other options available
Notes:
1. Other sizes available
2. Suffix "6" indicates 3/8" bolt
3. For angled coupler, add suffix :LXX" XX= angle (eg L90 = 90 deg, L45 =45 deg)

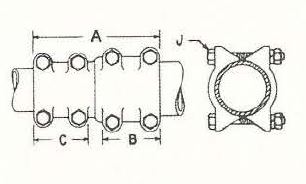

| CATALOG NUMBER |
I.P.S. | A | B | C | J | |
| RUN | TAP | In | In | In | In | |
| ABB12B12 | 1/2 | 1/2 | 4 3/4 | 2 1/4 | 2 1/4 | 1/2 |
| ABB34B12 | 3/4 | 1/2 | 5 | 2 3/8 | 2 1/4 | 1/2 |
| ABB34B34 | 3/4 | 3/4 | 5 1/8 | 2 3/8 | 2 3/8 | 1/2 |
| ABB1B12 | 1 | 1/2 | 5 1/4 | 2 1/2 | 2 1/4 | 1/2 |
| ABB1B34 | 1 | 3/4 | 5 3/8 | 2 1/2 | 2 3/8 | 1/2 |
| ABB1B1 | 1 | 1 | 5 1/2 | 2 1/2 | 2 1/2 | 1/2 |
| ABB114B34 | 1 1/4 | 3/4 | 5 5/8 | 2 5/8 | 2 3/8 | 1/2 |
| ABB114B1 | 1 1/4 | 1 | 5 3/4 | 2 5/8 | 2 1/2 | 1/2 |
| ABB114B114 | 1 1/4 | 1 1/4 | 5 7/8 | 2 5/8 | 2 5/8 | 1/2 |
| ABB112B34 | 1 1/2 | 3/4 | 5 7/8 | 2 3/4 | 2 3/8 | 1/2 |
| ABB112B1 | 1 1/2 | 1 | 6 | 2 3/4 | 2 1/2 | 1/2 |
| ABB112B114 | 1 1/2 | 1 1/4 | 6 1/8 | 2 3/4 | 2 5/8 | 1/2 |
| ABB112B112 | 1 1/2 | 1 1/2 | 6 1/4 | 2 3/4 | 2 3/4 | 1/2 |
| ABB2B1 | 2 | 1 | 6 1/4 | 2 7/8 | 2 1/2 | 1/2 |
| ABB2B114 | 2 | 1 1/4 | 6 3/8 | 2 7/8 | 2 5/8 | 1/2 |
| ABB2B112 | 2 | 1 1/2 | 6 1/2 | 2 7/8 | 2 3/4 | 1/2 |
| ABB2B2 | 2 | 2 | 6 5/8 | 2 7/8 | 2 7/8 | 1/2 |
| ABB212B114 | 2 1/2 | 1 1/4 | 6 5/8 | 3 | 2 5/8 | 1/2 |
| ABB212B112 | 2 1/2 | 1 1/2 | 6 3/4 | 3 | 2 3/4 | 1/2 |
| ABB212B2 | 2 1/2 | 2 | 6 7/8 | 3 | 2 7/8 | 1/2 |
| ABB212B212 | 2 1/2 | 2 1/2 | 7 | 3 | 3 | 1/2 |
| ABB3B112 | 3 | 1 1/2 | 6 3/4 | 3 | 2 3/4 | 1/2 |
| ABB3B2 | 3 | 2 | 6 7/8 | 3 | 2 7/8 | 1/2 |
| ABB3B212 | 3 | 2 1/2 | 7 | 3 | 3 | 1/2 |
| ABB3B3 | 3 | 3 | 7 3/4 | 3 1/4 | 3 1/4 | 5/8 |
| ABB312B112 | 3 1/2 | 1 1/2 | 7 1/4 | 3 1/4 | 2 3/4 | 1/2 |
| ABB312B2 | 3 1/2 | 2 | 7 3/8 | 3 1/4 | 2 7/8 | 1/2 |
| ABB312B212 | 3 1/2 | 2 1/2 | 7 1/2 | 3 1/4 | 3 | 1/2 |
| ABB312B3 | 3 1/2 | 3 | 8 1/4 | 3 1/2 | 3 1/4 | 5/8 |
| ABB312B312 | 3 1/2 | 3 1/2 | 8 1/2 | 3 1/2 | 3 1/2 | 5/8 |
| ABB4B2 | 4 | 2 | 7 3/4 | 3 1/2 | 2 7/8 | 1/2 |
| ABB4B212 | 4 | 2 1/2 | 7 7/8 | 3 1/2 | 3 | 1/2 |
| ABB4B3 | 4 | 3 | 8 1/2 | 3 3/4 | 3 1/4 | 5/8 |
| ABB4B312 | 4 | 3 1/2 | 8 3/4 | 3 3/4 | 3 1/2 | 5/8 |
| ABB4B4 | 4 | 4 | 9 | 3 3/4 | 3 3/4 | 5/8 |

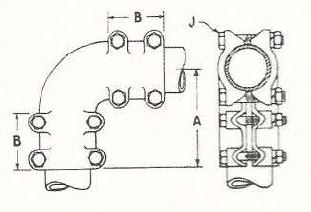

| AB38B12B12L90 | 1/2 | 1/2 | 3 | 1 3/4 | 3/8 | |
| ABB12B12L90 | 1/2 | 1/2 | 3 1/4 | 2 | 1/2 | |
| AB38B34B34L90 | 3/4 | 3/4 | 3 3/8 | 2 | 3/8 | |
| ABB34B34L90 | 3/4 | 3/4 | 3 5/8 | 2 1/4 | 1/2 | |
| AB38B1B1L90 | 1 | 1 | 3 3/4 | 2 1/4 | 3/8 | |
| ABB1B1L90 | 1 | 1 | 4 | 2 1/2 | 1/2 | |
| ABB114B114L90 | 1 1/4 | 1 1/4 | 4 1/2 | 2 3/4 | 1/2 | |
| ABB114B112L90 | 1 1/4 | 1 1/2 | 5 | 3 | 1/2 | |
| ABB2B2L90 | 2 | 2 | 5 1/2 | 3 1/4 | 1/2 | |
| ABB212B212L90 | 2 1/2 | 2 1/2 | 6 | 3 1/2 | 1/2 | |
| ABB3B3L90 | 3 | 3 | 6 3/4 | 3 3/4 | 5/8 | |
| ABB312B312L90 | 3 1/2 | 3 1/2 | 7 1/2 | 4 | 5/8 | |
| ABB4B4L90 | 4 | 4 | 8 1/2 | 4 1/2 | 5/8 | |
