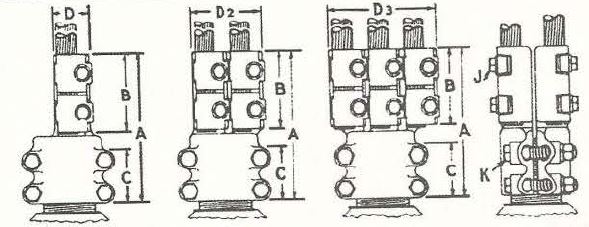

STUD CONNECTORS FOR ONE THROUGH SIX CABLES
Material: A356T6 Aluminum
Bolts: 2024 AL alloy
for galvanized GR5 bolts/hardware add suffix "GH"
For Stainless steel bolts/hardware add suffix "SSH"
Other options available
Notes.
1. All cables sizes shownn are stranded, 350 and above are kcmil sizes
2. Other sizes available on request
3. For Tee connector add suffix "T" after ABL
Replace (X) by: 'S' (single), 'D' (double), 'Q' (quad).
| CATALOG NUMBER 3 |
CABLE SIZE1 | A | B | C | D | D2 | D3 | J | K | ||
| Min. | Max. | Stude size | In | In | In | In | In | In | In | In | |
| AB2(X)0ST112TH12C350 | 4/0 | 350 | 1 1/2-12 | 6 | 2 3/4 | 2 1/2 | 1 1/4 | 2 5/8 | 4 | 3/8 | 1/2 |
| AB2(X)0ST112TH12C500 | 350 | 500 | 1 1/2-12 | 6 1/2 | 3 1/4 | 2 1/2 | 1 7/16 | 3 | 4 9/16 | 3/8 | 1/2 |
| AB2(X)0ST112TH12C750 | 500 | 750 | 1 1/2-12 | 7 | 3 3/4 | 2 1/2 | 1 11/16 | 3 7/16 | 5 3/16 | 7/16 | 1/2 |
| AB2(X)0ST2TH12C350 | 4/0 | 350 | 2-12 | 6 | 2 3/4 | 2 1/2 | 1 1/4 | 2 5/8 | 4 | 3/8 | 1/2 |
| AB2(X)0ST2TH12C500 | 350 | 500 | 2-12 | 6 1/2 | 3 1/4 | 2 1/2 | 1 7/16 | 3 | 4 9/16 | 3/8 | 1/2 |
| AB2(X)0ST2TH12C750 | 500 | 750 | 2-12 | 7 | 3 3/4 | 2 1/2 | 1 11/16 | 3 7/16 | 5 3/16 | 7/16 | 1/2 |
| AB2(X)0ST2TH12C1000 | 750 | 1000 | 2-12 | 7 11/16 | 4 7/16 | 2 1/2 | 1 15/16 | 4 | 6 1/16 | 1/2 | 1/2 |
| AB2(X)0ST212TH12C500 | 350 | 500 | 2 1/2-12 | 6 3/4 | 3 1/4 | 2 3/4 | 1 7/16 | 3 | 4 9/16 | 3/8 | 1/2 |
| AB2(X)0ST212TH12C750 | 500 | 750 | 2 1/2-12 | 7 1/4 | 3 3/4 | 2 3/4 | 1 11/16 | 3 7/16 | 5 3/16 | 7/16 | 1/2 |
| AB2(X)0ST212TH12C1000 | 750 | 1000 | 2 1/2-12 | 7 15/16 | 4 7/16 | 2 3/4 | 1 15/16 | 4 | 6 1/16 | 1/2 | 1/2 |
| AB2(X)0ST3TH12C500 | 350 | 500 | 3-12 | 7 | 3 1/4 | 3 | 1 7/16 | 3 | 4 9/16 | 3/8 | 1/2 |
| AB2(X)0ST3TH12C750 | 500 | 750 | 3-12 | 7 3/4 | 3 3/4 | 3 1/4 | 1 11/16 | 3 7/16 | 5 3/16 | 7/16 | 5/8 |
| AB2(X)0ST3TH12C1000 | 750 | 1000 | 3-12 | 8 7/16 | 4 7/16 | 3 1/4 | 1 15/16 | 4 | 6 1/16 | 1/2 | 5/8 |
| AB2(X)0ST312TH12C500 | 350 | 500 | 3 1/2-12 | 7 | 3 1/4 | 3 | 1 7/16 | 3 | 4 9/16 | 3/8 | 1/2 |
| AB2(X)0ST312TH12C750 | 500 | 750 | 3 1/2-12 | 7 3/4 | 3 3/4 | 3 1/4 | 1 11/16 | 3 7/16 | 5 3/16 | 7/16 | 5/8 |
| AB2(X)0ST312TH12C1000 | 750 | 1000 | 3 1/2-12 | 8 7/16 | 4 7/16 | 3 1/4 | 1 15/16 | 4 | 6 1/16 | 1/2 | 5/8 |
| AB2(X)0ST4TH12C500 | 350 | 500 | 4-12 | 7 | 3 1/4 | 3 | 1 7/16 | 3 | 4 9/16 | 3/8 | 1/2 |
| AB2(X)0ST4TH12C750 | 500 | 750 | 4-12 | 7 3/4 | 3 3/4 | 3 1/4 | 1 11/16 | 3 7/16 | 5 3/16 | 7/16 | 5/8 |
| AB2(X)0ST4TH12C1000 | 750 | 1000 | 4-12 | 8 7/16 | 4 7/16 | 3 1/4 | 1 15/16 | 4 | 6 1/16 | 1/2 | 5/8 |
