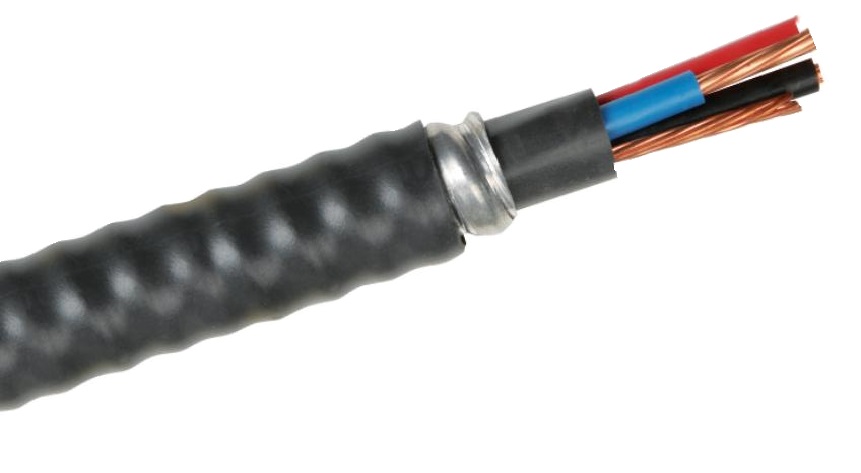

FIREX- II 1C TECK90(XLPE) -40c 5KV UNshielded

Search

TECK90 Cables are intended for use in various primary and secondary industries, including chemical processing plants, refineries and general factory environments.


STANDARDS


National : CSA C22.2 N° 131


DESCRIPTION


Even in the most demanding industrial and resource industry applications,  TECK90 cables have proven to have a superior service and maintenance record.

TECK90 Cables utilize low acid gas, low flame spread PVC jacket compounds to ensure maximum safety to personnel and equipment in the event of fire.

Applications

⦾ TECK90 Cables, originally developed for use in Canadian mines, are flexible, resistant to mechanical abuse, corrosion resistant, compact and reliable. They are suitable for a wide range of applications, including ALL hazardous locations - Class I, Division 1 and 2; Class II, Division 1 and 2; and Class III.

⦾ Industries such as pulp and paper, chemical, petroleum and other primary and secondary manufacturing industries have used TECK90 Cables, particularly in areas where cables are subject to the risk of mechanical damage and chemical attack.

⦾ Commercial applications for TECK90 Cables include apartment buildings and commercial complexes.

⦾ TECK90 Cables can be relocated easily because they are rugged and flexible. They can be used in both dry and wet locations in open wiring, in ventilated, non-ventilated and ladder-type cable troughs, in ventilated flexible cableways, and for direct burial.

⦾ TECK90 Cables are also suitable for service entrance installations - above and below ground.

Highlights

TECK90 Cables are:

⦾ Available from stock
⦾ Versatile
⦾ Flexible
⦾ Resistant to Mechanical Abuse and Corrosion
⦾ Compact and Reliable
⦾ "HL" and "FT4" Rated per CSA
⦾ 90°C to -40°C
⦾ Low Acid Gas (AG14)
⦾ Inner and outer jackets are sunlight resistant
⦾ LEAD FREE
⦾ RoHS compliant

Marking and Identification

The inner jackets of TECK90 cables are printed: SUN RES.

The outer jackets of TECK90 cables are printed: (mon/year) TECK90 XLPE (-40°C) CSA LL19376 F HL FT4 AG14 SUN RES along with conductor size, number of conductors and sequential metre marking.

Conductor Identification

⦾ Black



1C TECK90 (XLPE) 5 KV FITTING SIZES AND AMPACITY
Conductor Size  Ampacity (A)   30°C Ambient   (Notes 2, 3) Fittings (Note 4)

Power AWG or kcmil Bonding AWG Appleton T & B CMP Products Cooper Crouse-Hinds
60ºC 75ºC 90ºC
6 8 80 95 105 TMC5099 10466AL/ST050-466 TMC 075A TECK050-3
4 6 105 125 140 TMC75121 10467AL/ST075-467 TMC075A TECK050-4

3 6 120 145 165 TMC75121 10467AL/ST075-467 TMC075A TECK050-4
2 6 140 170 190 TMC75121 10467AL/ST075-467 TMC100A TECK075-5
1 4 165 195 220 TMC75121 10468AL/ST075-468 TMC100A TECK075-6

1/0  4 195 230 260 TMC100138 10468AL/ST075-468 TMC100A TECK075-6
2/0  4 220 265 300 TMC100138 10468AL/ST075-468 TMC100A TECK075-6
3/0  3 260 310 350 TMC100138 10469AL/ST100-469  TMC125A TECK100-7
4/0  3 300 360 405 TMC100138 10469AL/ST100-469 TMC125A TECK100-7

250 2 340 405 455 TMC125163 10470AL/ST125-470  TMC125A TECK125-8
300 2 370 445 500 TMC125163 10470AL/ST125-470 TMC125A TECK125-8
350 1 425 505 570 TMC125163 10470AL/ST125-470 TMC150A TECK125-8

400 1 455 545 615 TMC125163 10550AL/ST125-550 TMC150A TECK125-8
500   520 620 700 TMC125188 10471AL/ST125-471 TMC150A TECK125-10

600 1/0 580 690 780 TMC125188 10471AL/ST125-471 TMC200SA TECK125-10
750 2/0  655 785 885 TMC150200 10472AL/ST150-472 TMC200SA TECK125-10
1000 2/0  785 935 1055 TMC150220 10551AL/ST200-551 TMC200A TECK150-12
Notes:
1) Where stated, “nominal” and “approximate” values are provided for information purposes only and are subject to standard manufacturing tolerances.
2) Based on CEC Table 1, for single conductors in free air.
3) The maximum conductor temperature (used to determine the maximum conductor ampacity) shall be based
on the lowest temperature rating of the electrical equipment, any wire connector, or cable (CEC Rule 4-006).
4) Ensure that only non-magnetic connectors, locknuts and ground bushings are used.
