Material: Hot dip galvanized
Notes:
♦ Rigid V-shaped construction
♦ Lifting eyes provided for raising with bracket or complete with two outer transformers in place.
♦ Holes are provided for attaching bracing bolts. Bolts for pole mounting not included
♦ Cluster mounting bracket complete with 6 adapter plates.
♦ Stabilizing braces are recommended for K10-3 & K10-6

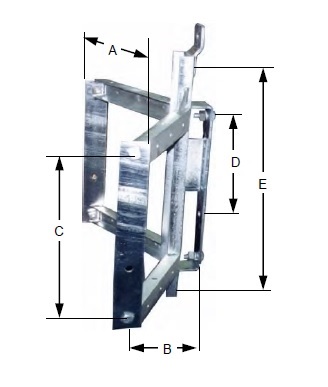

| Cat No. | A Inches |
B Inches |
C Inches |
D Inches |
E Inches |
Shipping Wt. lbs (100 pcs) |
Std. Pkg |
| K10-1 | 29-7/8 | 11-3/8 | 15 | 15 | 23-1/2 | 40 | 1 set |
| K10-3 | 34-1/4 | 12-7/8 | 22 | 15 | 30-1/2 | 65 | 1 set |
| K10-6 | 34-3/8 | 12-1/8 | 29 | 22 | 37-1/2 | 100 | 1 set |
