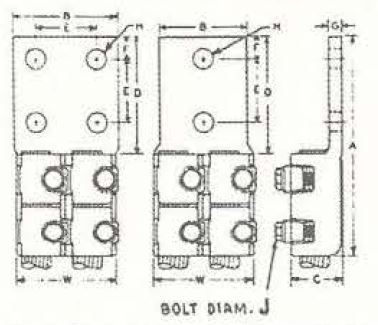

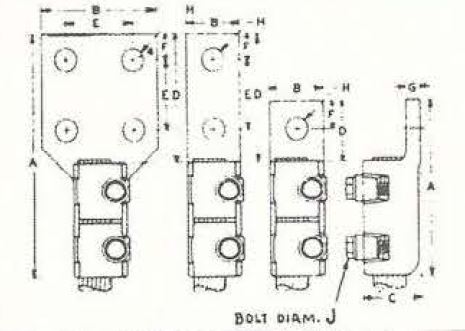

| BBL2CP | BBL2D0CP |
Notes
1. All cable sizes shown are stranded; 350 and above are kcmil sizes.
2. Holes in tongue.
3. Other sizes available on request.
4. E = 1 3/4"
| Cat. No. | CABLE SIZE1 | H.T.2 | A | B | C | D | F | G | H | J | W | |
| Min. | Max. | In | In | In | In | In | In | In | In | In | ||
| BBL2C1PN1 | #4 | #1 | 1 | 2 1/2 | 3/4 | 3/4 | 13/16 | 3/8 | 3/16 | 13/32 | 5/16 | - |
| BBL2C1PN2 | #4 | #1 | 2 | 4 3/4 | 1 | 3/4 | 3 | 5/8 | 3/16 | 9/16 | 5/16 | - |
| BBL2C00PN1 | 1/0 | 2/0 | 1 | 3 1/8 | 15/16 | 13/16 | 1 | 7/16 | 7/32 | 13/32 | 5/16 | - |
| BBL2C00PN2 | 1/0 | 2/0 | 2 | 5 1/4 | 1 | 13/16 | 3 1/8 | 5/8 | 7/32 | 9/16 | 5/16 | - |
| BBL2C0000PN1 | 2/0 | 4/0 | 1 | 3 9/16 | 1 1/16 | 1 | 1 1/8 | 9/16 | 1/4 | 9/16 | 5/16 | - |
| BBL2C0000PN2 | 2/0 | 4/0 | 2 | 5 11/16 | 1 1/16 | 1 | 3 1/4 | 5/8 | 1/4 | 9/16 | 5/16 | - |
| BBL2C350PN1 | 4/0 | 350 | 1 | 4 1/8 | 1 1/4 | 1 1/4 | 1 3/8 | 9/16 | 9/32 | 9/16 | 3/8 | - |
| BBL2C350PN2 | 4/0 | 350 | 2 | 6 1/16 | 1 1/4 | 1 1/4 | 3 5/16 | 5/8 | 9/32 | 9/16 | 3/8 | - |
| BBL2C350P3N4 | 4/0 | 350 | 4 | 6 1/16 | 3 | 1 1/4 | 3 5/16 | 5/8 | 9/32 | 9/16 | 3/8 | - |
| BBL2C500PN1 | 350 | 500 | 1 | 4 7/8 | 1 7/16 | 1 7/16 | 1 5/8 | 3/4 | 5/16 | 9/16 | 3/8 | - |
| BBL2C500PN2 | 350 | 500 | 2 | 6 5/8 | 1 7/16 | 1 7/16 | 3 3/8 | 5/8 | 5/16 | 9/16 | 3/8 | - |
| BBL2C500P3N4 | 350 | 500 | 4 | 6 5/8 | 3 | 1 7/16 | 3 3/8 | 5/8 | 5/16 | 9/16 | 3/8 | - |
| BBL2C750PN1 | 500 | 750 | 1 | 5 9/16 | 1 11/16 | 1 3/4 | 1 13/16 | 3/4 | 3/8 | 9/16 | 7/16 | - |
| BBL2C750PN2 | 500 | 750 | 2 | 7 1/8 | 1 11/16 | 1 3/4 | 3 3/8 | 5/8 | 3/8 | 9/16 | 7/16 | - |
| BBL2C750P3N4 | 500 | 750 | 4 | 7 1/8 | 3 | 1 3/4 | 3 3/8 | 5/8 | 3/8 | 9/16 | 7/16 | - |
| BBL2C1000PN1 | 750 | 1000 | 1 | 6 3/8 | 1 15/16 | 1 15/16 | 1 15/16 | 7/8 | 7/16 | 9/16 | 1/2 | - |
| BBL2C1000PN2 | 750 | 1000 | 2 | 7 13/16 | 1 15/16 | 1 15/16 | 3 3/8 | 5/8 | 7/16 | 9/16 | 1/2 | - |
| BBL2C1000P3N4 | 750 | 1000 | 4 | 7 13/16 | 3 | 1 15/16 | 3 3/8 | 5/8 | 7/16 | 9/16 | 1/2 | - |
| BBL2D0C00PN2 | 1/0 | 2/0 | 2 | 4 7/8 | 1 7/8 | 13/16 | 3 1/4 | 1/4 | 9/16 | 9/16 | 5/16 | 2 1/8 |
| BBL2D0C0000PN2 | 2/0 | 4/0 | 2 | 5 11/16 | 1 7/8 | 1 | 3 1/4 | 1/4 | 9/16 | 9/16 | 5/16 | 2 3/8 |
| BBL2D0C0000P3N4 | 2/0 | 4/0 | 4 | 5 11/16 | 3 | 1 | 3 1/4 | 1/4 | 9/16 | 9/16 | 5/16 | 2 3/8 |
| BBL2D0C350PN2 | 4/0 | 350 | 2 | 6 1/16 | 2 9/32 | 1 1/4 | 3 5/16 | 5/16 | 9/16 | 9/16 | 3/8 | 2 5/8 |
| BBL2D0C350PN4 | 4/0 | 350 | 4 | 6 1/16 | 3 | 1 1/4 | 3 5/16 | 5/16 | 9/16 | 9/16 | 3/8 | 2 5/8 |
| BBL2D0C500PN2 | 350 | 500 | 2 | 6 5/8 | 2 1/2 | 1 7/16 | 3 3/8 | 3/8 | 9/16 | 9/16 | 3/8 | 3 |
| BBL2D0C500P3N4 | 350 | 500 | 4 | 6 5/8 | 3 | 1 7/16 | 3 3/8 | 3/8 | 9/16 | 9/16 | 3/8 | 3 |
| BBL2D0C750PN2 | 500 | 750 | 2 | 7 1/8 | 3 | 1 3/4 | 3 3/8 | 7/16 | 9/16 | 9/16 | 7/16 | 3 1/2 |
| BBL2D0C750P3N4 | 500 | 750 | 4 | 7 1/8 | 3 | 1 3/4 | 3 3/8 | 7/16 | 9/16 | 9/16 | 7/16 | 3 1/2 |
| BBL2D0C1000PN2 | 750 | 1000 | 2 | 7 13/16 | 3 7/32 | 1 15/16 | 3 3/8 | 1/2 | 9/16 | 9/16 | 1/2 | 4 |
| BBL2D0C1000P3N4 | 750 | 1000 | 4 | 7 13/16 | 3 7/32 | 1 15/16 | 3 3/8 | 1/2 | 9/16 | 9/16 | 1/2 | 4 |
