CTC01534 CTC01837
| Catalog Number - Nylon Threads | Catalog Number - Lead Threads | Insulator Thread - A | Shaft Height - B | Accommodates Crossarm Sizes | Carriage Bolts | Cantilever Load Rating with < 10° deflection | Approx. Ship Wt. per Each - Nylon/Lead |
| inch | inch | inch | inch | inch | lbs | ||

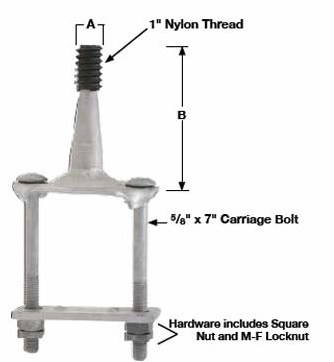

| CTC01534 | 14322 | 1" ANSI | 5-3/4" | 3-3/4" x 4-3/4" | 5/8" x 7 | 1500 | 5.40 / 5.60 |

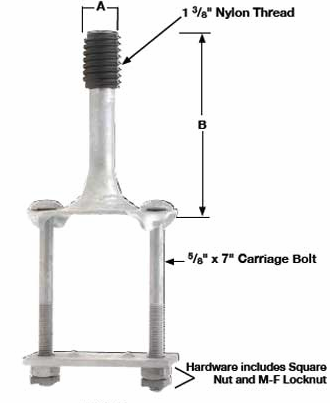

| CTC13807 | 143221 | 1-3/8" ANSI | 7" | 6.16 / 6.46 | |||
| CTC0151316 | - | 1" ANSI | 5-13/16" | 5.41 |
