Ground Rods

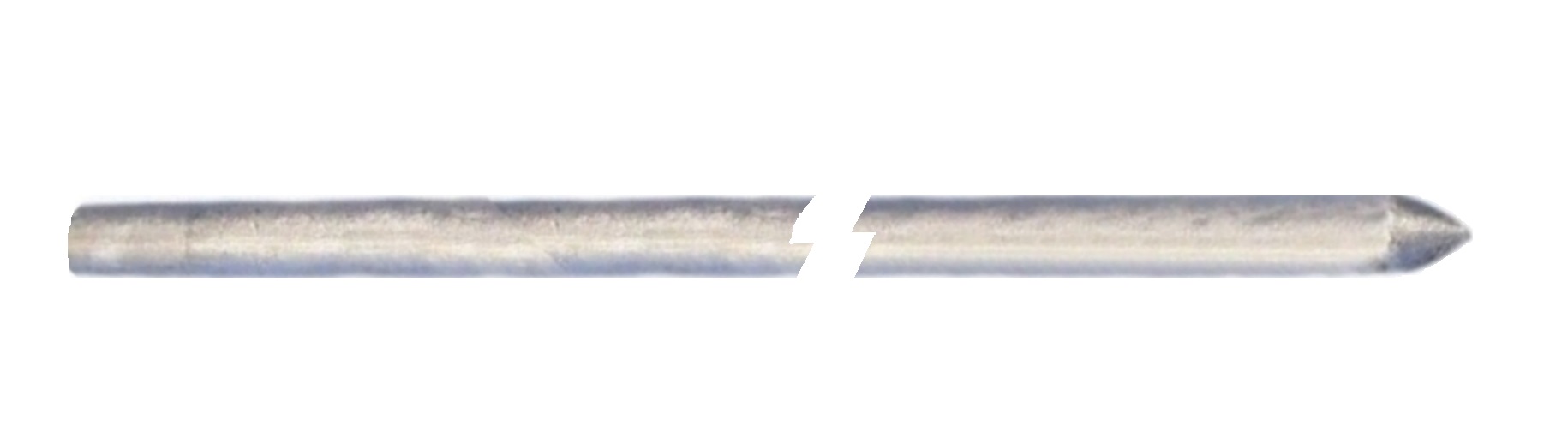

Galvanized Ground Rod

HOT DIP Galvanized per ASTM A123, CSA G164, conical point

Catalog No.	Rod Size Nominal Diameter x Length	Thread Size	Weight per 100
Catalog No.	inch	Thread Size	Lbs.
GGR1206	1/2''x6'	1/2''-13	316
GGR1208	1/2''x8'	1/2''-13	421
GGR1210	1/2''x10'	1/2''-13	527
GGR1206	1/2''x6'	9/16''-12	410
GGR1208	1/2''x8'	9/16''-12	546
GGR1210	1/2''x10'	5/8''-11	682
GGR5806	5/8''x6'	5/8''-11	508
GGR5808	5/8''x8'	5/8''-11	678
GGR5810	5/8''x10'	3/4''-10	847
GGR3406	3/4''x6'	3/4''-10	774
GGR3408	3/4''x8'	3/4''-10	992
GGR3410	3/4''x10'	3/4''-10	1040
GGR0110	1''x10'	1''-8	2248

Copper Clad Ground Rod

Per ANSI & CSA STDS
99.9% Pure Electrolytic copper coating
Min coating - 0.01 inch

Catalog No.	Rod Size Nominal Diameter x Length	Thread Size	Weight per 100
Catalog No.	inch	Thread Size	Lbs.
CCGR1206	1/2''x6'	1/2''-13	316
CCGR1208	1/2''x8'	1/2''-13	421
CCGR1210	1/2''x10'	1/2''-13	527
CCGR1206	1/2''x6'	9/16''-12	410
CCGR1208	1/2''x8'	9/16''-12	546
CCGR1210	1/2''x10'	5/8''-11	682
CCGR5806	5/8''x6'	5/8''-11	508
CCGR5808	5/8''x8'	5/8''-11	678
CCGR5810	5/8''x10'	3/4''-10	847
CCGR3406	3/4''x6'	3/4''-10	774
CCGR3408	3/4''x8'	3/4''-10	992
CCGR3410S	3/4''x10'	3/4''-10	1040
CCGR0110S	1''x10'	1''-8	2248

Copper Clad Ground Rod SECTIONAL (threaded on both ends)

Per ANSI & CSA STDS
99.9% Pure Electrolytic copper coating
Min coating - 0.01 inch

Catalog No.	Rod Size Nominal Diameter x Length	Thread Size	Weight per 100
Catalog No.	inch	Thread Size	Lbs.
CCGR1206S	1/2''x6'	1/2''-13	316
CCGR1208S	1/2''x8'	1/2''-13	421
CCGR1210S	1/2''x10'	1/2''-13	527
CCGR1206S	1/2''x6'	9/16''-12	410
CCGR1208S	1/2''x8'	9/16''-12	546
CCGR1210S	1/2''x10'	5/8''-11	682
CCGR5806S	5/8''x6'	5/8''-11	508
CCGR5808S	5/8''x8'	5/8''-11	678
CCGR5810S	5/8''x10'	3/4''-10	847
CCGR3406S	3/4''x6'	3/4''-10	774
CCGR3408S	3/4''x8'	3/4''-10	992
CCGR3410S	3/4''x10'	3/4''-10	1040
CCGR0110S	1''x10'	1''-8	2248
