Strain Yoke Plates

Search

Login

: Category: Guying; Hits: 113

CSA
ASTM

Replace XX with Bolt Dia.

34 for 3/4" Bolt

58 for 5/8" Bolt

01 for 1" Bolt

Material: Hot-Dip Galvanized Steel Per ASTM A153 & CSA G164

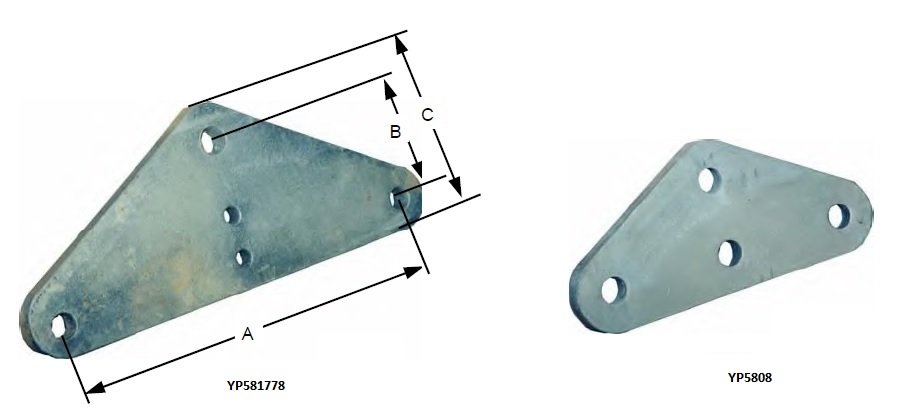

Catalog No.	Thickness	A	B	C	Shipping Wt (100 pcs)	Std Pkg.
Catalog No.	inch	inch	inch	inch	lbs	Std Pkg.

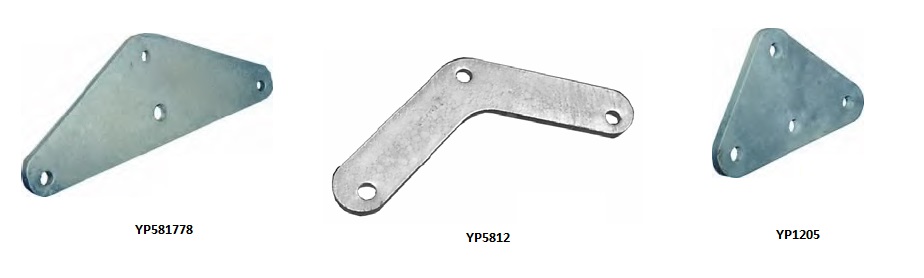

YP1205	1/2	5	2-1/2	4-5/8	320	5
YP5808	5/8	8	2-5/16	4-11/16	600	5
YP5808	5/8	8	4-3/8	6-3/4	800	5
YP581778	5/8	17-7/8	4-9/16	7	1600	5
YP5813	5/8	13	3-11/16	6	1040	5
YP5812	5/8	12	5	6	700	5
