Tensile Strength
3/8" 16UNC = 4250lbs (18.9kN)
1/2"-13UNC = 8500lbs (37.7kN)
5/8" - 11UNC = 13550lbs (60kN)
3/4" - 10UNC = 20050lbs (98kN)
7/8" - 9UNC = 27700lbs (123kN)
1" - 8UNC = 33500lbs (148.7kN)
Bolt/ nuts meet ANSI B18.2.1/B18.2.2
Hot Dip Galvanized per ASTM A153 CSA G164
nuts tapped after galvanizing
All Dim before galvanizing
Add Suffix "C" for charpy level 1 compliance (20J@-20C)

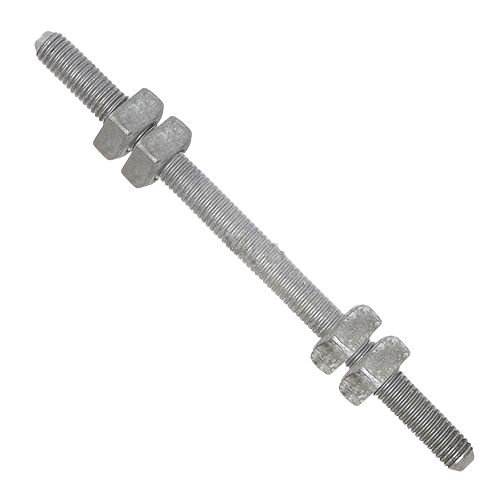

-Double arming bolt:
- Two squares nuts
- CAO 6645 specification
- RUS Listed, n - Bolt, double arming
- ANSI standard C135.1
| Catalog No. | Bolt Dia. | Bolt Length | Approx. Ship Wt. Per Each (lbs) | |
| inch | inch | |||
| DAB1216 | 1/2 | 16 | 1.17 | |
| DAB1218 | 18 | 1.25 | ||
| DAB5808 | 5/8 | 8 | 0.96 | |
| DAB5810 | 10 | 1.17 | ||
| DAB5812 | 12 | 1.26 | ||
| DAB5814 | 14 | 1.48 | ||
| DAB5816 | 16 | 1.70 | ||
| DAB5818 | 18 | 1.80 | ||
| DAB5820 | 20 | 1.97 | ||
| DAB5822 | 22 | 2.13 | ||
| DAB5824 | 24 | 2.27 | ||
| DAB5826 | 26 | 2.40 | ||
| DAB5828 | 28 | 2.53 | ||
| DAB5830 | 30 | 2.60 | ||
| DAB5832 | 32 | 2.80 | ||
| DAB5836 | 36 | 2.90 | ||
| DAB3406 | 3/4 | 6 | 1.28 | |
| DAB3408 | 8 | 1.50 | ||
| DAB3412 | 12 | 1.82 | ||
| DAB3414 | 14 | 2.24 | ||
| DAB3416 | 16 | 2.48 | ||
| DAB3418 | 18 | 2.72 | ||
| DAB3420 | 20 | 2.92 | ||
| DAB3422 | 22 | 3.16 | ||
| DAB3424 | 24 | 3.35 | ||
| DAB3426 | 26 | 3.56 | ||
| DAB3428 | 28 | 3.65 | ||
| DAB3430 | 30 | 3.81 | ||
| DAB3432 | 32 | 4.13 | ||
| DAB3432 | 34 | 4.34 | ||
| DAB3436 | 36 | 4.50 | ||
| DAB3438 | 38 | 4.84 | ||
| DAB3440 | 40 | 5.10 | ||
| DAB3442 | 42 | 5.41 | ||
| DAB7812 | 7/8 | 12 | 2.83 | |
| DAB7814 | 14 | 3.12 | ||
| DAB7816 | 16 | 3.41 | ||
| DAB7818 | 18 | 3.70 | ||
| DAB7820 | 20 | 3.99 | ||
| DAB7822 | 22 | 4.27 | ||
| DAB7824 | 24 | 4.56 | ||
| DAB7826 | 26 | 4.85 | ||
| DAB7828 | 28 | 5.14 | ||
| DAB7830 | 30 | 5.43 | ||
| DAB7832 | 32 | 5.72 | ||
| DAB7834 | 34 | 6.01 | ||
| DAB7836 | 36 | 6.30 | ||
| DAB7838 | 38 | 6.59 | ||
| DAB7840 | 40 | 6.88 | ||
| DAB7842 | 42 | 7.17 | ||
| DAB7844 | 44 | 7.45 | ||
| DAB7846 | 46 | 7.84 | ||
| DAB7848 | 48 | 8.00 | ||
| DAB7850 | 50 | 8.21 | ||
| DAB7852 | 52 | 8.5 | ||
| DAB7854 | 54 | 8.69 | ||
| DAB7856 | 56 | 9.06 | ||
| DAB7858 | 58 | 9.29 | ||
| DAB7860 | 60 | 9.56 | ||
| DAB7862 | 62 | 9.99 | ||
| DAB7864 | 64 | 10.16 | ||
| DAB7866 | 66 | 10.4 | ||
| DAB7868 | 68 | 10.72 | ||
| DAB7870 | 70 | 11.01 | ||
| DAB7872 | 72 | 11.29 | ||
| DAB7884 | 84 | 13.09 | ||
| DAB0112 | 1 | 12 | 4.1 | |
| DAB0114 | 14 | 4.4 | ||
| DAB0116 | 16 | 4.7 | ||
| DAB0118 | 18 | 5.0 | ||
| DAB0120 | 20 | 5.3 | ||
| DAB0122 | 22 | 5.6 | ||
| DAB0124 | 24 | 5.9 | ||
| DAB0126 | 26 | 6.2 | ||
| DAB0128 | 28 | 6.5 | ||
| DAB0130 | 30 | 6.8 | ||
| DAB0132 | 32 | 7.1 | ||
| DAB0134 | 34 | 7.4 | ||
| DAB0136 | 36 | 7.7 | ||
| DAB0138 | 38 | 8.0 | ||
| DAB0140 | 40 | 8.3 | ||
| DAB0142 | 42 | 8.6 | ||
| DAB0148 | 48 | 8.9 | ||
