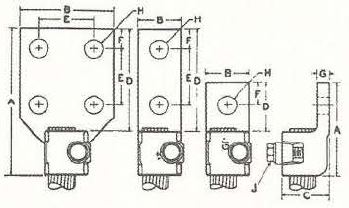

BB1C/DP - Bronze Bolted Terminal Lugs - (1-2 Cable, Straight)

Search



BB1CP BB1D0CP

Material: Copper alloy


Hardware: Silicone bronze

Fro tin plating (with SS hardware) add prefix "T"

 Notes


1. All cable sizes shown are stranded; 350 and above are kcmil sizes.
2. Holes in tongue.
3. Other sizes available on request.
4. E = 1 3/4"

  Cat. No. CABLE SIZE1  H.T.2 A B C D F G H J W
Min. Max. In In In In In In In In In
BB1C6PN1 #8 #6 1 1  1/2  19/32   5/8   5/8   9/32   5/32   7/32   1/4
BB1C4PN1 #6 #4 1 1  9/16  21/32   5/8  11/16   5/16   5/32   9/32   1/4
BB1C1PN1 #4 #1 1 1  3/4  25/32  11/16  27/32   3/8   3/16   9/32   5/16
BB1C1PN2 #4 #1 2 2 15/16  25/32  11/16 1  5/8  13/32   3/16   9/32   5/16
BB1C00PN1 1/0 2/0 1 1 31/32  29/32   7/8 2  1/32  15/32   7/32  13/32   5/16
BB1C00PN2 1/0 2/0 2           1/2   7/32   9/16   5/16
BB1C0000PN1 2/0 4/0 1 2  3/8 1  1/16 1      1  3/16   9/16   1/4   7/16   5/16
BB1C0000PN2 2/0 4/0 2 4 13/32 1  1/16 1      3  1/4   5/8   1/4   9/16   5/16
BB1C350PN1 4/0 350 1 2 23/32 1  7/32 1  1/4 1  3/8  21/32   9/32  17/32   3/8
BB1C350PN2 4/0 350 2 4  5/8 1  7/32 1  1/4 3  9/32   5/8   9/32   9/16   3/8
BB1C350P3N4 4/0 350 4 4  5/8 3      1  1/4 3  9/32   5/8   9/32   9/16   3/8
BB1C500PN1 350 500 1 3  3/16 1  7/16 1 13/32 1  5/8   3/4   5/16   9/16   3/8
BB1C500PN2 350 500 2 4  3/4 1  7/16 1 13/32 3  5/16   5/8   5/16   9/16   3/8
BB1C500P3N4 350 500 4 4  3/4 3      1 13/32 3  5/16   5/8   5/16   9/16   3/8
BB1C750PN1 500 750 1 3  3/4 1 11/16 1 11/16 1 27/32   7/8   3/8  21/32   7/16
BB1C750PN2 500 750 2 5  1/4 1 11/16 1 11/16 3 11/32   5/8   3/8   9/16   7/16
BB1C750P3N4 500 750 4 5  1/4 3      1 11/16 3 11/32   5/8   3/8   9/16   7/16
BB1C1000PN1 750 1000 1 4  9/32 1 15/16 1 15/16 2  1/8 1        7/16   1/16   1/2
BB1C1000PN2 750 1000 2 5  5/8 1 15/16 1 15/16 3  3/8   5/8   7/16   9/16   1/2
BB1C1000P3N4 750 1000 4 5  5/8 3      1 15/16 3  3/8   5/8   7/16   9/16   1/2
BB1D0C00PN2 1/0 2/0 2 3      1 11/16  29/32 2  1/32   7/16   1/4   7/16   5/16 2  1/16
BB1D0C0000PN2 2/0 4/0 2 4 13/32 1  7/8 1      3  1/4   5/8   1/4   9/16   5/16 2  5/16
BB1D0C0000P3N4 2/0 4/0 4 4 13/32 3      1      3  1/4   5/8   1/4   9/16   5/16 2  5/16
BB1D0C350PN2 4/0 350 2 4  5/8 2  5/16 1 13/32 3  9/32   5/8   5/16   9/16   3/8 2 11/16
BB1D0C350P3N4 4/0 350 4 4  5/8 3      1 13/32 3  9/32   5/8   5/16   9/16   3/8 2 11/16
BB1D0C500PN2 350 500 2 4  3/4 2  1/2 1 15/32 3  5/16   5/8   3/8   9/16   3/8 3
BB1D0C500P3N4 350 500 4 4  3/4 3      1 15/32 3  5/16   5/8   3/8   9/16   3/8 3
BB1D0C750PN2 500 750 2 5  1/4 3      1  3/4 3 11/32   5/8   7/16   9/16   7/16 3 1/2
BB1D0C750P3N4 500 750 4 5  1/4 3      1  3/4 3 11/32   5/8   7/16   9/16   7/16 3 1/2
BB1D0C1000PN2 750 1000 2 5  5/8 3  7/32 2      3  3/8   5/8   1/2   9/16   1/2 4
BB1D0C1000P3N4 750 1000 4 5  5/8 3  7/32 2      3  3/8   5/8   1/2   9/16   1/2 4
