BBL2T0CP - Bronze Bolted Terminal Lugs - (3 Cables, Straight)

Search

 BBL2T0CP BBL2Q0CP  BBL2P0CP

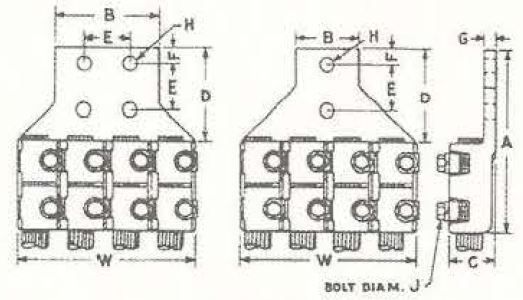

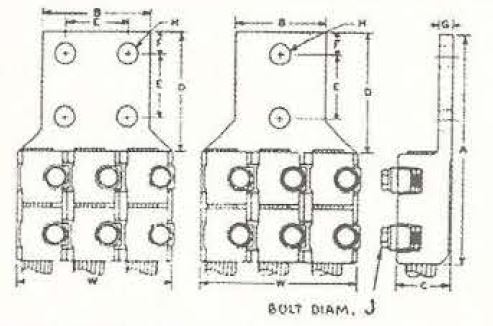

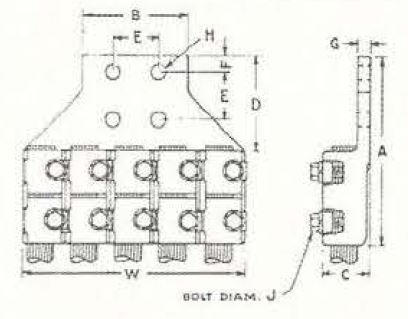

TERMINAL LUGS, THREE CABLES, STRAIGHT TERMINAL LUGS, FOUR CABLES, STRAIGHT TERMINAL LUGS, FIVE CABLES, STRAIGHT

Notes

All cable sizes shown are stranded; 350 and above are kcmil sizes.
Holes in tongue.
Other sizes available on request.
E = 1 3/4" , H = 9/16"
Left and right hand tongues available on types 4JJA and 5JJA.

 Cat. No. CABLE SIZE1   A B C D F G J W
Min. Max. H.T.2 In In In In In In In In
BBL2T0C00PN2 1/0 2/0 2 4  1/8 1  7/8  13/16 3  1/4   5/8   1/4   5/16 3  3/16
BBL2T0C0000PN2 2/0 4/0 2 5 11/16 1  7/8 1      3  1/4   5/8   1/4   5/16 3  9/16
BBL2T0C0000P3N4 2/0 4/0 4 5 11/16 3      1      3  1/4   5/8   1/4   5/16 3  9/16
BBL2T0C350PN2 4/0 350 2 6  1/16 2  9/32 1  1/4 3  5/16   5/8   5/16   3/8 3 15/16
BBL2T0C350P3N4 4/0 350 4 6  1/16 3      1  1/4 3  5/16   5/8   5/16   3/8 3 15/16
BBL2T0C500PN2 350 500 2 6  5/8 2  1/2 1  7/16 3  3/8   5/8   3/8   3/8 4  1/2
BBL2T0C500P3N4 350 500 4 6  5/8 3      1  7/16 3  3/8   5/8   3/8   3/8 4  1/2
BBL2T0C750PN2 500 750 2 7  1/8 3      1  3/4 3  3/8   5/8   7/16   7/16 5  1/8
BBL2T0C750P3N4 500 750 4 7  1/8 3      1  3/4 3  3/8   5/8   7/16   7/16 5  1/8
BBL2T0C1000PN2 750 1000 2 7 13/16 3  7/32 1 15/16 3  3/8   5/8   1/2   1/2 6
BBL2T0C1000P3N4 750 1000 4 7 13/16 3  7/32 1 15/16 3  3/8   5/8   1/2   1/2 6
BBL2Q0C0000PN2 2/0 4/0 2 5 11/16 2      1      3  1/4   5/8   1/4   5/16 4  7/16
BBL2Q0C0000P3N4 2/0 4/0 4 5 11/16 3      1      3  1/4   5/8   1/4   5/16 4  7/16
BBL2Q0C350PN2 4/0 350 2 6  1/16 2      1  1/4 3  3/8   5/8   5/16   3/8 5  3/16
BBL2Q0C350P3N4 4/0 350 4 6  1/16 3      1  1/4 3  3/8   5/8   5/16   3/8 5  3/16
BBL2Q0C500PN2 350 500 2 6  5/8 2  1/2 1  7/16 3  1/2   5/8   3/8   3/8 6
BBL2Q0C500P4N4 350 500 4 6  5/8 4      1  7/16 3  1/2   5/8   3/8   3/8 6
BBL2Q0C750PN2 500 750 2 7  1/8 4      1  3/4 3  3/4   5/8   7/16   7/16 6 13/16
BBL2Q0C750P4N4 500 750 4 7  1/8 4      1  3/4 3  3/4   5/8   7/16   7/16 6 13/16
BBL2Q0C1000PN2 750 1000 2 7 13/16 4  1/2 1 15/16 4  1/8   7/8   1/2   1/2 8
BBL2Q0C1000P4N4 750 1000 4 7 13/16 4  1/2 1 15/16 4  1/8   7/8   1/2   1/2 8
BBL2P0C0000P3N4 2/0 4/0 4 5 11/16 3      1      3  1/4   5/8   1/4   5/16 5 11/16
BBL2P0C350P3N4 4/0 350 4 6  1/16 3      1  1/4 3  3/8   5/8   5/16   3/8 6  1/2
BBL2P0C500P4N4 350 500 4 6  5/8 4      1  7/16 3  1/2   5/8   3/8   3/8 7 11/16
BBL2P0C750P4N4 500 750 4 7  1/8 4      1  3/4 3  3/4   3/4   7/16   7/16 8 15/16
BBL2P0C1000P4N4 750 1000 4 7 13/16 4  1/2 1 15/16 4  1/8   7/8   1/2   1/2 10  3/16
