Catalog Number
|
Height | Length | Steel Size | Mounting Hole Size | Approx. Ship Wt. per Each | |||||
| inch | mm | inch | mm | inch | mm | inch | mm | lbs | kg | |

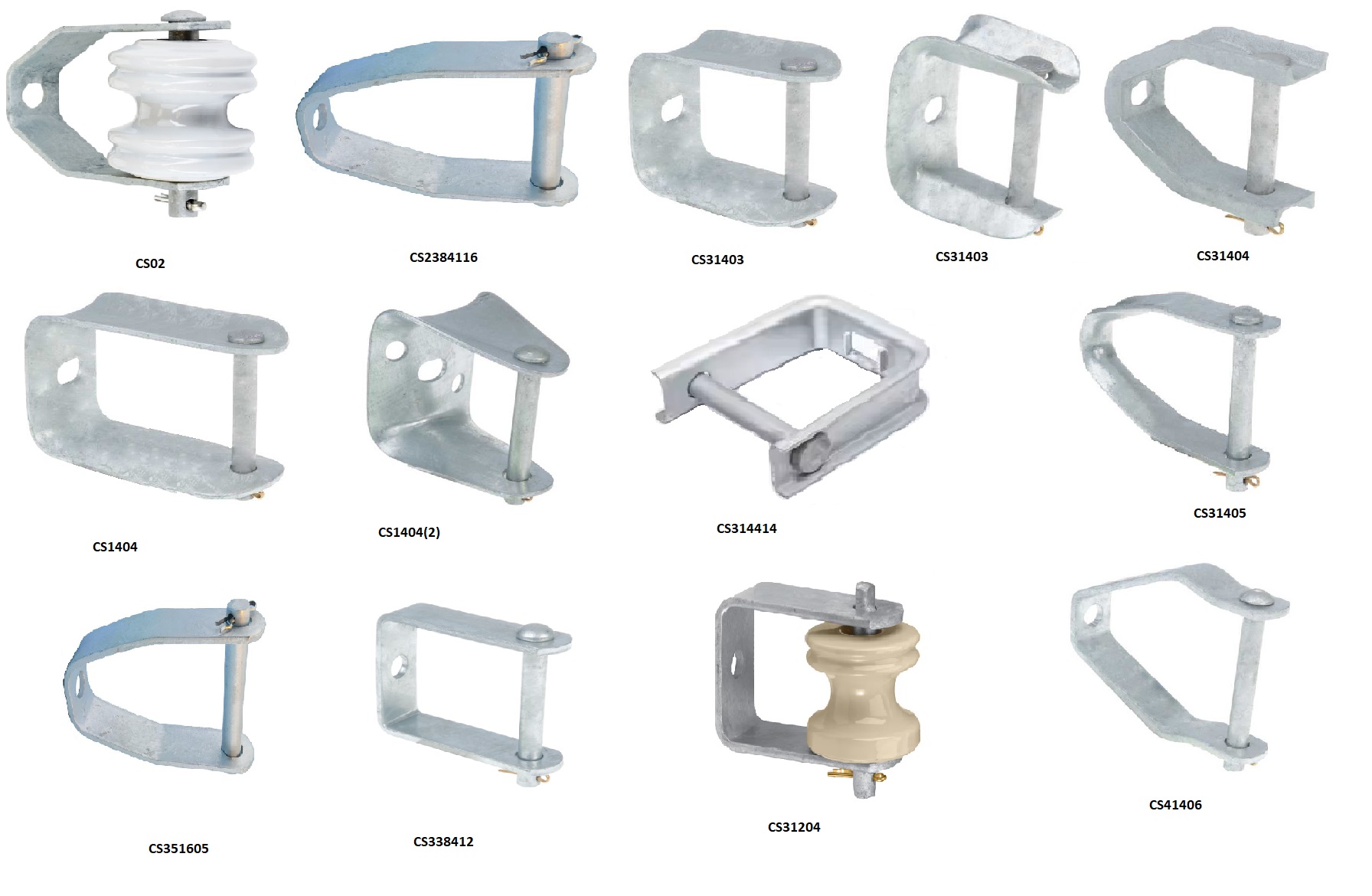

| CS02 PS7820 | 2" | 51 | 1/4" x 1 1/2" | 6 x 38 | 11/16" | 17 | 0,9 | 0,41 | ||
| 0341*# CS2384116 | 2 3/8" | 60 | 4 1/16" | 103 | 3/16" x 1 1/2" | 5 x 38 | 11/16" x 3/4" | 17 x 19 | 1,12 | 0,51 |
| 338 CS31403 |
3 1/4"
|
83
|
3"
|
76
|
3/16" x 3" | 5 x 76 | 11/16" x 1 1/8" | 17 x 29 | 2,04 | 0,93 |
| C2070024# CS31403 | 11 Ga. (.1196") | 11 Ga. (3) | 11/16" slot | 17 slot | 1,84 | 0,83 | ||||
| 461 CS31404 |
4"
|
102
|
1 1/2" x 1/2" x " Channel | 38 x 38 x " Channel | 11/16" x 25/32" | 17 x 20 | 1,58 | 0,72 | ||
| 0337# CS31404 | 3/16" x 3" | 5 x 76 | 11/16" x 1 1/8" | 17 x 29 | 2,4 | 1,09 | ||||
| 0327* CS31404(2) | 3/16" x 4" | 5 x 102 | 11/16" x 3/4" | 17 x 19 | 2,76 | 1,25 | ||||
| 469 CS314414 | 4 1/4" | 108 | 1 1/2" x 1/2" x 1/8" Channel | 38 x 13 x 3 Channel | 11/16" x 7/8" | 17 x 22 | 1,66 | 0,75 | ||
| 0352* CS31405 |
5"
|
127
|
3/16" x 1 1/2" | 5 x 38 | N/A | N/A | 1,52 | 0,69 | ||
| 0340# CS351605 | 3 5/16" | 84 | 3/16" x 1 1/2" | 5 x 38 | 11/16" x 3/4" | 17 x 19 | 1,44 | 0,65 | ||
| 0322# CS338412 | 3 3/8" | 86 | 4 1/2" | 114 | 1/4" x 1 1/2" | 6 x 38 | 11/16" | 17 | 1,86 | 0,84 |
| 468# CS31204 | 3 1/2" | 89 | 4" | 102 | 1" x 1/2" x 1/8" Channel | 25 x 13 x 3 Channel | 11/16" | 17 | 1,32 | 0,60 |
| 0344# CS41406 | 4 1/4" | 108 | 6" | 152 | 1/4" x 1 1/2" | 6 x 38 | 11/16" x 3/4" | 17 x 19 | 2,72 | 1,23 |
