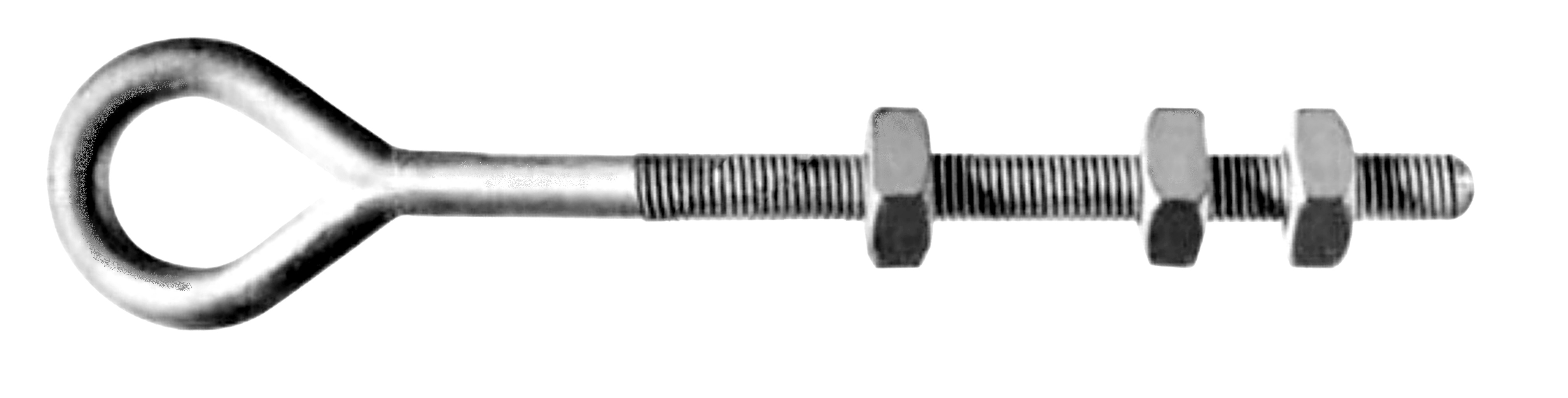

Bolts have a cone type point and are threaded to within 2" of the 1-1/2" x 2" eye.
Three 5/8" Square Nuts for each bolt.
Drop-forged steel. Hot dip galvanized.
Material: AISI 1015 HR. .59 cold drawn for .56 rolled threads
| Catalog No. | Bolt Dia. | Length | Thread Length | Eye Dimensions | Approx. Ship Wt. per Each |
| inch | inch | inch | inch | lbs | |
| FOEDAB5814 | 5/8 | 14 | 12 | 1-1/2" x 2" | 1.96 |
| FOEDAB5816 | 16 | 14 | 2.20 | ||
| FOEDAB5818 | 18 | 16 | 2.32 | ||
| FOEDAB5820 | 20 | 18 | 2.56 | ||
| FOEDAB5822 | 22 | 20 | 2.60 | ||
| FOEDAB5824 | 24 | 22 | 2.86 | ||
| FOEDAB5826 | 26 | 24 | 3.12 | ||
| FOEDAB5828 | 28 | 26 | 3.38 | ||
| FOEDAB3416 | 3/4 | 16 | 14 | 2.20 | |
| FOEDAB3418 | 18 | 16 | 2.32 | ||
| FOEDAB3420 | 20 | 18 | 2.56 | ||
| FOEDAB3422 | 22 | 20 | 2.60 | ||
| FOEDAB3424 | 24 | 22 | 2.86 | ||
| FOEDAB3426 | 26 | 24 | 3.12 |
