Material: Hot Dip Galvanized Steel Per ASTM A123 & CSA G164
| SUSPENSION CLAMPS | ||||||
|
Catalog No.
|
Type
|
Overall Length | Mtg. Hole Dia. | Strand Size |
Shipping Wt. Lbs (100 pcs)
|
Standard Package
|
| in | in | in | ||||
| MSC1347/16 | 1 Hole | 76 | 25 | |||
| MSC3347/16 | 3 Hole | 224 | 25 | |||
| MSC1587/16 | 1 Hole | 76 | 25 | |||
| MSC3587/16 | 3 Hole | 224 | 25 | |||

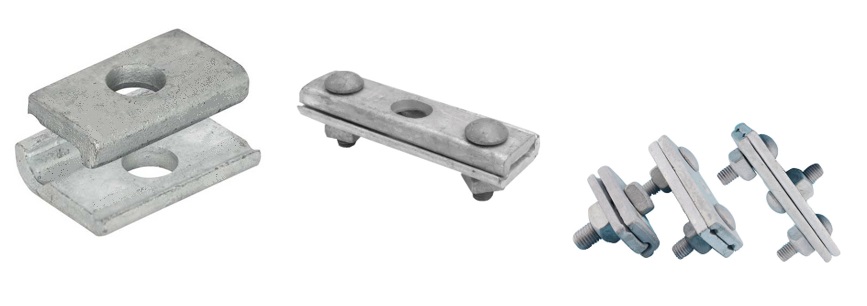

| Clamp Messenger Suspension-Straight Line Clamps | ||||||
| Catalog Number | Type | Mounting Bolt Hole Dia. | Messenger Cable Dia. | Clamp Length | Clamp Bolt Dia. | Approx. Ship Wt. Per Each (lbs) |
| MSSLC11116716 | One-Bolt | 11/16" | 1/4" to 7/16" | 2-1/2" | none | 0.75 |
| MSSLC21516716 | Two-Bolt | 11/16" x 15/16" | 1/4" to 7/16" | 5 3/4" | 1/2" x 1-5/8" | 1.78 |
| MSSLC2FK1516716 | Two-Bolt, Flat Keeper Plate | 11/16" x 15/16" | 1/4" to 7/16" | 5 3/4" | 1/2" x 1-5/8" | 1.77 |
| MSSLC21316716 | Two-Bolt | 13/16" | 1/4" to 7/16" | 5 3/4" | 1/2" x 1-5/8" | 1.75 |
| Clamp Messenger Suspension-Angled Clamps | ||||||
| Catalog Number | Type | Mounting Bolt Hole Dia. | Messenger Cable Dia. | Clamp Length | Clamp Bolt Dia. | Approx. Ship Wt. Per each (lbs) |
| MSAC21116716 | Two-Bolt | 11/16" | 1/4" to 7/16" | 7" | 1/2" x 1-5/8" | 2.04 |
| MSAC21316716 | Two Bolt | 11/16" | 1/4" to 7/16" | 7" | 1/2" x 1-5/8" | 2.04 |

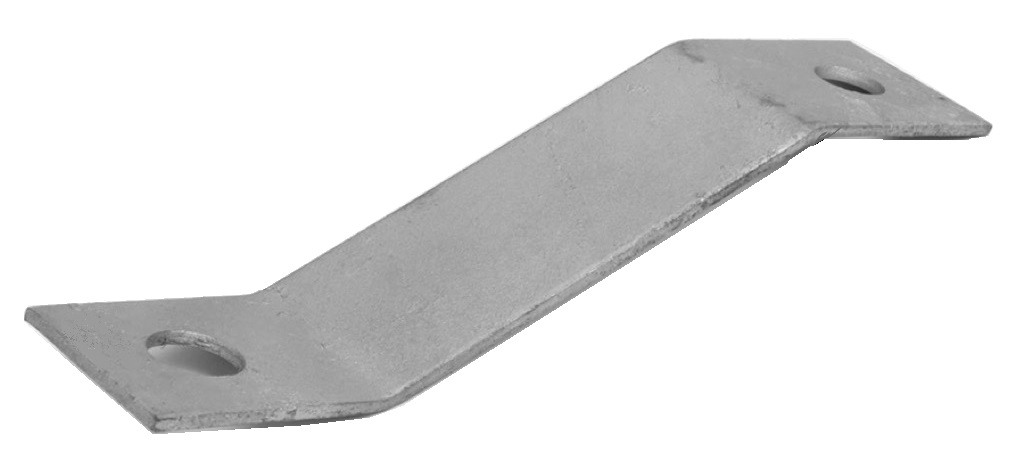

| Clamp Messenger Suspension-Strap, Suspension Clamp Reinforcing | ||||
| Catalog Number | Steel Size | Mounting | Hole to Hole Distance | Approx. Ship Wt. Per Each (lbs) |
| SSCR1121116 | 1/8" x 1-1/2" | 11/16" | 5-29/32" | 0.41 |
