Product Description
Bare aluminum EC grade solid conductor.

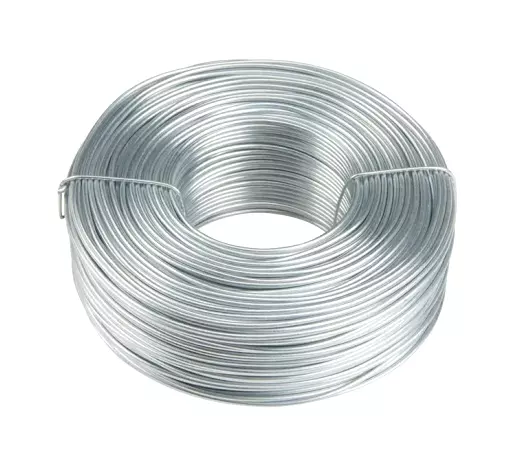

DSA “Utility Grade” Aluminum Tie Wire
We offers DSA “Utility Grade” Aluminum Tie Wire with greater elongation than standard soft drawn aluminum. Our “Utility Grade” Aluminum offers greater flexibility making it easier for lineman to tie down insulators on a hot line.
Application
To secure conductor to pin type insulators on a distribution line.
Specification Data
ASTM B-230 | Aluminum 1350-H19 wire for electrical purposes |
Catalog Number |
Size (AWG) | Stranding | Diameter | Weight | Breaking Strength | |||
inches | mm | lbs./1000 ft | Kg / Km | lbs. | KN | |||
BAL8S1 | 8 | SOLID | 0.1285 | 3.26 | 15.2 | 22.62 | 40 | 131.2 |
BAL6S1 | 6 | SOLID | 0.162 | 4.11 | 24.1 | 35.86 | 232 | 760.96 |
BAL4S1 | 4 | SOLID | 0.2043 | 5.19 | 38.4 | 57.14 | 369 | 1210.3 |
BAL2S1 | 2 | SOLID | 0.2576 | 6.54 | 61 | 90.77 | 586 | 1922.1 |
