Lugs b

: Category: Lugs b; Hits: 408

Material: Copper Alloy (bronze),

Hardware: SI Bronze

Notes

1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. holes in tongue
3. Other sizes available on request
4. E=1 3/4" H=9/16"
5. For angle pad add suffix LXX, Replace XX with angle required, for example, L45 = 45° angle
6. For tinned, add prefix "T"
7. All bolts come with Lockwasher and nut.
8. For Threaded Body add suffix "TB"

Cat. No.

CABLE SIZE¹

I.P.S

H.T.²

A

B

C

D

F

G

J

W

Min.

Max.

In

BB238C0PN1

6

1/0

1

3 1/4

1 1/2

1 1/4

1 3/4

3/4

1/4

3/8

2

BB238C0PN2

6

1/0

2

4 3/4

1 1/2

1 1/4

3 1/4

5/8

1/4

3/8

2

BB238C0P3N4

6

1/0

4

4 3/4

3

1 1/4

3 1/4

5/8

1/4

3/8

2

BB2C0PN1

6

1/0

1

3 5/16

1 1/2

1 1/4

1 3/4

3/4

1/4

1/2

2 1/4

BB2C0PN2

6

1/0

2

4 13/16

1 1/2

1 1/4

3 1/4

5/8

1/4

1/2

2 1/4

BB2C0P3N4

6

1/0

4

4 13/16

3

1 1/4

3 1/4

5/8

1/4

1/2

2 1/4

BB238C250PN1

1/0

250

1

3 7/16

1 1/2

1 3/8

1 3/4

3/4

5/16

3/8

2

BB238C250PN2

1/0

250

2

4 15/16

1 1/2

1 3/8

3 1/4

5/8

5/16

3/8

2

BB238C250P3N4

1/0

250

4

4 15/16

3

1 3/8

3 1/4

5/8

5/16

3/8

2

BB2C250PN1

1/0

250

1

3 5/8

1 1/2

1 3/8

1 3/4

3/4

5/16

1/2

2 1/4

BB2C250PN2

1/0

250

2

5 1/8

1 1/2

1 3/8

3 1/4

5/8

5/16

1/2

2 1/4

BB2C250P3N4

1/0

250

4

5 1/8

3

1 3/8

3 1/4

5/8

5/16

1/2

2 1/4

BB2C500PN1

4/0

500

1

3 5/8

1 1/2

1 3/4

3/4

3/8

1/2

2 1/4

BB2C500PN2

4/0

500

2

5 1/8

1 1/2

1 3/4

3 1/4

5/8

3/8

1/2

2 1/4

BB2C500P3N4

4/0

500

4

5 1/8

3

1 3/4

3 1/4

5/8

3/8

1/2

2 1/4

BB2C1000PN1

500

1000

1

3 3/4

1 1/2

2 5/16

1 3/4

3/4

7/16

1/2

2 1/4

BB2C1000PN2

500

1000

2

5 1/4

1 1/2

2 5/16

3 1/4

5/8

7/16

1/2

2 1/4

BB2C1000P3N4

500

1000

4

5 1/4

3

2 5/16

3 1/4

5/8

7/16

1/2

2 1/4

BBC00PN2

#4

2/0

1/8

2

5 3/4

1 3/8

1 5/16

3 1/4

5/8

9/32

1/2

2 3/8

BBC00P3N4

#5

2/0

1/8

4

5 3/4

3

1 5/16

3 1/4

5/8

9/32

1/2

2 3/8

BBC350PN2

2/0

350

3/8

2

6 1/8

1 1/2

1 3/4

3 5/16

5/8

5/16

1/2

2 3/8

BBC350P3N4

2/0

350

3/8

4

6 1/8

3

1 3/4

3 5/16

5/8

5/16

1/2

2 3/8

BBC600PN2

350

600

1/2

2

6 3/16

1 1/2

2 1/8

3 3/8

5/8

3/8

1/2

2 7/16

BBC600P3N4

350

600

1/2

4

6 3/16

3

2 1/8

3 3/8

5/8

3/8

1/2

2 7/16

BBC600P4N4

350

600

1/2

4

6 3/16

4

2 1/8

3 3/8

5/8

3/8

1/2

2 7/16

BBC1000PN2

600

1000

3/4

2

6 1/2

1 3/4

2 1/2

3 1/2

5/8

15/32

1/2

2 9/16

BBC1000P3N4

600

1000

3/4

4

6 1/2

3

2 1/2

3 1/2

5/8

15/32

1/2

2 9/16

BBC1500PN2

1000

1500

1

2

6 13/16

2

2 7/8

3 5/8

5/8

9/16

1/2

2 13/16

BBC1500P3N4

1000

1500

1

4

6 13/16

3

2 7/8

3 5/8

5/8

9/16

1/2

2 13/16

BBC2000PN2

1500

2000

1 1/4

2

7 1/8

2 1/4

3 1/4

3 3/4

5/8

1/2

3 1/16

BBC2000P3N4

1500

2000

1 1/4

4

7 1/8

3

3 1/4

3 3/4

5/8

1/2

3 1/16

: Category: Lugs b; Hits: 431

TERMINAL LUGS, IPS TUBE WITH VARYING ANGLES

Material: Copper alloy, Hardware SI Bronze

Notes

1. Holes on tongue.
2.Other sizes available on request.
3.for Stainless steel hardware add suffix "SS".
4.Suffix "6" indicates 3/8" bolt
5. Add prefix "T" for tinned
6. Bolts come with washer and lockwasher

Items listed are straight versions, for angled pads add suffix L"angle". Ex: L45 for 45°

Cat. No.⁴	I.P.S	H.T.²	A	B	C	D	E	J
Cat. No.⁴	I.P.S	H.T.²	In	In	In	In	In	In
BB438B12PN2	1/2	2	5 3/8	2	1 1/2	3 3/8	5/16	3/8
BB438B12P3N4	1/2	4	5 3/8	2	3	3 3/8	5/16	3/8
BBB12PN2	1/2	2	5 5/8	2 1/4	1 1/2	3 3/8	5/16	1/2
BBB12P3N4	1/2	4	5 5/8	2 1/4	3	3 3/8	5/16	1/2
BB438B34PN2	3/4	2	5 1/2	2 1/8	1 3/4	3 3/8	11/32	3/8
BB438B34P3N4	3/4	4	5 1/2	2 1/8	3	3 3/8	11/32	3/8
BBB34PN2	3/4	2	5 3/4	2 3/8	1 3/4	3 3/8	11/32	1/2
BBB34P3N4	3/4	4	5 3/4	2 3/8	3	3 3/8	11/32	1/2
BB438B1PN2	1	2	5 5/8	2 1/4	2	3 3/8	3/8	3/8
BB438B1P3N4	1	4	5 5/8	2 1/4	3	3 3/8	3/8	3/8
BBB1PN2	1	2	5 7/8	2 1/2	2	3 3/8	3/8	1/2
BBB1P3N4	1	4	5 7/8	2 1/2	3	3 3/8	3/8	1/2
BBB114PN2	1 1/4	2	6 1/16	2 5/8	2 1/4	3 7/16	3/8	1/2
BBB114P3N4	1 1/4	4	6 1/16	2 5/8	3	3 7/16	3/8	1/2
BBB112PN2	1 1/2	2	6 1/4	2 3/4	2 1/2	3 1/2	7/16	1/2
BBB112P3N4	1 1/2	4	6 1/4	2 3/4	3	3 1/2	7/16	1/2
BBB2PN2	2	2	6 3/8	2 7/8	2 3/4	3 1/2	1/2	1/2
BBB2P3N4	2	4	6 3/8	2 7/8	3	3 1/2	1/2	1/2
BBB212PN2	2 1/2	2	6 1/2	3	3	3 1/2	9/16	1/2
BBB212P3N4	2 1/2	4	6 1/2	3	3	3 1/2	9/16	1/2
BBB3PN2	3	2	6 3/4	3 1/4	3	3 1/2	5/8	5/8
BBB3P3N4	3	4	6 3/4	3 1/4	3	3 1/2	5/8	5/8
BBB312P3N4	3 1/2	4	7	3 1/2	3	3 1/2	3/4	5/8
BBB4P3N4	4	4	7 1/4	3 3/4	3	3 1/2	3/4	5/8

: Category: Lugs b; Hits: 537

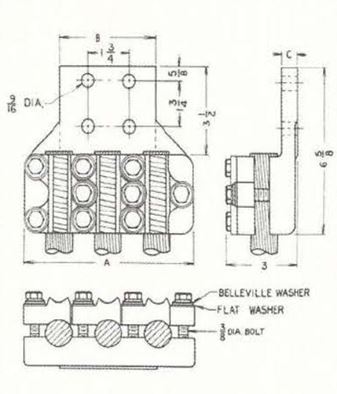

TERMINAL LUGS FOR ONE THROUGH FOUR CABLES

Notes

1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. holes in tongue
3. Other sizes available on request

Cat. No.	CABLE SIZE¹		H.T.²	A	B	C
Cat. No.	Min.	Max.	H.T.²	In	In	In
BB3C1000P3N4	#2	1000	4	3 1/8	3	5/8
BB3D0C1000P3N4	#2	1000	4	5 1/4	3	5/8
BB3T0C1000P4N4	#2	1000	4	7 3/8	4	5/8
BB3Q0C1000P4N4	#2	1000	4	9 1/2	4	5/8

: Category: Lugs b; Hits: 416

BB2CP	BBCP
TERMINAL LUGS, ONE CABLE, STRAIGHT	TERMINAL LUGS, ONE CABLE/ TUBE STRAIGHT

Notes

1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. holes in tongue
3. Other sizes available on request
4. E=1 3/4" H=9/16"

Cat. No.

CABLE SIZE¹

I.P.S

H.T.²

A

B

C

D

F

G

J

W

Min.

Max.

In

BB238C0PN1

6

1/0

1

3 1/4

1 1/2

1 1/4

1 3/4

3/4

1/4

3/8

2

BB238C0PN2

6

1/0

2

4 3/4

1 1/2

1 1/4

3 1/4

5/8

1/4

3/8

2

BB238C0P3N4

6

1/0

4

4 3/4

3

1 1/4

3 1/4

5/8

1/4

3/8

2

BB2C0PN1

6

1/0

1

3 5/16

1 1/2

1 1/4

1 3/4

3/4

1/4

1/2

2 1/4

BB2C0PN2

6

1/0

2

4 13/16

1 1/2

1 1/4

3 1/4

5/8

1/4

1/2

2 1/4

BB2C0P3N4

6

1/0

4

4 13/16

3

1 1/4

3 1/4

5/8

1/4

1/2

2 1/4

BB238C250PN1

1/0

250

1

3 7/16

1 1/2

1 3/8

1 3/4

3/4

5/16

3/8

2

BB238C250PN2

1/0

250

2

4 15/16

1 1/2

1 3/8

3 1/4

5/8

5/16

3/8

2

BB238C250P3N4

1/0

250

4

4 15/16

3

1 3/8

3 1/4

5/8

5/16

3/8

2

BB2C250PN1

1/0

250

1

3 5/8

1 1/2

1 3/8

1 3/4

3/4

5/16

1/2

2 1/4

BB2C250PN2

1/0

250

2

5 1/8

1 1/2

1 3/8

3 1/4

5/8

5/16

1/2

2 1/4

BB2C250P3N4

1/0

250

4

5 1/8

3

1 3/8

3 1/4

5/8

5/16

1/2

2 1/4

BB2C500PN1

4/0

500

1

3 5/8

1 1/2

1 3/4

3/4

3/8

1/2

2 1/4

BB2C500PN2

4/0

500

2

5 1/8

1 1/2

1 3/4

3 1/4

5/8

3/8

1/2

2 1/4

BB2C500P3N4

4/0

500

4

5 1/8

3

1 3/4

3 1/4

5/8

3/8

1/2

2 1/4

BB2C1000PN1

500

1000

1

3 3/4

1 1/2

2 5/16

1 3/4

3/4

7/16

1/2

2 1/4

BB2C1000PN2

500

1000

2

5 1/4

1 1/2

2 5/16

3 1/4

5/8

7/16

1/2

2 1/4

BB2C1000P3N4

500

1000

4

5 1/4

3

2 5/16

3 1/4

5/8

7/16

1/2

2 1/4

BBC00PN2

#4

2/0

1/8

2

5 3/4

1 3/8

1 5/16

3 1/4

5/8

9/32

1/2

2 3/8

BBC00P3N4

#5

2/0

1/8

4

5 3/4

3

1 5/16

3 1/4

5/8

9/32

1/2

2 3/8

BBC350PN2

2/0

350

3/8

2

6 1/8

1 1/2

1 3/4

3 5/16

5/8

5/16

1/2

2 3/8

BBC350P3N4

2/0

350

3/8

4

6 1/8

3

1 3/4

3 5/16

5/8

5/16

1/2

2 3/8

BBC600PN2

350

600

1/2

2

6 3/16

1 1/2

2 1/8

3 3/8

5/8

3/8

1/2

2 7/16

BBC600P3N4

350

600

1/2

4

6 3/16

3

2 1/8

3 3/8

5/8

3/8

1/2

2 7/16

BBC1000PN2

600

1000

3/4

2

6 1/2

1 3/4

2 1/2

3 1/2

5/8

15/32

1/2

2 9/16

BBC1000P3N4

600

1000

3/4

4

6 1/2

3

2 1/2

3 1/2

5/8

15/32

1/2

2 9/16

BBC1500PN2

1000

1500

1

2

6 13/16

2

2 7/8

3 5/8

5/8

9/16

1/2

2 13/16

BBC1500P3N4

1000

1500

1

4

6 13/16

3

2 7/8

3 5/8

5/8

9/16

1/2

2 13/16

BBC2000PN2

1500

2000

1 1/4

2

7 1/8

2 1/4

3 1/4

3 3/4

5/8

1/2

3 1/16

BBC2000P3N4

1500

2000

1 1/4

4

7 1/8

3

3 1/4

3 3/4

5/8

1/2

3 1/16
