Product Description

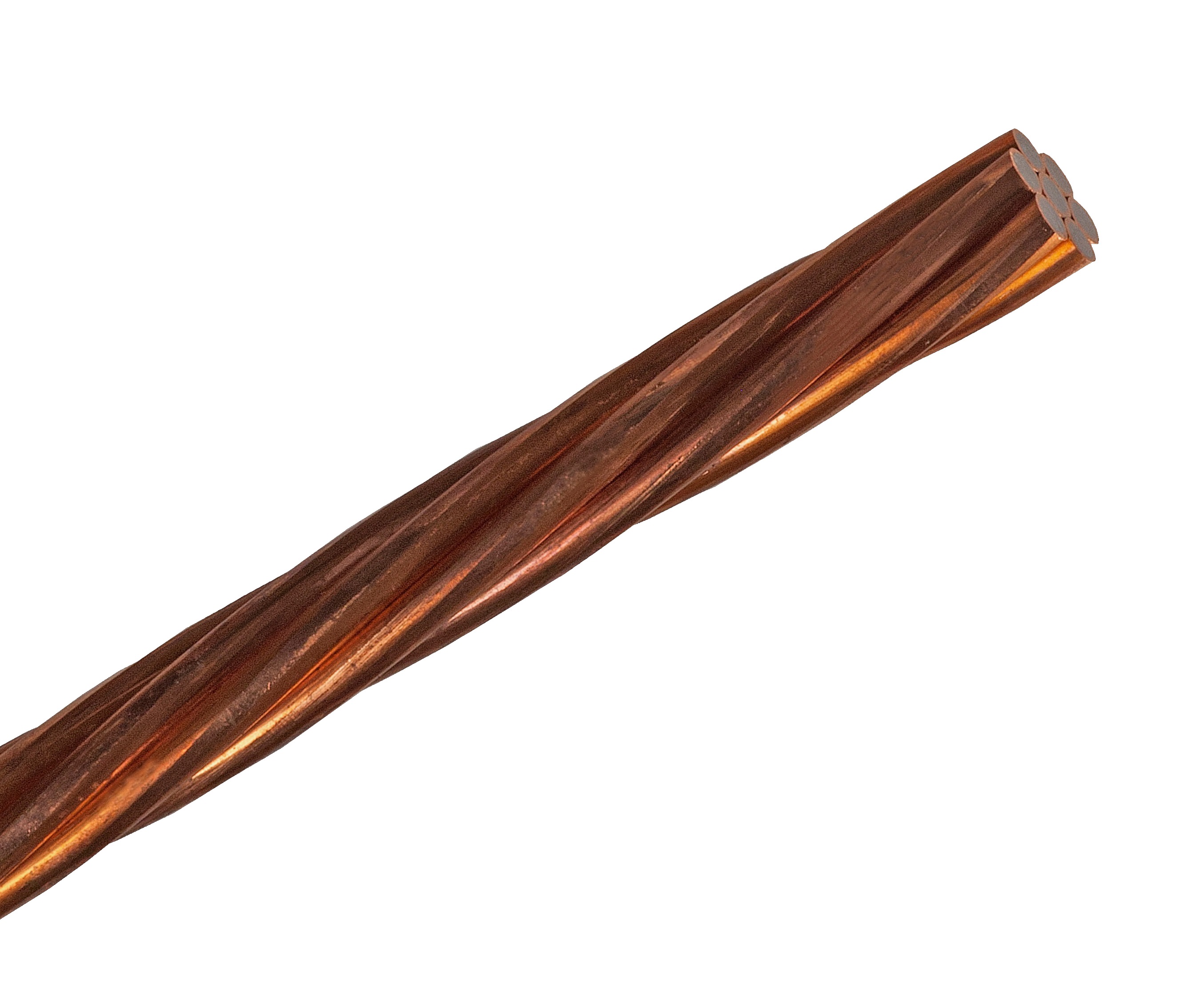

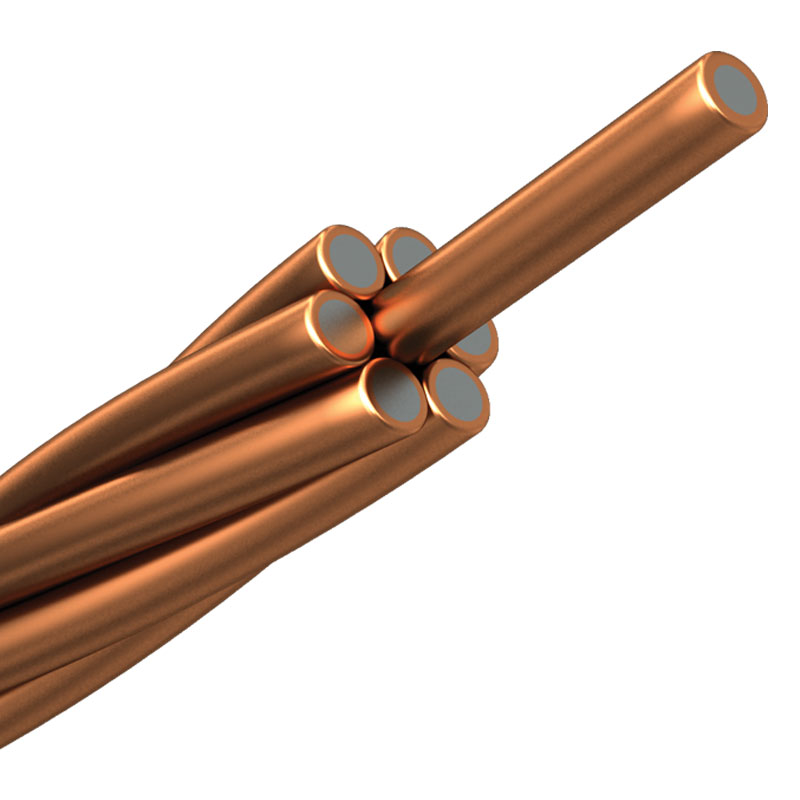

Hard drawn and annealed, 40% and 30% conductivity copper-clad steel wire. Tempers available: high-strength (HS), extra-high-strength (EHS), or dead-soft annealed (DSA).
Application
Ground wires; telephone, telegraph, and railway signal line.
Specification Data
| ASTM B-227 | Hard drawn copper-clad steel wire |
| ASTM B-910 | Annealed copper-clad steel wire |
| Solid Bare Copper-Clad Steel | |||||||||||||||||
| Catalog Number |
Size (AWG) | Diameter | Breaking Load (Lbs) | Weight | Resistance | Resistance | |||||||||||
| 40% Conductivity | 30% Conductivity | Ohms per 1,000Ft. At 68°F. | Ohms per Km. At 68°F. | ||||||||||||||
| (inches) | (mm) | Hard Drawn Minimum | Annealed Approx. | Hard Drawn Minimum | Annealed Approx. | Lbs. per 1,000 Ft | kg per km | 40% Conductivity | 30% Conductivity | 40% Conductivity | 30% Conductivity | ||||||
| lbs. | kn | lbs. | kn | lbs. | kn | lbs. | kn | ||||||||||
| 4 | 0.2043 | 5.19 | 2,750 | 12.24 | 1,480 | 6.59 | 2,950 | 13.13 | 1,640 | 7.30 | 115.8 | 172.31 | 0.6337 | 0.8447 | 2.07854 | 2.77062 | |
| 5 | 0.1819 | 4.62 | 2,260 | 10.06 | 1,170 | 5.21 | 2,420 | 10.77 | 1,300 | 5.79 | 91.86 | 136.69 | 0.799 | 1.065 | 2.62072 | 3.49320 | |
| 6 | 0.162 | 4.11 | 1,865 | 8.30 | 930 | 4.14 | 2,000 | 8.90 | 1,030 | 4.58 | 72.85 | 108.40 | 1.008 | 1.343 | 3.30624 | 4.40504 | |
| 7 | 0.1443 | 3.67 | 1,540 | 6.85 | 740 | 3.29 | 1,630 | 7.25 | 820 | 3.65 | 57.77 | 85.96 | 1.27 | 1.694 | 4.16560 | 5.55632 | |
| 8 | 0.1285 | 3.26 | 1,265 | 5.63 | 580 | 2.58 | 1,350 | 6.01 | 650 | 2.89 | 45.81 | 68.17 | 1.602 | 2.136 | 5.25456 | 7.00608 | |
| 9 | 0.1144 | 2.91 | 1,040 | 4.63 | 460 | 2.05 | 1,110 | 4.94 | 510 | 2.27 | 36.33 | 54.06 | 2.02 | 2.693 | 6.62560 | 8.83304 | |
| 10 | 0.1019 | 2.59 | 850 | 3.78 | 370 | 1.65 | 925 | 4.12 | 410 | 1.82 | 28.81 | 42.87 | 2.547 | 3.396 | 8.35416 | 11.13888 | |
| 11 | 0.09074 | 2.30 | 700 | 3.12 | 320 | 1.42 | 765 | 3.40 | 360 | 1.60 | 22.85 | 34.00 | 3.213 | 4.284 | 10.53864 | 14.05152 | |
| 12 | 0.08081 | 2.05 | 575 | 2.56 | 260 | 1.16 | 625 | 2.78 | 280 | 1.25 | 18.12 | 26.96 | 4.051 | 5.399 | 13.28728 | 17.70872 | |
| Copper-Clad Steel Tie Wire | ||||||||||||
| Catalog Number |
Size (AWG) | Diameter | Weight | Approximate Number of Feet Per Pound | Approximate Number of m Per kg | Approximate Number of Tie Wires in 10-Pound Package for Lengths of | ||||||
| (inches) | (mm) | lbs./1000ft | kg / km | 24′ | 26′ | 28′ | 30′ | 32′ | ||||
| 8 | 0.1285 | 3.26 | 45.81 | 68.17 | 21.8 | 14.7 | 110 | 100 | 92 | 86 | 82 | |
| 9 | 0.1144 | 2.91 | 36.33 | 54.06 | 27.5 | 18.5 | 138 | 126 | 118 | 110 | 102 | |
| 10 | 0.1019 | 2.59 | 28.81 | 42.87 | 34.7 | 23.3 | 174 | 160 | 148 | 138 | 130 | |
| 11 | 0.09007 | 2.29 | 22.85 | 34.00 | 43.7 | 29.4 | 220 | 202 | 186 | 176 | 164 | |
| 12 | 0.0808 | 2.05 | 18.12 | 26.96 | 55.2 | 37.1 | 274 | 256 | 236 | 220 | 206 | |
