AWLCP
Material: Aluminum Alloy
| ALUMINIUM CONNECTORS | |||||
| CATALOG NUMBER |

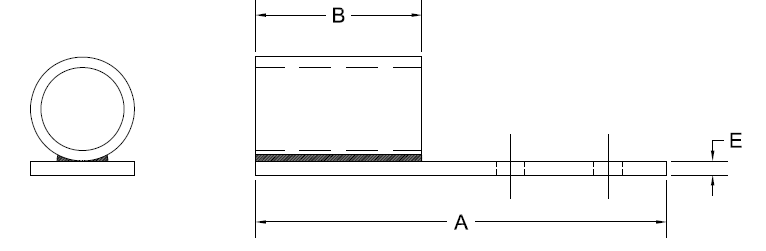

CABLE RANGE | DIMENSIONS (IN INCHES) | |||
| DECIMAL | MCM OR AWG | A | B | E | |
| AWC0PN2 | .368 - .373 | 1/0 | 6.250 | 2.000 | 0.375 |
| AWC00PN2 | .398 - .418 | 2/0 | 6.250 | 2.000 | 0.375 |
| AWC000PN2 | .447 - .470 | 3/0 | 6.250 | 2.000 | 0.375 |
| AWC0000PN2 | .502 - .528 | 4/0 | 6.250 | 2.000 | 0.375 |
| AWC266PN2 | .563 - .593 | 250 – 266.8 | 6.250 | 2.000 | 0.375 |
| AWC266P3N4 | .563 - .593 | 250 – 266.8 | 6.250 | 2.000 | 0.375 |
| AWC336PN2 | .625 - .670 | 300 – 336.4 | 6.250 | 2.000 | 0.375 |
| AWC336P3N4 | .625 - .670 | 300 – 336.4 | 6.250 | 2.000 | 0.375 |
| AWC350PN2 | .666 - .684 | 336.4 – 350 | 6.250 | 2.000 | 0.375 |
| AWC350P3N4 | .666 - .684 | 336.4 – 350 | 6.250 | 2.000 | 0.375 |
| AWC400PN2 | .721 - .728 | 397.5 – 400 | 6.250 | 2.000 | 0.375 |
| AWC400P3N4 | .721 - .728 | 397.5 – 400 | 6.250 | 2.000 | 0.375 |
| AWC477PN2 | .772 - .795 | 450 – 477 | 6.250 | 2.000 | 0.375 |
| AWC477P3N4 | .772 - .795 | 450 – 477 | 6.250 | 2.000 | 0.375 |
| AWC500PN2 | .806 - .846 | 500 | 6.250 | 2.000 | 0.375 |
| AWC500P3N4 | .806 - .846 | 500 | 6.250 | 2.000 | 0.375 |
| AWC556PN2 | .855 - .883 | 550 – 556.5 | 6.250 | 2.000 | 0.500 |
| AWC556P3N4 | .855 - .883 | 550 – 556.5 | 6.250 | 2.000 | 0.500 |
| AWC650PN2 | .891 - .930 | 600 – 650 | 6.250 | 2.000 | 0.500 |
| AWC650P3N4 | .891 - .930 | 600 - 650 | 6.250 | 2.000 | 0.500 |
| AWC715PN2 | .953 - .977 | 700 – 715.5 | 6.250 | 2.000 | 0.500 |
| AWC715P3N4 | .953 - .977 | 700 – 715.5 | 6.250 | 2.000 | 0.500 |
| AWC795PN2 | .990 – 1.028 | 750 – 795 | 6.250 | 2.000 | 0.500 |
| AWC795P3N4 | .990 – 1.028 | 750 – 795 | 6.250 | 2.000 | 0.500 |
| AWC874PN2 | 1.031 – 1.081 | 800 – 874.5 | 6.250 | 2.000 | 0.500 |
| AWC874P3N4 | 1.031 – 1.081 | 800 – 874.5 | 6.250 | 2.000 | 0.500 |
| AWC954PN2 | 1.093 – 1.125 | 900 – 954 | 6.250 | 2.000 | 0.500 |
| AWC954P3N4 | 1.093 – 1.125 | 900 – 954 | 6.250 | 2.000 | 0.500 |
| AWC1033PN2 | 1.140 – 1.172 | 1000 – 1033.5 | 6.250 | 2.000 | 0.500 |
| AWC1033P3N4 | 1.140 – 1.172 | 1000 – 1033.5 | 6.250 | 2.000 | 0.500 |
| AWC1113PN2 | 1.209 – 1.246 | 1100 – 1113 | 6.750 | 2.500 | 0.750 |
| AWC1113P4N4 | 1.209 – 1.246 | 1000 – 1113 | 7.750 | 2.500 | 0.750 |
| AWC1300PN2 | 1.263 – 1.315 | 1200 – 1300 | 6.750 | 2.500 | 0.750 |
| AWC1300P4N4 | 1.263 – 1.315 | 1200 – 1300 | 7.750 | 2.500 | 0.750 |
| AWC1500PN2 | 1.364 – 1.412 | 1400 – 1500 | 6.750 | 2.500 | 0.750 |
| AWC1500P4N4 | 1.364 – 1.412 | 1400 – 1500 | 7.750 | 2.500 | 0.750 |
| AWC1700P4N4 | 1.454 – 1.504 | 1590 – 1700 | 7.750 | 2.500 | 0.750 |
| AWC1900P4N4 | 1.526 – 1.590 | 1750 – 1900 | 7.750 | 2.500 | 0.750 |
| AWC2000P4N4 | 1.630 – 1.631 | 2000 | 7.750 | 2.500 | 0.750 |
| AWC2500P4N4 | 1.762 – 1.824 | 2500 | 7.750 | 2.500 | 1.000 |
