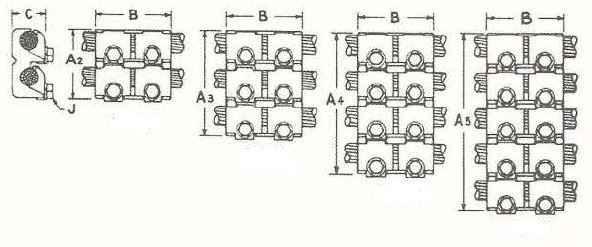

MULTIPLE CABLE COUPLER
Notes
1. All cables sizes shown are stranded, 350 and above are kcmil sizes
| Cat. No. | CABLE SIZE1 | A2 | A3 | A4 | AS | B | C | J | |
| Min. | Max. | In | In | In | In | In | In | In | |
| BB2D0C1C1 | #4 | #1 | 1 5/8 | 2 1/2 | 3 3/8 | 4 1/4 | 1 11/16 | 3/4 | 1/4 |
| BB2D0C00C00 | 1/0 | 2/0 | 1 15/16 | 2 15/16 | 3 15/16 | 4 15/16 | 2 1/8 | 13/16 | 5/16 |
| BB2D0C0000C0000 | 2/0 | 4/0 | 2 3/16 | 3 5/16 | 4 7/16 | 5 9/16 | 2 7/16 | 1 | 5/16 |
| BB2D0C350C350 | 4/0 | 350 | 2 5/8 | 3 7/8 | 5 1/8 | 6 3/8 | 2 3/4 | 1 1/4 | 3/8 |
| BB2D0C500C500 | 350 | 500 | 2 15/16 | 4 1/2 | 6 | 7 1/2 | 3 1/4 | 1 7/16 | 3/8 |
| BB2D0C750C750 | 500 | 750 | 3 7/16 | 5 3/16 | 6 15/16 | 8 11/16 | 3 3/4 | 1 3/4 | 7/16 |
| BB2D0C1000C1000 | 750 | 1000 | 3 15/16 | 5 15/16 | 7 15/16 | 9 15/16 | 4 7/16 | 1 15/16 | 1/2 |
| BB2T0C1C1 | #4 | #1 | 1 5/8 | 2 1/2 | 3 3/8 | 4 1/4 | 1 11/16 | 1 3/4 | 1/4 |
| BB2T0C00C00 | 1/0 | 2/0 | 1 15/16 | 2 15/16 | 3 15/16 | 4 15/16 | 2 1/8 | 13/16 | 5/16 |
| BB2T0C0000C0000 | 2/0 | 4/0 | 2 3/16 | 3 5/16 | 4 7/16 | 5 9/16 | 2 7/16 | 1 | 5/16 |
| BB2T0C350C350 | 4/0 | 350 | 2 5/8 | 3 7/8 | 5 1/8 | 6 3/8 | 2 3/4 | 1 1/4 | 3/8 |
| BB2T0C500C500 | 350 | 500 | 2 15/16 | 4 1/2 | 6 | 7 1/2 | 3 1/4 | 1 7/16 | 3/8 |
| BB2T0C750C750 | 500 | 750 | 3 7/16 | 5 3/16 | 6 15/16 | 8 11/16 | 3 3/4 | 1 3/4 | 7/16 |
| BB2T0C1000C1000 | 750 | 1000 | 3 15/16 | 5 15/16 | 7 15/16 | 9 15/16 | 4 7/16 | 1 15/16 | 1/2 |
| BB2Q0C1C1 | #4 | #1 | 1 5/8 | 2 1/2 | 3 3/8 | 4 1/4 | 1 11/16 | 3/4 | 1/4 |
| BB2Q0C00C00 | 1/0 | 2/0 | 1 15/16 | 2 15/16 | 3 15/16 | 4 15/16 | 2 1/8 | 13/16 | 5/16 |
| BB2Q0C0000C0000 | 2/0 | 4/0 | 2 3/16 | 3 5/16 | 4 7/16 | 5 9/16 | 2 7/16 | 1 | 5/16 |
| BB2Q0C350C350 | 4/0 | 350 | 2 5/8 | 3 7/8 | 5 1/8 | 6 3/8 | 2 3/4 | 1 1/4 | 3/8 |
| BB2Q0C500C500 | 350 | 500 | 2 15/16 | 4 1/2 | 6 | 7 1/2 | 3 1/4 | 1 7/16 | 3/8 |
| BB2Q0C750C750 | 500 | 750 | 3 7/16 | 5 3/16 | 6 15/16 | 8 11/16 | 3 3/4 | 1 3/4 | 7/16 |
| BB2Q0C1000C1000 | 750 | 1000 | 3 15/16 | 5 15/16 | 7 15/16 | 9 15/16 | 4 7/16 | 1 15/16 | 1/2 |
| BB2P0C1C1 | #4 | #1 | 1 5/8 | 2 1/2 | 3 3/8 | 4 1/4 | 1 11/16 | 3/4 | 1/4 |
| BB2P0C00C00 | 1/0 | 2/0 | 1 15/16 | 2 15/16 | 3 15/16 | 4 15/16 | 2 1/8 | 13/16 | 5/16 |
| BB2P0C0000C0000 | 2/0 | 4/0 | 2 3/16 | 3 5/16 | 4 7/16 | 5 9/16 | 2 7/16 | 1 | 5/16 |
| BB2P0C350C350 | 4/0 | 350 | 2 5/8 | 3 7/8 | 5 1/8 | 6 3/8 | 2 3/4 | 1 1/4 | 3/8 |
| BB2P0C500C500 | 350 | 500 | 2 15/16 | 4 1/2 | 6 | 7 1/2 | 3 1/4 | 1 7/16 | 3/8 |
| BB2P0C750C750 | 500 | 750 | 3 7/16 | 5 3/16 | 6 15/16 | 8 11/16 | 3 3/4 | 1 3/4 | 7/16 |
| BB2P0C1000C1000 | 750 | 1000 | 3 15/16 | 5 15/16 | 7 15/16 | 9 15/16 | 4 7/16 | 1 15/16 | 1/2 |
