| BBFSTB | BBSTB |

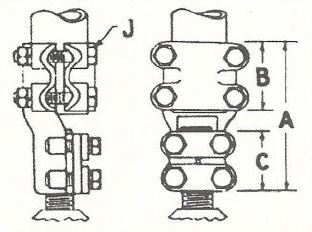

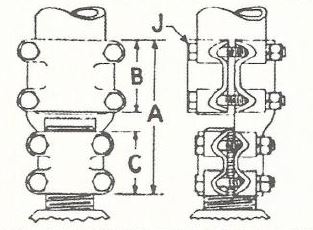

STUD CONNECTOR FOR TUBE
Notes
1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. Other sizes available on request
3. J= 1/2"
4. Items listed are straight versions, for angled pads add suffix L"angle". Ex: L90 for 90°
| Cat. No. | I.P.S | Stud Size | A | A 90 | B | C | J |
| In | In | In | In | In | |||
| BBFST34TH16B12 | 1/2 | 3/4-16 | 4 15/16 | 5 3/16 | 2 1/4 | 2 | 1/2 |
| BBFST34TH16B34 | 3/4 | 3/4-16 | 5 1/6 | 5 7/16 | 2 3/8 | 2 | 1/2 |
| BBFST34TH16B1 | 1 | 3/4-16 | 5 3/16 | 5 7/8 | 2 1/2 | 2 | 1/2 |
| BBFST1TH14B34 | 3/4 | 1-14 | 5 3/8 | 5 5/8 | 2 3/8 | 2 3/16 | 1/2 |
| BBFST1TH14B1 | 1 | 1-14 | 5 1/2 | 5 3/4 | 2 1/2 | 2 3/16 | 1/2 |
| BBFST1TH14B114 | 1 1/4 | 1-14 | 5 5/8 | 5 7/8 | 2 5/8 | 2 3/16 | 1/2 |
| BBFST1TH14B112 | 1 1/2 | 1-14 | 5 3/4 | 6 | 2 3/4 | 2 3/16 | 1/2 |
| BBFST118TH12B34 | 3/4 | 1 1/8-12 | 5 3/8 | 5 5/8 | 2 3/8 | 2 3/16 | 1/2 |
| BBFST118TH12B1 | 1 | 1 1/8-12 | 5 1/2 | 5 3/4 | 2 1/2 | 2 3/16 | 1/2 |
| BBFST118TH12B114 | 1 1/4 | 1 1/8-12 | 5 5/8 | 5 7/8 | 2 5/8 | 2 3/16 | 1/2 |
| BBFST118TH12B112 | 1 1/2 | 1 1/8-12 | 5 3/4 | 6 | 2 3/4 | 2 3/16 | 1/2 |
| BBFST114TH12B34 | 3/4 | 1 1/4-12 | 5 7/8 | 6 3/16 | 2 3/8 | 2 3/8 | 1/2 |
| BBFST114TH12B1 | 1 | 1 1/4-12 | 6 | 6 5/16 | 2 1/2 | 2 3/8 | 1/2 |
| BBFST114TH12B114 | 1 1/4 | 1 1/4-12 | 6 1/8 | 6 7/16 | 2 5/8 | 2 3/8 | 1/2 |
| BBFST114TH12B112 | 1 1/2 | 1 1/4-12 | 6 1/4 | 6 9/16 | 2 3/4 | 2 3/8 | 1/2 |
| BBFST112TH12B34 | 3/4 | 1 1/2-12 | 5 7/8 | 6 3/16 | 2 3/8 | 2 3/8 | 1/2 |
| BBFST112TH12B1 | 1 | 1 1/2-12 | 6 | 6 5/16 | 2 1/2 | 2 3/8 | 1/2 |
| BBFST112TH12B114 | 1 1/4 | 1 1/2-12 | 6 1/8 | 6 7/16 | 2 5/8 | 2 3/8 | 1/2 |
| BBFST112TH12B112 | 1 1/2 | 1 1/2-12 | 6 1/4 | 6 9/16 | 2 3/4 | 2 3/8 | 1/2 |
| BBFST112TH12B2 | 2 | 1 1/2-12 | 6 3/8 | 6 13/16 | 2 7/8 | 2 3/8 | 1/2 |
| BBFST112TH12B212 | 2 1/2 | 1 1/2-12 | 6 1/2 | 6 15/16 | 3 | 2 3/8 | 1/2 |
| BBST2TH12B114 | 1 1/4 | 2-12 | 6 1/8 | 6 7/8 | 2 5/8 | 2 1/2 | 1/2 |
| BBST2TH12B112 | 1 1/2 | 2-12 | 6 1/4 | 7 | 2 3/4 | 2 1/2 | 1/2 |
| BBST2TH12B2 | 2 | 2-12 | 6 3/8 | 7 1/8 | 2 7/8 | 2 1/2 | 1/2 |
| BBST2TH12B212 | 2 1/2 | 2-12 | 6 1/2 | 7 1/4 | 3 | 2 1/2 | 1/2 |
| BBST2TH12B3 | 3 | 2-12 | 7 | 7 7/8 | 3 1/4 | 2 1/2 | 5/8 |
| BBST212TH12B112 | 1 1/2 | 2 1/2-12 | 6 1/2 | 7 1/2 | 2 3/4 | 2 3/4 | 1/2 |
| BBST212TH12B2 | 2 | 2 1/2-12 | 6 5/8 | 7 5/8 | 2 7/8 | 2 3/4 | 1/2 |
| BBST212TH12B212 | 2 1/2 | 2 1/2-12 | 6 3/4 | 7 7/8 | 3 | 2 3/4 | 1/2 |
| BBST212TH12B3 | 3 | 2 1/2-12 | 7 1/4 | 8 3/8 | 3 1/4 | 3 | 5/8 |
| BBST3TH12B114 | 1 1/4 | 3-12 | 6 5/8 | 7 7/8 | 2 5/8 | 3 | 1/2 |
| BBST3TH12B2 | 2 | 3-12 | 6 7/8 | 8 1/8 | 2 7/8 | 3 | 1/2 |
| BBST3TH12B212 | 2 1/2 | 3-12 | 7 | 8 1/4 | 3 | 3 | 1/2 |
| BBST3TH12B3 | 3 | 3-12 | 7 9/16 | 8 7/8 | 3 1/4 | 3 1/4 | 5/8 |
| BBST3TH12B312 | 3 1/2 | 3-12 | 7 13/16 | 9 1/8 | 3 1/2 | 3 1/4 | 5/8 |
| BBST3TH12B4 | 4 | 3-12 | 8 1/16 | 9 3/8 | 3 3/4 | 3 1/4 | 5/8 |
